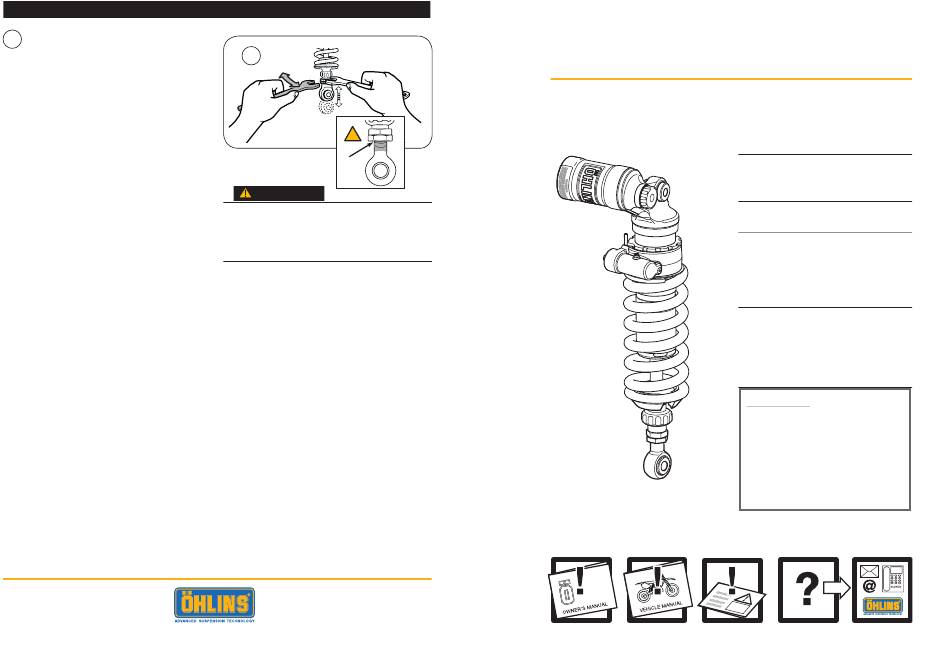

Öhlins TR 807 Mounting Instructions

ADjuSTMENTS
4
Length
We advise to remove the shock absorber
before adjusting the length. Use two
wrenches. Hold the upper nut with one
hand and at the same time loosen the
lock nut (lower nut). Turn the end eye/
bracket to the desired length.
1 turn = 1 mm length adjustment. Lock
the lock nut. Tightening torque: 40 Nm
© Öhlins Racing AB. All rights reserved.
Any reprinting or unauthorized use without the
written permission of Öhlins Racing AB
is prohibited. Printed in Sweden.
4
!
WARNING!
The adjustable end eye/bracket must not be
threaded out more than that the groove is fully
visible beneath the lock nut. This is maximum
length. After adjusting, make sure that the lock
nut is tightened.
Mounting Instruction TR 807_0 Issued 2008-06-09
This instruction and other documents
can be downloaded from
www.ohlins.com
Mounting Instructions
-
with set up data
Before installing this product, read the Öhlins Owner's Manual!
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.

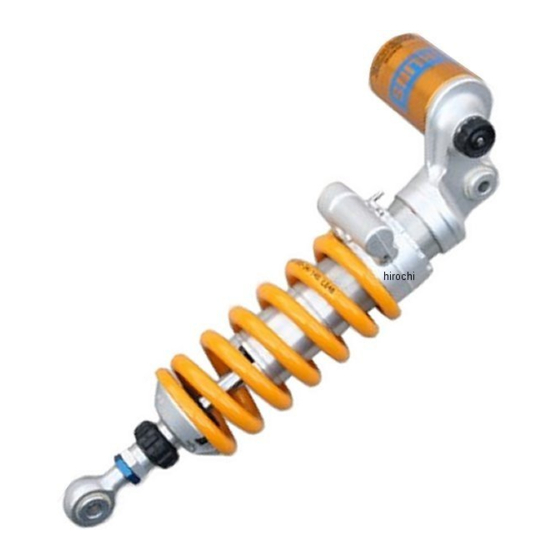

SHOCK ABSORBER TR 807
for Triumph 1050 Speed Triple
Before installing this shock absorber,
check the contents of the kit listed
below. If anything is missing, please
contact your nearest Öhlins dealer.
Kit Contents:
Part no. Pcs.
Shock absorber TR 807 1
Öhlins Sticker 00192-01 2
Memo Notes Sticker 01180-01 1
Owner's Manual 07241-02 1
During storage and transportation,
especially at high ambient temperature,
some of the oil and grease used
for assembling may leak and stain
the packaging. This is in no way
detrimental to the product, wipe off the
excessive oil/grease with a cloth.
Set-up Data
Shock absorber length 371.5 mm
Stroke 61.5 mm
Spring preload 12 mm
Compression damping 14 clicks
Rebound damping 16 clicks
Spring 01095-54
Free spring length 180 mm
(140N/mm)
