Package Contains:
1 x
1 x
Flame Fixture
6 x
Screws
2 x
1 x
Chain for Hanging
Troubleshooting
• If the unit is not functional – check main power supply is 'on' and check fuses.
• If the unit is functional but lamp does not light - lamp may require replacing.
• If after trying this solution you still have a problem contact your dealer or CHAUVET.
Contact Chauvet
USA
Tecnical Assistance: 1-800-762-1084 (954) 929-1115
E-Mail tech@chauvetlighting.com
Europe
Technical Assistance: (0113) 276-0755
E-Mail eurosales@chauvetlighting.com
Caution
Do not obstruct the air vents.
Do not touch unit or lamps while hot.
Never put any objects through the air grill on the top of the unit.
No user serviceable parts inside, please refer to CHAUVET for service.
Power Connections
The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.
Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable
In the USA & Europe, it is required that all plugs are 3-pin type i.e. with Earth/Ground connection.
In the UK, it is required that all mains plugs are fitted with 5A fuses.
Technical Specifications
Power
120V~60Hz AC
3 x 12V 5W
Lamps
Part No MR11 12v 5W
Dimensions
127 x 128 x 128mm / 5 x 7 x 7in
Weight
1.1kg / 2.5lbs
User Informtion
(Please complete for your records)
Date Purchased:
/
/
Dealer Stamp
Simulated Flame Cloth
1 x
Blue MR11 12v 5w
with Magnets
Orange MR11 12v 5w
230V~50Hz AC
3 x 12V 5W
Part No MR11 12v 5W
127 x 128 x 128mm / 5 x 7 x 7in
1.1kg / 2.5lbs
Serial No: ________________

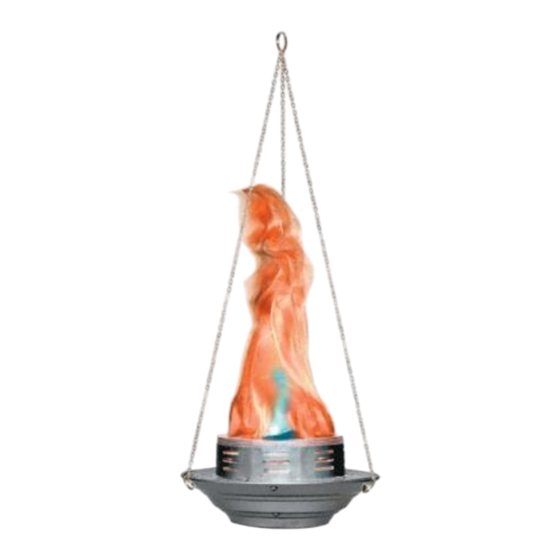

Model: CH-BOB Jr. FLAMING BOB
B B o o b b J J r r . . F F l l a a m m e e l l i i g g h h t t
CH-BOB Jr.
User Guide
Please read these instructions carefully befor use
World-wide Headquarters:
3000 North 29th Ct., Hollywood, Florida, USA, FL 33020
Tel: +1-954-929-1115 Fax: +1-954-929-5560
European Office:
Unit 18, Hunslet Trading Estate, Leeds, UK
Tel: (0113) 276-0755 Fax: (0113) 277-6675
www.ChauvetLighting.com
LS10 1BL
