Configuring Infiniium Software for InfiniiMax Ultra Series Probe Amplifiers and Probe Heads
3
130

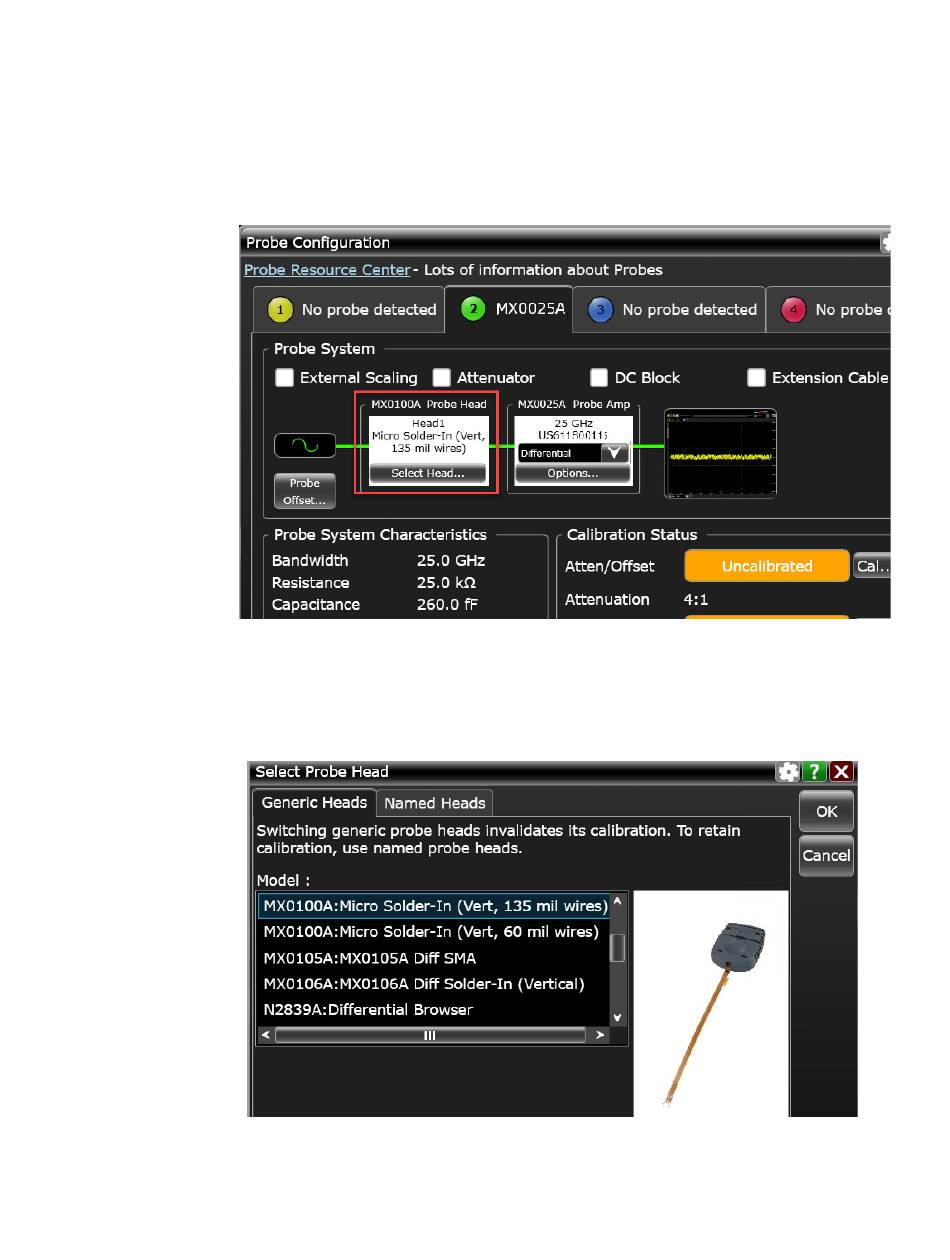

After selecting components, you can select the type of probe head(s) being
used so that the oscilloscope can apply the appropriate correction filter
(S parameter) for the probe head(s). Click Select Head... in the Probe Head block
of the diagram.
The Select Probe Head dialog box is displayed in which you can select a generic
or a named probe head. If you are planning to use more than one type of probe
head with your amplifier, it is recommended to use Named heads as probe
calibrations are preserved when you switch Named probe heads.
