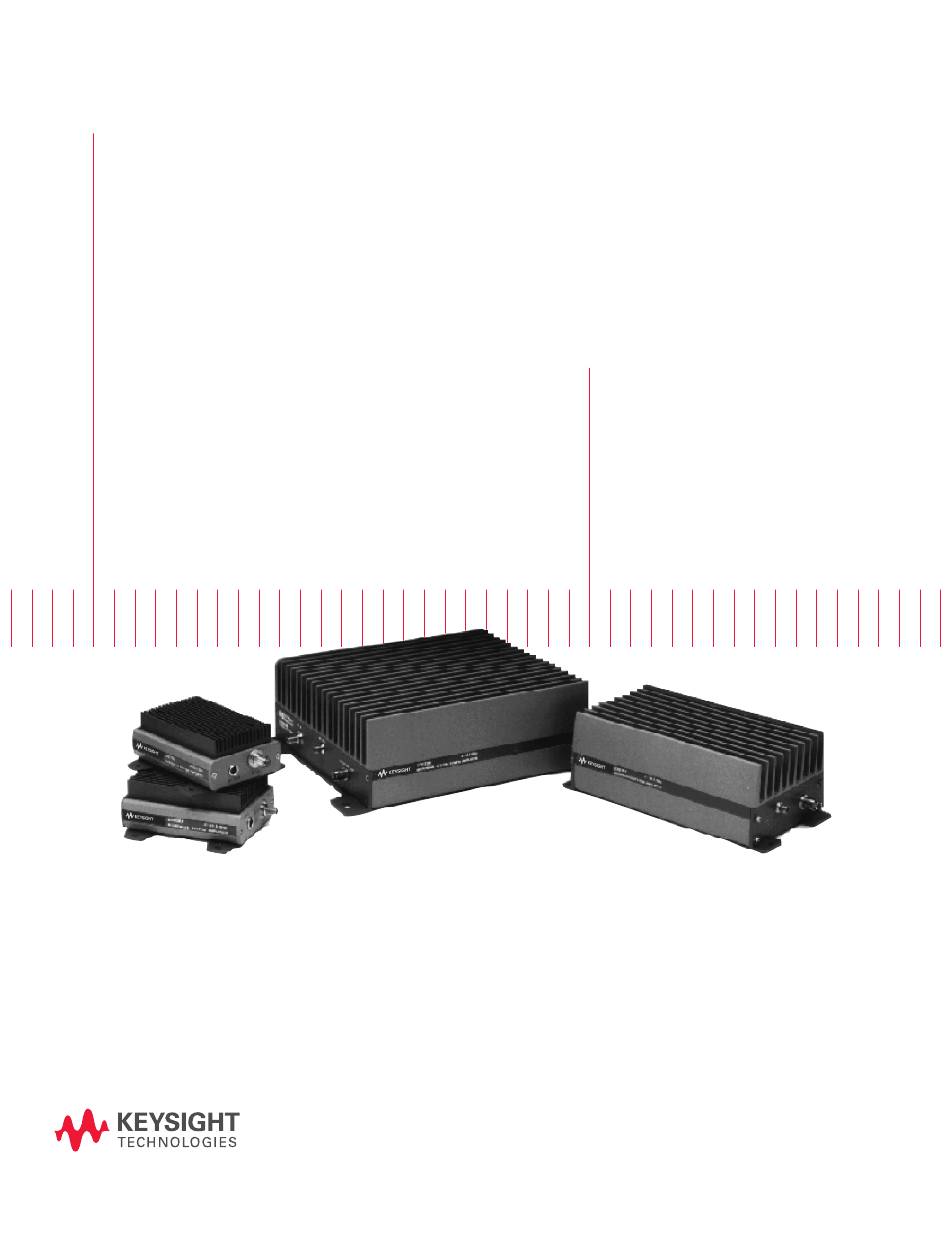

- Page 1 Keysight Technologies 83000A Series Microwave System Amplifiers Technical Overview 83006A 10 MHz to 26.5 GHz 83017A 500 MHz to 26.5 GHz 83018A 2 to 26.5 GHz 83020A 2 to 26.5 GHz 83050A 2 to 50 GHz 83051A 45 MHz to 50 GHz...
- Page 2 Introduction Features The Keysight Technologies, Inc. microwave system amplifiers are compact, off-the-shelf amplifiers designed for system designers and integrators. This family of amplifiers provides power where you need it to recover system – Ultra broadband to 50 GHz losses and to boost available power in RF and microwave ATE systems.
- Page 3 03 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Applications Small envelope size makes the Keysight family of microwave system amplifiers ideal for automated test and benchtop applications, offering the flexibility to place power where you need it.
- Page 4 04 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Improve Measurements The 83006A, 83017A, and 83051A preamplifiers increase the sensitivity and dynamic range of spectrum analyzers. Add a preamplifier to noise figure measurement systems to significantly lower system noise figure. The table below shows typical system noise figure reduction achievable with these amplifiers.
- Page 5 05 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Typical noise figure improvement Freq System noise figure (Fsys) without preamp (dB) model (GHz) NF(dB) gain (dB) 83006A 0.01–0.2 — 13.1 13.1 13.2 13.4 13.6 14.8 0.2–18 12.1 18–26.5...
-
Page 6: Product Specifications
06 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Product specifications Model number 83006A 83017A 83018A Frequency range 10 MHz–26.5 GHz 0.5–26.5 GHz 2–26.5 GHz Small signal gain 20 dB min 25 dB min 23 dB typ 1–2 GHz 27 dB min 2–20 GHz... - Page 7 07 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Product specifications (continued) Model number 83020A 83050A 83051A Frequency range 2–26.5 GHz 2–50 GHz 45 MHz–50 GHz Small signal gain 30 dB typ 1–2 GHz 21 dB min 23 dB min 30 dB min 2–20 GHz...
- Page 8 08 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Product specifications (continued) Model number 83006A 83017A 83018A *Bias voltage and current 12 ±1 Vdc at 410 ±85 mA 12 ±1 Vdc at 780 ±140 mA 12 ±1 Vdc at 1940 ±123 mA (nominal) mA –12 ±1 Vdc at 10 ±5 mA...
- Page 9 09 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Product specifications (continued) Model number 83020A 83050A 83051A *Bias voltage and current 15 ±1.5 Vdc at 3200 ±800 mA 12 ±1 Vdc at 900 ±110 mA 12 ±1 Vdc at 314 ±34 mA (nominal) –15 ±0.5 Vdc at 20 ±5 mA...
-
Page 10: Graphical Performance Data
10 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Graphical performance data... - Page 11 11 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Graphical performance data (continued)
- Page 12 12 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Amplifier outline drawings 83006-60004 dc bias cable. Cable shipped with 83006A, 83017A, 83018A, 83050A, and 83051A. 1. Dimensions in millimeters and (inches).
- Page 13 13 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Amplifier outline drawings (continued)
- Page 14 14 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Amplifier outline drawings (continued)
- Page 15 15 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Power supply outline drawings The 87421A power supply provides the dc power needed to bias the 83006A, 83017A, 83018A, 83050A, and 83051A. The 87422A power supply provides the dc power needed to bias the 83020A, plus an additional ±12V dc output.
-
Page 16: Ordering Information
16 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Ordering Information Keysight 83006A, 83017A, 83050A, and 83051A microwave system amplifiers Includes amplifier and part number 83006-60004, which is a two-meter cable with a three-pin connector on one end and three-wire leads on the other end. - Page 17 17 | Keysight | 83000A Series Microwave System Amplifiers - Technical Overview Evolving Since 1939 Evolving Since 1939 For more information on Keysight For more information on Keysight Technologies’ products, applications or Technologies’ products, applications or Our unique combination of hardware, software, services, and people can help you...
