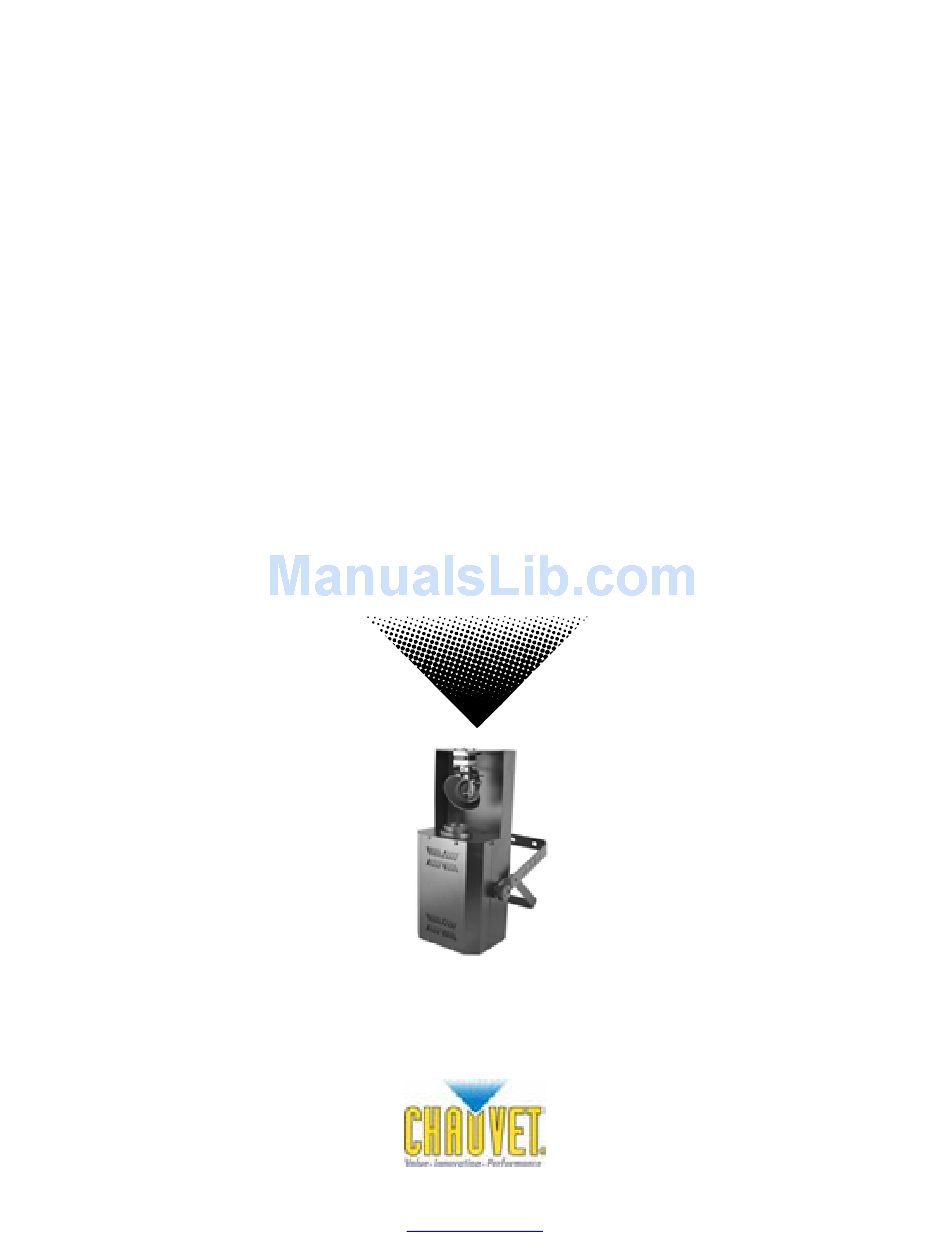

Page 1: User Manual
Intimidator™ 2.0 HTI DMX-616 USER MANUAL Intimidator™ 2.0 HTI Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2006-10-03/14:48... -
Page 2: Table Of Contents
ABLE OF ONTENT TABLE OF CONTENT................................2 BEFORE YOU BEGIN................................3 ....................................3 HAT IS INCLUDED ..................................3 NPACKING NSTRUCTIONS AC P ......................................3 OWER ..................................3 AFETY NSTRUCTIONS INTRODUCTION ................................... 4 ......................................4 EATURES DMX C ..................................4 HANNEL UMMARY .................................... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. Intimidator™ 2.0 HTI User Manual 2006-10-03/14:48... -
Page 4: Introduction
NTRODUCTION Features Intimidator™ 2.0 HTI Control Features • 5 channel DMX Intelligent Scanner • Strobing • Gobo Wheel - 14 gobos plus open - 12 metal, 2 glass - Gobo Bounce™ • Color Wheel - 11 colors plus open - (include UV purple) plus white •... -
Page 5: Product Overview
Product Overview Mirror Scanner Hanging Yoke, double bracketed for floor positioning Power & Fuse compartment Lamp access cover Dipswitches Microphone Intimidator™ 2.0 HTI DMX connectors Double bracketed yoke used for floor positions. Voltage Switch Sound Sensitivity Knob Remote Controller Input Intimidator™... -
Page 6: Setup
ETUP Lamp You will need to install a lamp prior to the initial operation of the fixture. An HTI-150W high intensity discharge lamp is included. Warning! When replacing the lamp, please wait 15 minutes after powering down to allow the unit to cool down! Always disconnect from main power prior to lamp replacement. -
Page 7: Power
Setup Lamp Alignment How-To Often, after a new installation of a lamp, you will find that there is an uneven field of light or what is referred to as a hot spot. This is due to the most intense point of the lamp source not being positioned optimally within the reflector. -
Page 8: Mounting
Setup Mounting ORIENTATION This fixture may be mounted in any position provided there is adequate room for ventilation. R IG G IN G Hanging Clamp It is important never to obstruct the fan or vents pathway. Mount the fixture using, a suitable “C” or “O” type clamp. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. -
Page 9: Operating Instructions
PERATING NSTRUCTIONS Operating Modes • A stand-alone mode will listen to sound and run through its diverse range of built in programs. • Master/Slave mode will allow the command of up to as many units you want in a synchronized light show to the sound. - Page 10 Operating Instructions If this is your first time addressing a fixture using the DMX-512 control protocol than I suggest jumping to the Appendix Section and read the heading “DMX Primer”. It contains very useful information that will help you understand its use. Set the start address using the group of DIP switches located usually on bottom of the fixture.
-
Page 11: Easy Controller (Optional)
CA-9 Easy Controller (Optional) Stand By Mode Function Blackout LED ON: Slow Mode Pan & Tilt is sound activated but Gobo and Color wheel are static and controlled by the Function button. Tap the Function button to step through the 11 colors then once more to step to the next gobo. -
Page 12: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 13: Dmx Channel Values
Appendix DMX Channel Values Channel Value Function Strobe Gobo Stopped Adjacent gobo strobe: Slow > Fast Adjacent color strobe: Slow > Fast Adjacent color and gobo strobe: Slow > Fast Gobo Bounce™: Slow > Fast Gobo Blackout Open Gobo 1 Gobo 2 Gobo 3 Gobo 4... -
Page 14: Returns Procedure
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 15: General Troubleshooting
Remote does not work Make sure connector is firmly connected to device Stand alone mode All CHAUVET lighting fixtures featuring stand-alone functions do not require additional settings, simply power the fixture and it will automatically enter into this mode Unit wobbles when rotating Check for damages possibly incurred during shipping Intimidator™... -
Page 16: Technical Specifications
Appendix Technical Specifications WEIGHT & DIMENSIONS Length........................584.2 mm (23.0 in) Width ......................... 266.7 mm (10.5 in) Height ........................171.5 mm (6.75 in) Weight ........................9.56 Kg (21.08 lbs) POWER Switch-selectable power setting ..............115V 60 Hz or 230V 50 Hz AC input..................
