Entity – Operational Manual
key. Immediately, "P
3. Press
can now be set. Set the desired CT-Primary by pressing
then press
4. Now,the unit will reset and return into Run mode

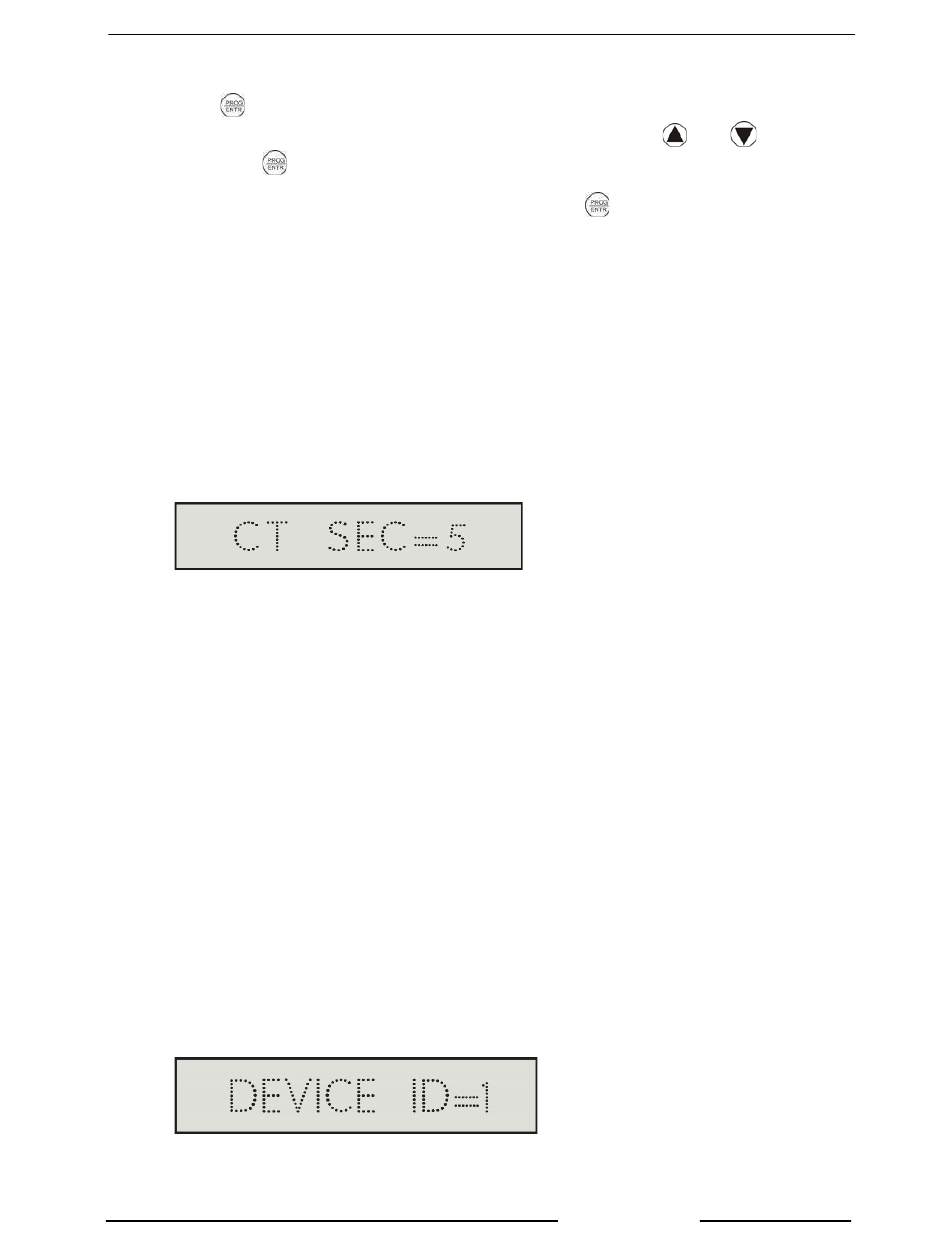

Setting CT Secondary:
The CT-Secondary can be set to either 5 or 1.
To set CT-Secondary, Proceed the following instruction:
1. In the Run Mode display,Press PROG/ENTR key for about 4 to 5 seconds.The
unit will prompt CT Primary and then,press "UP" key till you get display CT
Secondary with following display.
2. Press PROG/ENTR key again, Immediately, P starts blinking which indicates
that the parameter can now be changed. Set the parameter value by pressing
"UP" and "DOWN" keys untill the desired value is received.
3. Press PROG/ENTR key to confirm the parameter value. Hence, the unit will
restart and return into Run Mode
Setting Device Id
The unit also supports RS485 communication port and it should therefore be set the
Device ID from 1 to 255 for the communication of it.
To set Device ID, proceed the following instruction:
1. In the Run Mode display,Press PROG/ENTR key for about 4 to 5
seconds.The unit will prompt CT Primary and then,press "UP" key till you get
display Device ID with following display.
"
starts blinking which shows that CT-Primary
to confirm the setting.
[9]
and
TRINITY
keys and
Advertisement
Table of Contents
Need help?
Do you have a question about the ENTITY and is the answer not in the manual?
Questions and answers
What is device ID how can use this function
The Device ID function on the Trinity ENTITY is used for communication via the RS485 port. It allows the unit to be assigned an ID between 1 and 255 for communication purposes. To set the Device ID:
1. In Run Mode, press the PROG/ENTR key for 4 to 5 seconds until "CT Primary" appears.
2. Press the "UP" key until "Device ID" is displayed.
3. Press the PROG/ENTR key again, causing "P" to blink.
4. Adjust the parameter value using the "UP" and "DOWN" keys.
5. Press the PROG/ENTR key to confirm, which restarts the unit and returns it to Run Mode.
