TINYPRO6 – Operational Manual
U
M
SER'S
ANUAL

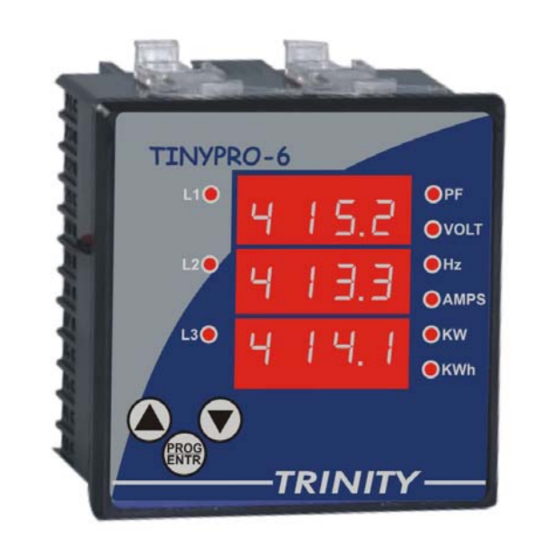

TINYPRO6
POWER METER
This document contains the latest technical information about TINYPRO6 which is a
micro-controller based Power meter. The product TINYPRO6 is sophisticated
electronic equipment, and the user is advised to read this User's Manual carefully
before attempting to install or operate the equipment.
Published on: (mention the date of publishing)
Document Version: 1.0
TRINITY
[1]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TINYPRO6 and is the answer not in the manual?

Questions and answers

Related Manuals for Trinity TINYPRO6

Summary of Contents for Trinity TINYPRO6

  • Page 1 ANUAL TINYPRO6 POWER METER This document contains the latest technical information about TINYPRO6 which is a micro-controller based Power meter. The product TINYPRO6 is sophisticated electronic equipment, and the user is advised to read this User’s Manual carefully before attempting to install or operate the equipment.
  • Page 2 In the event, the remedies above fail, Trinity’s entire liability shall be limited to a refund of the price paid for the Trinity product covered by this limited warranty. Except as provided in this written warranty, neither Trinity Energy Systems Pvt.

  • Page 3: Table Of Contents

    TINYPRO6 – Operational Manual Contents Introduction ........................ 4 The Main Features Available in This Model............4 Front View of the Unit ................... 4 Technical Specifications ................... 5 Installation and Commissioning ................6 Connection Scheme ....................9 RS485 Connection ....................10 Operational Details ....................

  • Page 4: Introduction

    TINYPRO6 – Operational Manual Introduction TRINITY has a host of low cost, easy to use individual and multifunctional meter that offers for all the basic measurement capabilities required to monitor electricity over and above basic metering. These meters also have an RS485 port supporting MODBUS-RTU protocol for integration with SCADA/EMS.

  • Page 5: Technical Specifications

    TINYPRO6 – Operational Manual Technical Specifications PARAMETERS & STATASTICS OPTIONS Volts R-N Direct Voltage Input : Up to 300V L-N Volts Y-N Burden : 0.5VA Volts B-N Secondary Voltage Input : 63.5V* Volts RY Direct Voltage Input : Up to 500V L-L...

  • Page 6: Installation And Commissioning

    TINYPRO6 – Operational Manual Installation and Commissioning The unit can be used only for either 3P4W or 3P3W according to your ordering option and requirement in your electrical installation. To install and commission for 3P4W, proceed the following instructions: 1. Push the unit into the panel and mount using the claim provided on it.
  • Page 7 TINYPRO6 – Operational Manual 8. Switch on the auxiliary supply as well as three phase supply and then, the unit will come alive in order to display such as TRINITY ESPL, CT ratio, Unit Address and Run Mode respectively. 9. Firstly, user should program the settable parameters, CT-primary and unit address for RS485 communication port.
  • Page 8 L3 such that S1 from the CT goes to the terminal marked M3. 6. Switch on the auxiliary supply as well as three phases supply and then, the unit will come alive in order to display such as TRINITY ESPL, CT ratio, unit Address and Run Mode respectively.

  • Page 9: Connection Scheme

    TINYPRO6 – Operational Manual Connection Scheme TRINITY...

  • Page 10: Rs485 Connection

    TINYPRO6 – Operational Manual RS485 Connection TRINITY [10]...

  • Page 11: Operational Details

    TINYPRO6 – Operational Manual Operational Details The Power Meter, TINYPRO6 is a versatile meter, with all the features needed to implement for a robust electrical load management system. It can be configured to monitor most electrical parameters and communication needs and, is also achieved by making field programmable parameters, as possible.

  • Page 12: Programming Mode

    TINYPRO6 – Operational Manual Programming Mode In order to operate for all the field programmable parameters, it is easy for user interface by pressing the keys such as, keys. Once the unit displays is in CT-PRIMARY, press key to move into the next programmable parameter, UNIT ADDRESS for RS485 communication.
  • Page 13 TINYPRO6 – Operational Manual To set the CT-primary, proceed the following instruction: 1. Press key for about 4 to 5 seconds on Run Mode display. 2. The unit will alter into Programming Mode display with the settable parameter, unit ADDRESS such as shown below.

  • Page 14: Run Mode

    TINYPRO6 – Operational Manual Run Mode In the run mode, the various parameters calculated by the TINYPRO6 are displayed on different pages on a three lines of 0.4” Red Seven Segment. There are ten parameters which displays in different pages with the system values.
  • Page 15 TINYPRO6 – Operational Manual Page 3 The LED indicators glow on system PF, Hz and active power (KW) which shows their values on first row, second row and third row displays respectively. Page 4 The LED indicator glows on Total Active Energy (KWh) which shows its system value on display.

  • Page 16: Freezing And Unfreezing The Displays

    TINYPRO6 – Operational Manual Page 5 The LED indicator glows on VOLT with respect to L1, L2 and L3 which shows individual phase to neutral voltage of R-Y-B on first row, second row and third row display respectively. Freezing and unfreezing the displays...

  • Page 17: Communication

    UNIT CONNECTED TO RS485 PORT The industrial standard RS-485 communication port option is also available in TINYPRO6. This option makes it possible for a user to select TINYPRO6 to provide power and energy information into a variety of existing or new control systems and communication networks.

  • Page 18: Appendix

    TINYPRO6 – Operational Manual Appendix 3 phase R phase Y phase B phase 3000-3019 3030-3049 3060-3079 3090-3109 Reserved 3030-KWh Reserved Reserved X100 3002-KW Reserved Reserved Reserved X100 Reserved Reserved Reserved Reserved X100 3006-PF 3036-Hz Reserved Reserved X1000 3008-Avg.VLL 3038-Vry 3068-Vyb...

  • Page 19: Ordering Options

    TINYPRO6 – Operational Manual Ordering Options TINYPRO6 can be ordered with the following options according to your requirements. TINYPRO6 Power Meter Technical Options Specification Installation 3P4W installation 3P3W installation For H.T application PT-Primary…………..…KV. ( only if meter is to PT-secondary…….…….V.
  • Page 20 TINYPRO6 – Operational Manual P.O No. : ………………………………………………………………… Customer : ………………………………………………………………… Sr. No. : ………………………………………………………………… Result of Test : ………………………………………………………………… Remarks : ………………………………………………………………… Test engineer : ………………………………………………………………… Date : ………………………………………………………………… TRINITY [20]...
