Tinypro3 – Operational Manual
U
M
SER'S
ANUAL

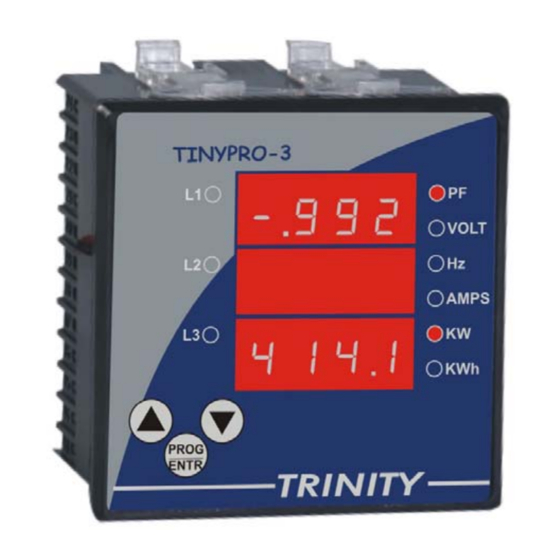

TINYPRO3
POWER METER
This document contains the latest technical information about TINYPRO3 which is a
micro-controller based Power meter. The product Infinity is sophisticated electronic
equipment, and the user is advised to read this User's Manual carefully before
attempting to install or operate the equipment.
Published on: (mention the date of publishing)
Document Version: 1.0
TRINITY
[1]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TINYPRO3 and is the answer not in the manual?

Questions and answers

Related Manuals for Trinity TINYPRO3

Summary of Contents for Trinity TINYPRO3

  • Page 1 ANUAL TINYPRO3 POWER METER This document contains the latest technical information about TINYPRO3 which is a micro-controller based Power meter. The product Infinity is sophisticated electronic equipment, and the user is advised to read this User’s Manual carefully before attempting to install or operate the equipment.
  • Page 2 In the event, the remedies above fail, Trinity’s entire liability shall be limited to a refund of the price paid for the Trinity product covered by this limited warranty. Except as provided in this written warranty, neither Trinity Energy Systems Pvt.

  • Page 3: Table Of Contents

    TINYPRO3 – Operational Manual Contents Introduction ........................ 4 The Main Features Available in This Model............4 Front View of the Unit ................... 4 Technical Specifications ................... 5 Installation and Commissioning ................6 Connection Scheme ....................9 RS485 Connection ....................10 Operational Details ....................

  • Page 4: Introduction

    Introduction Tinypro3 is a microcontroller based power meter which measures basic parameters and displays on a red seven segment. Tinypro3 is a host of low cost, easy to use individually that offers for the basic measurement capabilities required to monitor electricity over and above basic metering.

  • Page 5: Technical Specifications

    TINYPRO3 – Operational Manual Technical Specifications PARAMETERS & STATASTICS OPTIONS Volts R-N Direct Voltage Input : Up to 300V L-N Volts Y-N Burden : 0.5VA Secondary Voltage Input : 63.5V* Volts B-N Volts RY Direct Voltage Input : Up to 500V L-L...

  • Page 6: Installation And Commissioning

    L3 such that S1 from the CT goes to terminal marked M3. 6. Switch on the auxiliary supply as well as three phase supply and then, the unit will come alive in order to display such as TRINITY ESPL, CT ratio, Unit Address and Run Mode respectively.
  • Page 7 TINYPRO3 – Operational Manual 7. Firstly, user should program the settable parameters, CT-primary and unit address for RS485 communication port. (Refer Operational Details in the next section). 8. Now the unit is ready for operation. TRINITY...
  • Page 8 M3. 5. Switch on the auxiliary supply as well as three phases supply and then, the unit will come alive in order to display such as TRINITY ESPL, CT ratio, unit Address and Run Mode respectively. 6. Firstly, user should program the settable parameters, CT-primary and unit address for RS485 communication port as required.

  • Page 9: Connection Scheme

    TINYPRO3 – Operational Manual Connection Scheme TRINITY...

  • Page 10: Rs485 Connection

    TINYPRO3 – Operational Manual RS485 Connection TRINITY [10]...

  • Page 11: Operational Details

    TINYPRO3 – Operational Manual Operational Details The Power Meter, TINYPRO3 is a versatile meter, with all the features needed to implement for a robust electrical load management system. It can be configured to monitor most electrical parameters and communication needs and, is also achieved by making field programmable parameters, as possible.

  • Page 12: Programming Mode

    TINYPRO3 – Operational Manual Programming Mode In order to operate for all the field programmable parameters, it is easy for user interface by pressing the keys such as, keys. Once the unit display is in CT-PRIMARY, press key to move into the next programmable parameter, UNIT ADDRESS for RS485 communication.
  • Page 13 TINYPRO3 – Operational Manual To set the CT-Primary, proceed the following instruction: 1. Press key for about 4 to 5 seconds on Run Mode display. 2. The unit will alter into Programming Mode display with the settable parameter, unit ADDRESS such as shown below.

  • Page 14: Run Mode

    TINYPRO3 – Operational Manual Run Mode In the run mode, the various parameters calculated by the TINYPRO3 are displayed on different pages on a three lines of 0.4” Red Seven Segment. There are three parameters which displays in different pages with the system values.

  • Page 15: Freezing And Unfreezing The Displays

    TINYPRO3 – Operational Manual The LED indicator glows on Total Active Energy (KWh) which shows its system value on first row display. Freezing and unfreezing the displays The Run Mode Displays enable to freeze and unfreeze by pressing key, and then the LED indicator will start blinking which shows that the display is frozen.

  • Page 16: Communication

    UNIT CONNECTED TO RS485 PORT The industrial standard RS-485 communication port option is also available in TINYPRO3. This option makes it possible for a user to select TINYPRO3 to provide power and energy information into a variety of existing or new control systems and communication networks.

  • Page 17: Appendix

    TINYPRO3 – Operational Manual Appendix 3 phase R phase Y phase B phase 3000-3019 3030-3049 3060-3079 3090-3109 Reserved 3030-KWh Reserved Reserved X100 3002-KW Reserved Reserved Reserved X100 Reserved Reserved Reserved Reserved 3006-PF Reserved Reserved Reserved X1000 Reserved Reserved Reserved Reserved...

  • Page 18: Ordering Options

    TINYPRO3 – Operational Manual Ordering Options TINYPRO3 can be ordered with the following options according to your requirements. TINYPRO3 Power Meter Technical Options Specification 3P4W installation Installation 3P3W installation For H.T PT-Primary…………..…KV. application PT-secondary…….…….V. ( only if meter is to...
  • Page 19 TINYPRO3 – Operational Manual P.O No. : ………………………………………………………………… Customer : ………………………………………………………………… Sr. No. : ………………………………………………………………… Routine function tests conducted relevant standards Specifications/Literature/O & M Manual. Traceability: tested against "MTE" Standard Model PRS400.3 having basic accuracy of 0.02% traceable upto International Standards derived using appropriate ratio techniques.
