Entity – Operational Manual
Communication

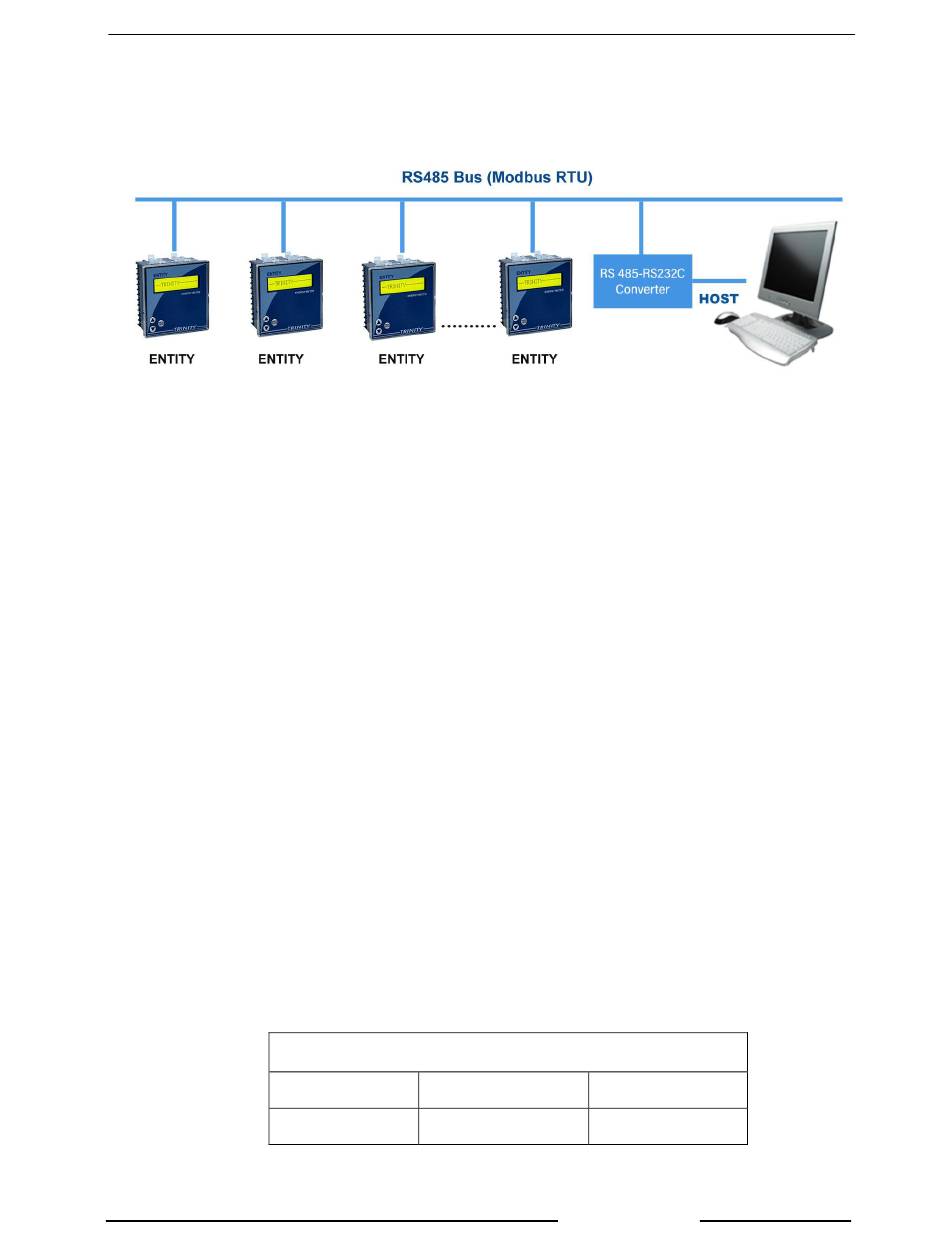

RS485 CONNECTION
The industrial standard RS-485 communication port option is also available ENTITY.
This option makes it possible for a user to select ENTITY to provide power and
energy information into a variety of existing or new control systems and
communication networks such as EMS/PLC/SCADA.
Modbus RTU on RS485 Port
In order to download live data for the various system parameters, user can use
RS485 connecting to SCADA or EMS software. ENTITY supports an RS485
port with MODBUS-RTU protocol. The station ID for every meter is site
selectable. The data which can be read using MODBUS query # 3 (Read Holding
Registers) is provided in an address map, with the applicable multiplication factors,
vide Appendix.
Communication line parameters: 9600/8/N/1.
The register map is described below. All addresses are in decimal. Parameter is
Unsigned long format. If illegal address is sent in the query or the host tries to
read more than 2 bytes of data in one query, exception message is generated.
The parameters name, address and multiplication factor are also mentioned.
Appendix
ENTITY ADDRESS MAP
Address
Parameter
MF
3030
KWh
X100
TRINITY
[11]
Advertisement
Table of Contents
Need help?
Do you have a question about the ENTITY and is the answer not in the manual?
Questions and answers
What is device ID how can use this function
The Device ID function on the Trinity ENTITY is used for communication via the RS485 port. It allows the unit to be assigned an ID between 1 and 255 for communication purposes. To set the Device ID:
1. In Run Mode, press the PROG/ENTR key for 4 to 5 seconds until "CT Primary" appears.
2. Press the "UP" key until "Device ID" is displayed.
3. Press the PROG/ENTR key again, causing "P" to blink.
4. Adjust the parameter value using the "UP" and "DOWN" keys.
5. Press the PROG/ENTR key to confirm, which restarts the unit and returns it to Run Mode.
