SBC84820 Series Quick Installation Guide

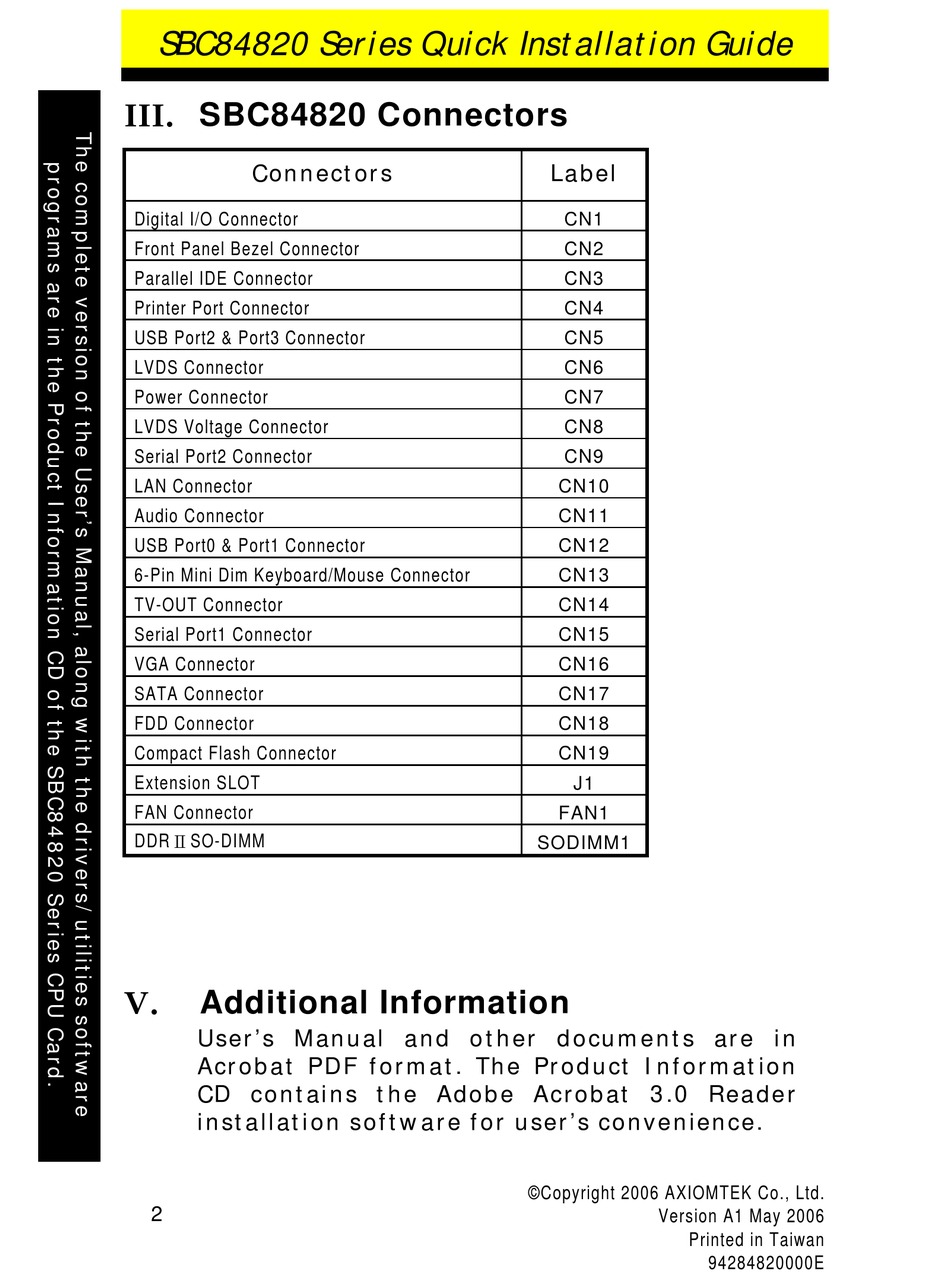

III. SBC84820 Connectors
Connectors
Digital I/O Connector
Front Panel Bezel Connector
Parallel IDE Connector
Printer Port Connector
USB Port2 & Port3 Connector
LVDS Connector
Power Connector
LVDS Voltage Connector
Serial Port2 Connector
LAN Connector
Audio Connector
USB Port0 & Port1 Connector
6-Pin Mini Dim Keyboard/Mouse Connector
TV-OUT Connector
Serial Port1 Connector
VGA Connector
SATA Connector
FDD Connector
Compact Flash Connector
Extension SLOT
FAN Connector
DDRⅡSO-DIMM
V.

Additional Information

User's Manual and other documents are in
Acrobat PDF format. The Product Information
CD contains the Adobe Acrobat 3.0 Reader
installation software for user's convenience.
2
Label
CN1
CN2
CN3
CN4
CN5
CN6
CN7
CN8
CN9
CN10
CN11
CN12
CN13
CN14
CN15
CN16
CN17
CN18
CN19
J1
FAN1
SODIMM1
©Copyright 2006 AXIOMTEK Co., Ltd.
Version A1 May 2006
Printed in Taiwan
94284820000E
