Installation

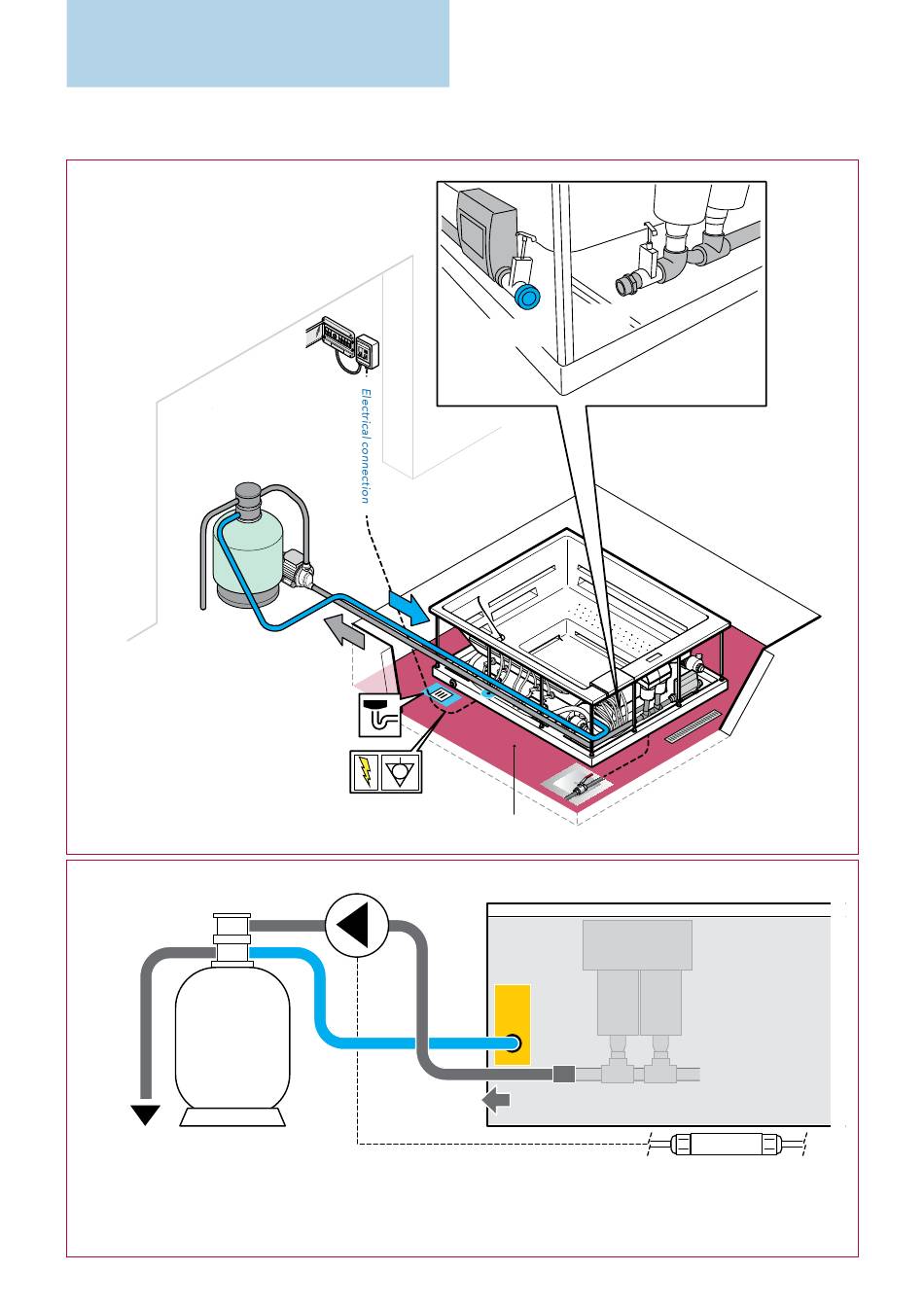

ArrAngEMEnT For ConnECTIon To An oPTIonAl ouTDoor SPA PACk
The circulator must be
installed according to
the characteristics of the
domestic system (head,
length, etc...) and the water
content (in litres)
F
230v: circulator control cable
ouT:
water outlet
In:
water inlet
room for
the electrical
connections
O U
T
I N
In:
water
inlet
ouT: water
outlet
drain
PR
Pr:
recirculation pump
F:
filter
C:
control unit
EN
IN
OUT
Technical
inspection port
C
IN
230V
11
Muse GP
minipool
Inlet connection:
1"1/4 female
outlet connection:
1"1/4 female
CP
