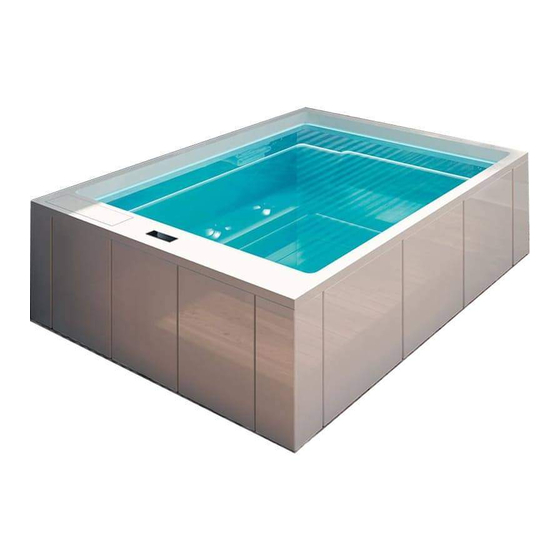

- Page 1 Muse - Maya - Wave Installation manual...
- Page 2 The installation of this minipool is simple and immediate, however we advise you to read this manual carefully before installing it. The Treesse team is always available for any information or request for assistance that may be required during installation.
-
Page 3: Table Of Contents
Contents Safety instructions __________________________________________4 _________________________________________________4 EXPLANATION OF PICTOGRAMS Preliminary operations ______________________________________5 PREPARATIONS AND CHOICE OF POSITION _________________________________________ 5 CHECKING MINIPOOL INTEGRITY __________________________________________________ 5 OUTDOOR INSTALLATION __________________________________________________________________ 5 INDOOR INSTALLATION ____________________________________________________________________ 5 Transport and position ______________________________________6 MOVING _________________________________________________________________________ 6 POSITIONING _____________________________________________________________________ 7 TEMPORARY POSITIONING _________________________________________________________________ 7 POSITIONING IN THE PLANNED LOCATION __________________________________________________ 7 Installation _________________________________________________8... -
Page 4: Safety Instructions
Safety instructions Muse - Maya - Wave minipool Read this guide carefully before installing When installing the minipool, always the appliance, and conserve this booklet use personal protective equipment with care for any future consultation of users. (e.g., gloves, safety shoes, etc.) If you do not understanding something, contact the manufacturer for an explanation. -
Page 5: Preliminary Operations
Preliminary operations Muse - Maya - Wave minipool PREPARATIONS AND CHOICE More information OF POSITION OUTDOOR INSTALLATION The pre-installation sheet supplied at the time of purchase provides all the information Preparations: necessary for a correct preparation of the To run the electric cables from the main electrical panel installation environments. -
Page 6: Transport And Position
Transport and position Muse - Maya - Wave minipool MOVING To move the minipool to the place of installation a suitable lifting device (e.g., pallet jack) is required. As an alternative, provide for the availability of eight people. If the installation is indoor, before moving the minipool make sure that it can easily pass through the doors and hallways to reach the desired place of installation. -
Page 7: Positioning
Transport and position Muse - Maya - Wave minipool POSITIONING TEMPORARY POSITIONING The installation of the minipool should be done immediately upon receipt. In any case, once unpacked, if it is necessary to temporarily place it on a surface awaiting the installation,... -
Page 8: Installation
Muse - Maya - Wave minipool DESCRIPTION OF MAIN COMPONENTS MUSE Control Panel Recirculation pump Paper filter Electric pump 1 Electric pump 2 (optional on MUSE) Electronic control units 2 x Blowers (optional) Heater Drain tap 10 Ozone Filter compartment 12 Pillows... -
Page 9: Connections Required
Installation Muse - Maya - Wave minipool CONNECTIONS REQUIRED To be used, the minipool only requires an electrical connection (power supply). Room for the electrical Also prepare an electrical and plumbing connections connection to an exchanger (optional - if provided) - see following page. - Page 10 Installation Muse - Maya - Wave minipool CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED) Room for the electrical connections incoming hot domestic water OUT: outgoing cold water Technical inspection port BL 1 EVclv Cromo 230V~ 230V 230V heater/exchanger control cable...
-
Page 11: Water Supply
Installation Muse - Maya - Wave minipool WATER SUPPLY More information WATER HARDNESS It is recommended to use ONLY tap water. If this Water hardness (TH) is determined by the total content is not possible refer to the "more information"... -
Page 12: Cleaning The Paper Filter
Installation Muse - Maya - Wave minipool CLEANING THE PAPER FILTER Cleaning/replacing the paper filter depends on how often the minipool is used. In general, rinse the cartridge every 2-3 weeks with clean water to remove hair and other foreign substances. Be careful to clean well between the folds of the filter. -
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS The Treesse minipools are built in compliance with European laws (EN 60 335-2-60) and are tested during production to ensure the safety of the installer and user. The connection must be made by an experienced, qualified electrician. -
Page 14: Safety Zone
Installation Muse - Maya - Wave minipool SAFETY ZONE Local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surrounding the minipool for a distance of at least 60 cm and a height of 230 cm. -
Page 15: First Run
First run Muse - Maya - Wave minipool FILLING THE MINIPOOL Perform a preliminary cleaning of the minipool using a Manual filling with a garden hose bit of water and a mild detergent. Do not use cloths or cleaners that are abrasive, aggressive or that contain solvents because they could irreparably damage the surface of the minipool. -
Page 16: First Run
Once you have selected a fixed colour, to return to the Pressing the 3 key activates: automatic sequence you must turn off and reactivate (MUSE bathtub - optional) the lymphodraining chaise the function. longue whirlpool in the same way as described above. -
Page 17: Alarms
Muse - Maya - Wave Alarms minipool If any alarms appear during initial startup, read the instructions provided in the following table. If the solution is not possible, immediately contact the Manufacturer to request technical support. In the meantime, do not try to repair or use the minipool but rather disconnect it from the electricity and water supplies. - Page 18 Muse - Maya - Wave Alarms minipool PROBLEM POSSIBLE CAUSE SOLUTION Some component is probably not fully Check the tightness or replace the Water leaks tightened or the seals are worn. seals. Most likely the pH of the water supply Use disinfectants.
-
Page 19: Decorative Panels
Decorative panels Muse - Maya - Wave minipool Mount the wood or laminate resin panels as shown in the figures below. -
Page 20: Covering
Under these conditions or when not used, advise the owner to use a fixed or mobile cover to protect the minipool (we recommend the optional Treesse covers). In addition to preserving the surfaces, the cover will keep the water hot and protected against falling leaves and other outdoor debris. - Page 21 Notes Notes...
- Page 23 Maximum care has been paid to guarantee the accuracy of this manual. The Manufacturer reserves the right to modify the equipment or the documentation at any time, without notice. Therefore there might be small differences between this manual and the product you have received: we apologise in advance for any inconvenience. The total or partial reproduction of this manual without the Manufacturer's consent is prohibited.
- Page 24 www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223 info@gruppotres.it...
