treesse Muse Installation Manual page 10

Installation

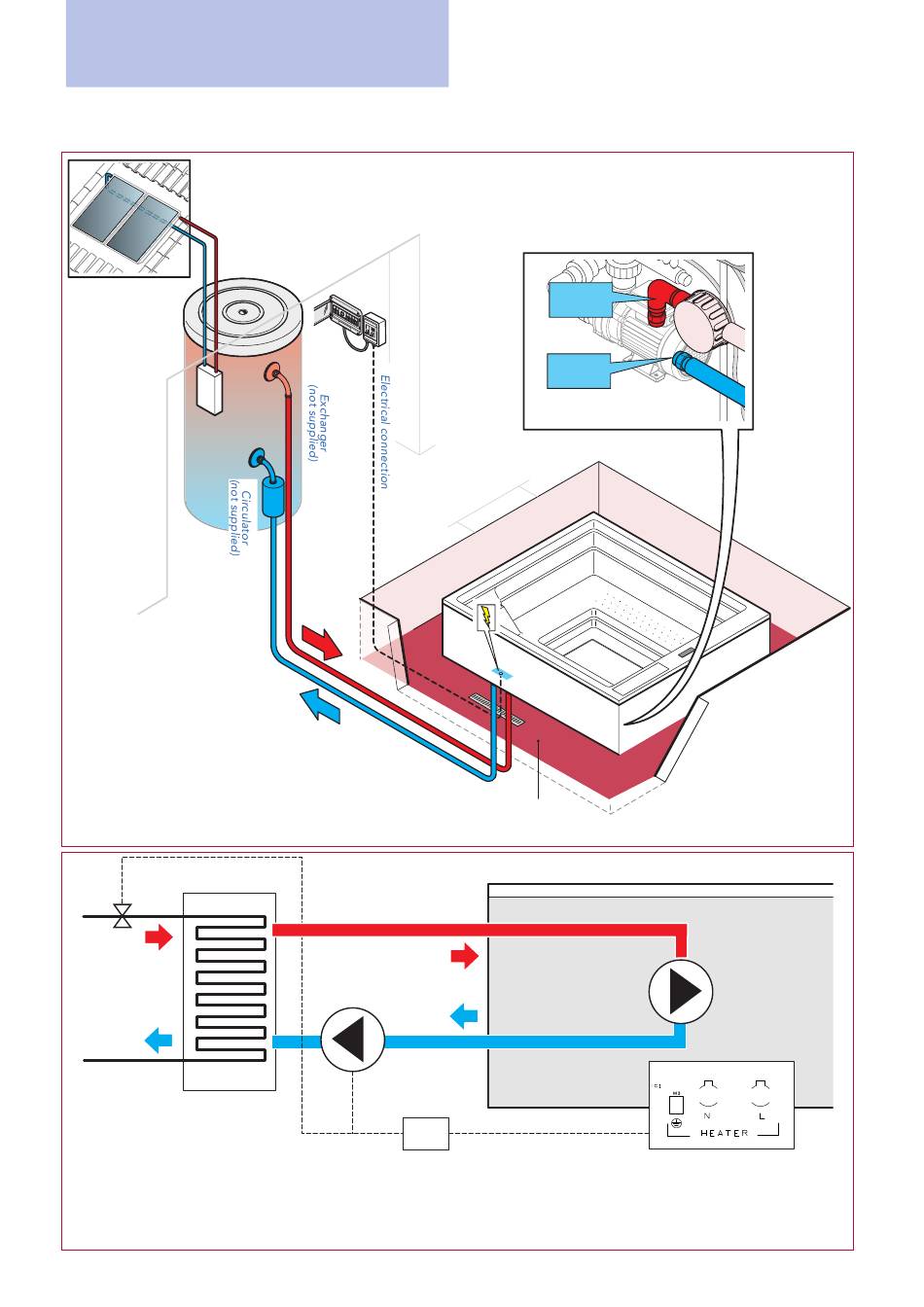

CONNECTION TO AN OPTIONAL EXTERNAL EXCHANGER (NOT SUPPLIED)
EV
S
230V
heater/exchanger control cable
C:
switch (recommended)
OUT:
outgoing cold water
Room for
the electrical
connections
I N
O U
T
IN:
incoming
hot domestic
water
OUT: outgoing cold
water
P2
in
BL 1
P
BL2
out
C
P:
circulator (not supplied)
PR:
recirculation pump
S:
exchanger (not supplied)
Muse - Maya - Wave
EN
IN
OUT
Technical
inspection
port
Cromo
230V~
230V
10
minipool
+ -
EVc EVs EVclv
PR
HTR
