Champion Model I 66 Specifications

44" (1188) single tank with 22"(559) prewash high-temperature rack conveyor
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
STANDARD FEATURES
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Standard vertical opening 20-3/4" [527]
• Wide 15-1/2" [394] and 26" [660] leakproof
doors, internally-fitted
• Front enclosure panels
• Stainless steel heavy-gauge construction,
including base and feet
• Stainless steel pumps and impellers
• Prewash pump 1 Hp motor
• Wash pump 2 Hp motor
• Electric tank heat
• Automatic tank fill
• 40°F rise booster
• Low-water tank heat protection
• Energy/rinse saver device
• Anti-jam conveyor drive system
• Convenient top-mounted controls
• Common utility connections
• Pressure regulator valve (PRV)
• Door safety switch
(1M) 5/05
Printed in U.S.A.
Project
Item No.
Quantity

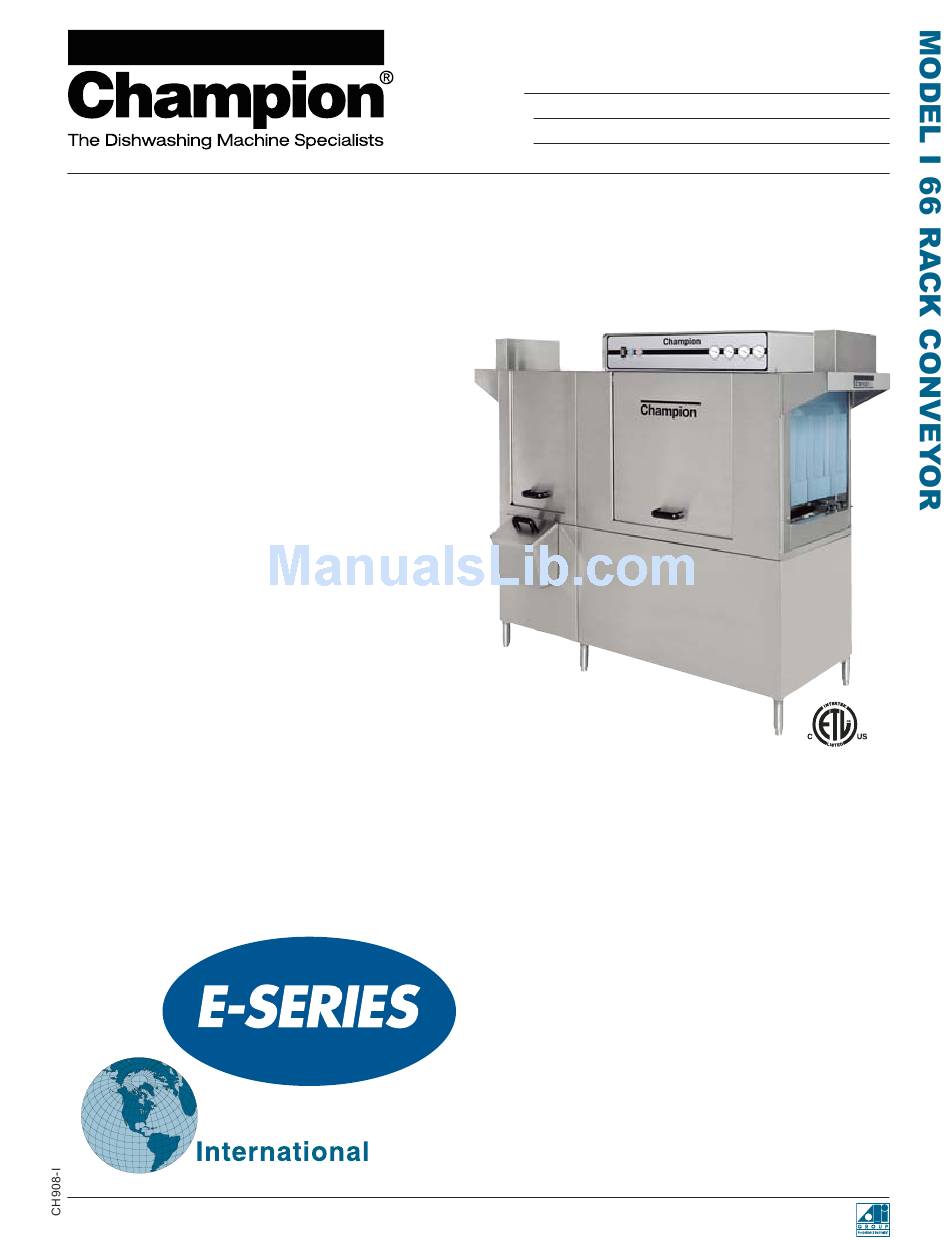

Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model I 66 high
temperature rack conveyor dishwashing machine
with 22" [559] prewash. Constructed of Type 304
stainless steel and measuring 66" [1676] long with
20-3/4" [527] vertical opening. Features top
mounted control cabinet; upper and lower one-
piece stainless steel spray arm assemblies,
external prewash scrap basket. Large 15-1/2" [394]
prewash and 26" [660] wash front access doors
with safety switch. Anti-jam conveyor drive system.
Dimensions shown in inches and [millimeters]
MODEL I 66
44" [1118] Single Tank with
22" [559] Prewash High-Temperature
Rack Conveyor Dishwashing Machine
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115 USA
Tel: 800/532-8591
www.championindustries.com
Fax: 336/661-1979
