STANDARD FEATURES
• One-piece cast stainless steel upper
& lower spray arm assemblies
• Standard vertical opening 20-3/4" [527]
• Wide 26" [660] leakproof doors,
internally-fitted
• Front enclosure panels
• Stainless steel heavy-gauge construction,
including base and feet
• Stainless steel pump and impeller
• Wash pump 2 Hp motor
• Electric tank heat
• Automatic tank fill
• 40°F internal booster
• Low-water tank heat protection
• Energy/rinse-saver device
• Anti-jam conveyor drive system
• Convenient top-mounted controls
• Common utility connections
• Pressure regulator valve (PRV)
• Door safety switch
(1M) 3/06
Printed in U.S.A.
Project
Item No.
Quantity

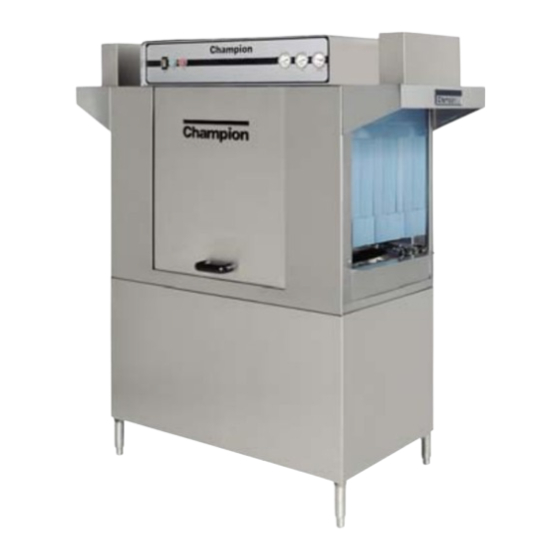

Shown with Vent Cowl
and Damper Option
SPECIFIER STATEMENT
Specified unit will be Champion Model I 44 high
temperature rack conveyor dishwashing machine.
Constructed of Type 304 stainless steel and
measuring 44" [1118] long with 20-3/4" [527] vertical
opening. Features top mounted control cabinet;
upper and lower one-piece stainless steel spray
arm assemblies. Large 26" [660] wash door with
front access and safety switch. Anti-jam conveyor
drive system.
Dimensions shown in inches and [millimeters]

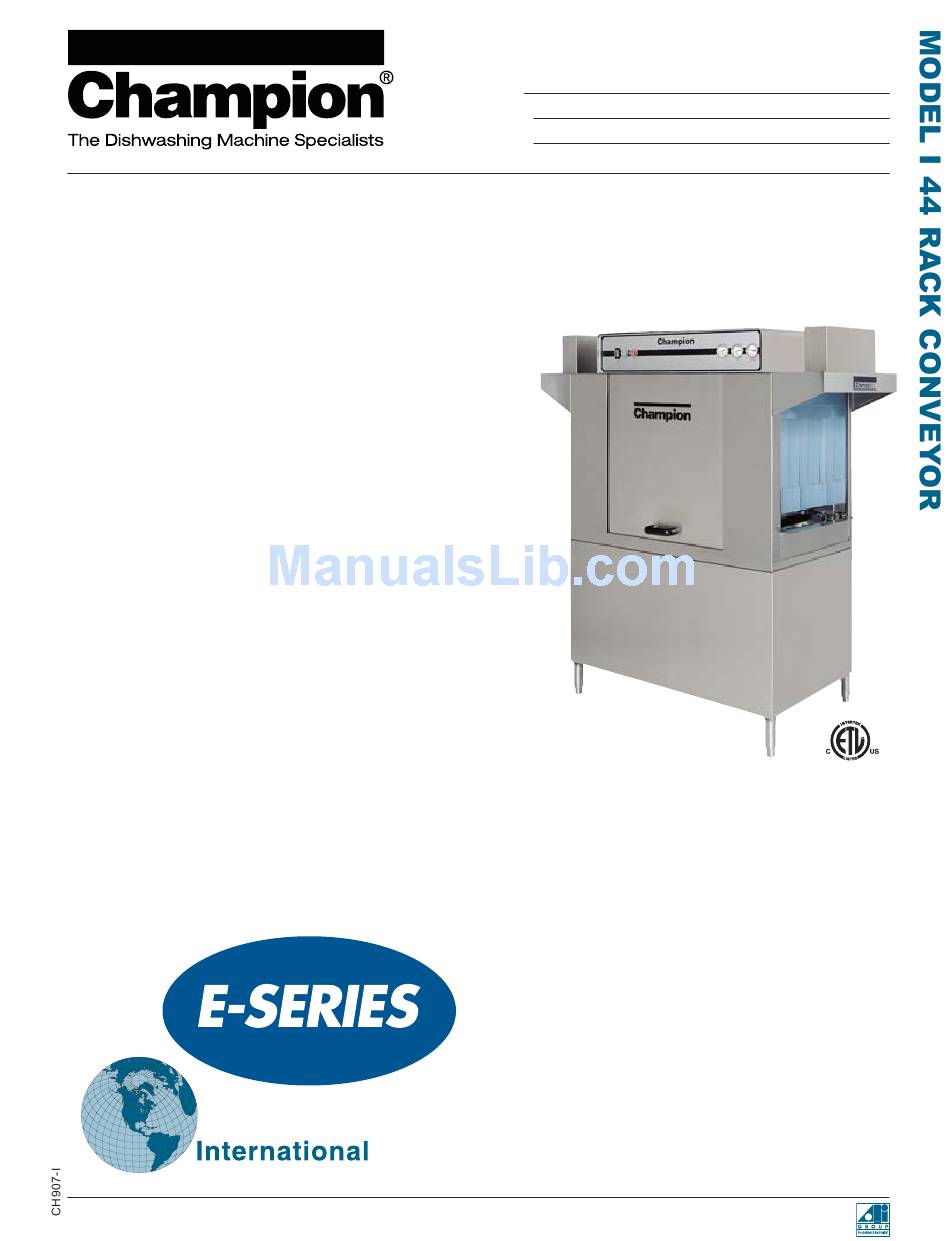

MODEL I 44
44" [1118] Single Tank
High-Temperature
Rack Conveyor Dishwashing Machine
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115 USA
Tel: 800/532-8591
www.championindustries.com
Fax: 336/661-1979
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Champion Model I 44
Summary of Contents for Champion Model I 44
- Page 1 Rack Conveyor Dishwashing Machine Shown with Vent Cowl and Damper Option SPECIFIER STATEMENT Specified unit will be Champion Model I 44 high temperature rack conveyor dishwashing machine. Constructed of Type 304 stainless steel and measuring 44" [1118] long with 20-3/4" [527] vertical opening.
- Page 2 • Conductive heat transfer to wash tank • Stainless steel booster heater lasts the life of the machine • Integrated design saves floor space www.championindustries.com MODEL I 44 Rack Conveyor Dishwashing Machine Wall-of-Water One-Piece Cast Stainless Spray Pattern Steel Spray Assembly...
- Page 3 Suggested Table Construction Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 USA • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 60"...
- Page 4 Suggested Table Construction Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 USA • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com 60"...
-
Page 5: Specifications
220/60/3 380/50/3 Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 USA • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com... -
Page 6: Options And Accessories
Vent fan control Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice. Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 USA • 800/532-8591 • Fax: 336/661-1979 • www.championindustries.com Model MRA 90 90°...
