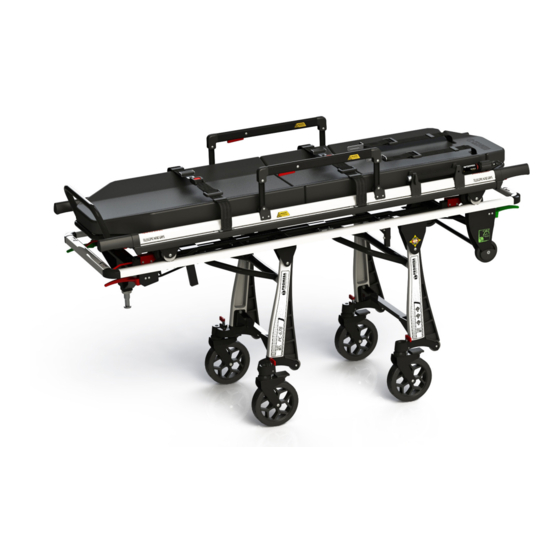

- Page 1 USER GUIDE STRETCHER // PC-678 Review 12/18...
-
Page 3: Table Of Contents
Telescopic hand grips PC-678 & PC-678/H 04.6 Folding handrails set PC-678 & PC-678/H 04.7 Folding pole set PC-678 & PC-678/H 04.8 Standard rotating leg set with brake PC-678 04.9 Standard rotating leg set with brake PC-678/H 04.10 Inverted rotating leg set with brake PC-678 04.11... -
Page 5: User Manual // Stretcher Pc
USER MANUAL // STRETCHER PC-678 Review 12/18 INTRODUCTION 01.1 Using this manual This manual provides using and maintenance instruc- tions of the product, as well as the way of fixing minor faults that could appear. It is recommended before the operation of the product to read carefully this manual in order to avoid damages caused by a misuse. -
Page 6: Technical Data Sheet
USER MANUAL // STRETCHER PC-678 Review 12/18 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PC-678 LENGHT 1920 mm WEIGHT TROLLEY 40 Kg WIDTH 580 mm WEIGHT STRETCHER 22 Kg HEIGHT 925 / 990 mm INTERMEDIATE STOP 600-680 mm MAX. - Page 7 USER MANUAL // STRETCHER PC-678 Review 12/18 INTRODUCTION 01.2 Technical data sheet MEASURES AND FEATURES // PC-678/H LENGHT 1920 mm WEIGHT TROLLEY 42 Kg WIDTH 580 mm WEIGHT STRETCHER 22 Kg HEIGHT 1025 / 1090 mm MAX. LOAD 250 Kg MAX.
-
Page 9: Transporting And Unpacking
USER MANUAL // STRETCHER PC-678 Review 12/18 INSTALATION 02.1 Transporting and unpacking First remove the packaging carefully to prevent dama- ge to the exterior of the stretcher. 1. Transporting · Always fix the load, if piling up is necessary always follow the scheme shown. -
Page 11: Elements
USER MANUAL // STRETCHER PC-678 Review 12/18 OPERATING 03.1 Elements PC-678 & PC-678/H Folding handrails Belts with front push-button Legs system action by rods Rear leg operating lever Front leg operating lever Third anchor point Rear rotating leg brake Front rotating leg brake... - Page 12 USER MANUAL // STRETCHER PC-678 Review 12/18 OPERATING 03.1 Elements PC-678 & PC-678/H...
-
Page 13: Commands
USER MANUAL // STRETCHER PC-678 Review 12/18 OPERATING 03.2 Commands PC-678 & PC-678/H 01. REAR LEGS UNLOCKING LEVER Green, located on the stretcher’s left side. The legs of the rear side will unlock by operating the lever in order to place the stretcher in loading and unloading position. -
Page 14: Loading And Unloading Operation
USER MANUAL // STRETCHER PC-678 Review 12/18 OPERATING 03.3 Loading and unloading operation LOADING · Open the loading ramp of the bench/rail (A) · Place the stretcher head-on in relation to the loading axle of the bench (A) · Approach the stretcher until the front wheels have contact with the loading ramp (B) ·... -
Page 15: Pushrod
USER MANUAL // STRETCHER PC-678 Review 12/18 OPERATING 03.4 Pushrod To adjust the tension of the drive cables, the stretcher has three pushrod systems for its regulation: 1. HANDLE UNLOCKING BACK LEGS 2. HANDLE UNLOCKING FRONT LEGS 3. INTERMEDIATE STOP SHAFT... -
Page 17: General View Stretcher Pc-678
Pag. 22 Backrest set PC-678 & PC-678/H Pag. 26 Set structure PC-678 & PC-678/H Pag. 18 Inverted rotating leg set with brake PC-678 Pag. 40 Inverted rotating leg set with brake PC-678/H Pag. 38 Standard rotating leg set with brake PC-678/H Standard rotating leg set with brake PC-678 Pag. - Page 18 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.2 Set structure PC-678 & PC-678/H...
-
Page 19: Set Structure Pc-678 & Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRUCTURE PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 1.01 PC6780-02022 - PERFIL CARRO ESQUERRA 1.02 PC6170-03092 - SUBCONJUNT TRAVESSER DAVANTER 1.03 PC6700-02142 - SUBCONJUNT GATELL POSTERIOR 1.04... - Page 21 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.2 Bill of materials SET STRUCTURE PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 1.38 PC6280-01000 - CONJUNT POTA ALTA GIRATORIA BLOQUEJABLE AMB FRE 2018 1.39 PC6282-01000 - CONJUNT POTA INVERTIDA ALTA GIRATORIA BLOQUEJABLE AMB FRE 2018 1.40...
-
Page 22: Backrest Set Pc-678 & Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.3 Backrest set PC-678 & PC-678/H... - Page 23 2.28 PC6500-04090 - CONJUNT CINTURONS 10G ARNES SUPERIOR 2.29 PC6500-04110 - CONJUNT CINTURONS 10G PEUS 2.30 PC6780-00120 - FEMELLA SUBJECCIO PERFIL PC-678 2.31 PC6180-00080 - TERMINAL PERFIL ESQUERRA 2.32 PC6180-00090 - TERMINAL PERFIL DRET 2.33 PC6180-00070 - BANDA PROTECTORA CAMILLA 2.34...
- Page 25 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.3 Bill of materials BACKREST SET PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 2.35 31201061 - ARANDELA D-125 M6 CINC 2.36 31305081 - TUERCA D-985 M-8 CINC 2.37 31201081 - ARANDELA D-125 M8 CINC 2.38...
- Page 26 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.4 Bunk set PC-678 & PC-678/H...
- Page 27 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.4 Bill of materials BUNK SET PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 3.01 PC6500-06082 - SUBCONJUNT TUB RESPATLLER 3.02 PC6500-06062 - SUBCONJUNT TUB PEUS CURT 3.03 PC6500-06322 - SUBCONJUNT XAPA MOVIL LLITERA 3.04...
-
Page 28: Telescopic Hand Grips Pc-678 & Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.5 Telescopic hand grips PC-678 & PC-678/H... - Page 29 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.5 Bill of materials TELESCOPIC HAND GRIPS PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 4.01 PC6500-03310 - PERFIL MANETES EXTENSIBLES 4.02 PC6500-03320 - MANETA 4.03 PC6500-03340 - PALANCA BLOQUEJADORA 4.04...
-
Page 30: Folding Handrails Set Pc-678 & Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.6 Folding handrails set PC-678 & PC-678/H... - Page 31 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.6 Bill of materials FOLDING HANDRAILS SET PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 5.01 PC6501-04040 - SUPORT ACCIONAMENT 5.02 CASQUELL SEPARADOR L30 5.03 PC6501-04060 - SUPORT BARANA 5.04...
- Page 32 USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.7 Folding pole set PC-678 & PC-678/H...
-
Page 33: Folding Pole Set Pc-678 & Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.7 Bill of materials Folding pole set PC-678 & PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 6.01 PC6170-03480 - PORTASUERO UNIVERSAL POLE IV S03 6.02 PC6170-03500 - SUPORT BARANA PORTASUEROS UNIVERSAL 6.03... -
Page 34: Standard Rotating Leg Set With Brake Pc-678
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.8 Standard rotating leg set with brake PC-678... - Page 35 UNITS 7.01 PC6180-02012 - POTA UNIBODY GIRATORIA CAMILLA DRETA 7.02 PC6180-02022 - POTA UNIBODY GIRATORIA CAMILLA ESQUERRA 7.03 PS2500-07000 - RODA PROMEBA PERFORMANCE 200X45mm 7.04 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 7.05 PC6500-01321 - BALDA BLOQUEIG RODA POSTERIOR 7.06 PC6500-01340 - MOLLA BLOQUEJADOR POTA 7.07...
-
Page 36: Standard Rotating Leg Set With Brake Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.9 Standard rotating leg set with brake PC-678/H... - Page 37 STANDARD ROTATING LEG SET WITH BRAKE PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 8.01 PS2500-07000 - RODA PROMEBA PERFORMANCE 200x45mm 8.02 PC6270-01042 - SUPORT RODA POSTERIOR DESPLAÇADA DRETA 8.03 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 8.04 PC6500-01321 - BALDA BLOQUEIG RODA POSTERIOR 8.05...
-
Page 38: Inverted Rotating Leg Set With Brake Pc-678
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.10 Inverted rotating leg set with brake PC-678... - Page 39 UNITS 9.01 PC6180-02012 - POTA UNIBODY GIRATORIA CAMILLA DRETA 9.02 PC6501-01080 - PATI RODA DAVANTER ALT 9.03 PS2500-07000 - CONJUNT RODA PROMEBA PERFORMANCE 200x45mm 9.04 PC6275-01022 - SUPORT RODA DAVANTERA AMB BLOQUEIG 9.05 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 9.06 PC6500-01321 - BALDA BLOQUEIG RODA POSTERIOR 9.07...
-
Page 40: Inverted Rotating Leg Set With Brake Pc-678/H
USER MANUAL // STRETCHER PC-678 Review 12/18 MOUNTING AND COMPONENTS 04.11 Inverted rotating leg set with brake PC-678/H... - Page 41 INVERTED ROTATING LEG SET WITH BRAKE PC-678/H NUM. ELEMENT CODE - DESCRIPTION UNITS 10.01 PS2500-07000 - RODA PROMEBA PERFORMANCE 200x45mm 10.02 PC6270-01042 - SUPORT RODA POSTERIOR DESPLAÇADA DRETA 10.03 PC6500-01311 - CASQUELL BLOQUEIG RODA POSTERIOR 10.04 PC6500-01321 - BALDA BLOQUEIG RODA POSTERIOR 10.05...
-
Page 42: General Maintenance
USER MANUAL // STRETCHER PC-678 Review 12/18 GENERAL MAINTENANCE CLEANING WEAR AREAS It is essential to keep the equipment clean to ensure a Inspecting regularly on the system compo-nents for proper use and durability of the set. A thorough clean... -
Page 43: Legal Notices
Changes are periodically added to the information herein; these changes will be incorporated in new edi- tions of the publication. Promeba, S.L. reserves the right to make, if considered appropiate, any modification or improvement to the products described in this publication. -
Page 44: Product Warranty
Promeba, S.L. is not liable for loss or damages to pro- C. Damages or defects resulting from the use, operation ducts, this warranty or others, including economic loss or improper treatment of the product and not caused by or not assessable damage;... - Page 46 All rights reserved. Variations can be done whitout notice. Promeba, S.L. is to be considered not responsible for damages caused by the lack or the wrongness of the information here mentioned. PROMEBA, S.L. Ctra C-16 Km 59.5 · 08650 Sallent (Barcelona) · SPAIN ER-0687/1998 T.
