iBOX-V2000 Series
User Manual
Version 1.0
Published March 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iBOX-V2000 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK iBOX-V2000 Series

Summary of Contents for ASROCK iBOX-V2000 Series

  • Page 1 Series User Manual Version 1.0 Published March 2021...
  • Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at www.ASRock.com; or you may contact your dealer for further information.

  • Page 4: Table Of Contents

    Contents Chapter 1 Introduction Package Contents Product Specifications Block Diagram Chapter 2 Product Overview Front View Rear View Inside View Chapter 3 Hardware Installation How to Remove the Bottom Case How to Install the WiFi Module How to Remove the M.2 SSD and the Bracket How to Install the M.2 SSD How to Install the 2.5-inch Hard Drive How to Install the Memory Modules (DDR4)
  • Page 5 Chapter 5 UEFI Setup Utility Introduction Main Screen Advanced Screen Hardware Health Event Monitoring Screen Security Screen Boot Screen Exit Screen Chapter 6 Software Support Install Operating System Support CD Information...

  • Page 7: Chapter 1 Introduction

    Because the hardware specifications might be updated, the content of this documentation will be subject to change without notice. 1.1 Package Contents • iBOX-V2000 Series (pre-installed motherboard) • 1 x SATA 1 to 1 Power Cable • 4 x HDD Screws (M3x4) • 1 x WiFi Module Screw...

  • Page 8: Product Specifications

    1.2 Product Specifications iBOX-V2000 Barebone Series iBOX-V2000M (V2718, 8C, Max Speed up to 4.15GHz) iBOX-V2000V (V2516, 6C, Max Speed up to 3.95GHz) Chipset Memory Supports Dual Channel DDR4 3200 MHz, 2 x 260-pin SO-DIMM, Max. 64GB (32 GB per DIMM) Optional M.2 slot 2.5”HDD...
  • Page 9 Bracket included , supports 75 x 75 and 100 x 100 mm Volume 0.6L (Liters) Operating 0°C~40°C Temperature * For iBOX-V2000 Series, it is not recommended to install 2.5” HDD. If you install the 2.5” HDD, please keep the iBOX-V2000 Series in a vertical position to ensure better cooling performance.

  • Page 10: Block Diagram

    1.3 Block Diagram...

  • Page 11: Chapter 2 Product Overview

    Series Chapter 2 Product Overview This chapter provides diagrams showing the location of important components of the iBOX-V2000 Series. 2.1 Front View Description Audio(Mic-in, Line-out) 2 x USB 3.2 Gen2 Ports (Type C, supports DP1.2a display output) USB 3.2 Gen2 (Type A)

  • Page 12: Rear View

    2.2 Rear View Description COM Port Power Button 2 x USB 2.0 Port (Type A) HDMI RJ-45 (2.5G LAN)** DC-IN DisplayPort RJ-45 (1G LAN)* * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...
  • Page 13 Series * There are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port Activity / Link LED Speed LED Status Description Status Description No Link...

  • Page 14: Inside View

    2.3 Inside View Description SO-DIMM Slot SATA 3.0 Connector Mini PCIe Slot M.2 Slot Hard disk drive tray (compatible with 2.5" SATA HDD/SSD) SO-DIMM memory, hard drive and mSATA SSD are not included with this system.

  • Page 15: Chapter 3 Hardware Installation

    Series Chapter 3 Hardware Installation This chapter helps you install or remove important components. 3.1 How to Remove the Bottom Case 1. Remove the four screws on the bottom case. 2. Then lift up and remove the bottom panel.

  • Page 16: How To Install The Wifi Module

    3.2 How to Install the WiFi Module 1. Locate the WiFi Module slot on the motherboard. 2. Carefully insert the WiFi Module into the slot. 3. Tighten the screw to secure the WiFi Module to the motherboard.

  • Page 17: How To Remove The M.2 Ssd And The Bracket

    Series 3.3 How to Remove the M.2 SSD and the Bracket 1. Release the screw and carefully remove the M.2 SSD. 2. Release the screw and remove the bracket from the motherboard.

  • Page 18: How To Install The M.2 Ssd

    3.4 How to Install the M.2 SSD 1. Locate the M.2 slot on the motherboard. 2. Carefully insert the M.2 SSD into the slot. 3. Tighten the screw to secure the M.2 SSD to the motherboard.

  • Page 19: How To Install The 2.5-Inch Hard Drive

    Series 3.5 How to Install the 2.5-inch Hard Drive 1. Remove the four screws on the bottom case. Then lift up and remove the bottom panel. 2. Attach the HDD cage to the bottom panel and secure it using the four screws. Then...
  • Page 20 3. Connect the SATA Data and Power Cable to the HDD. 4. Connect the SATA Cable to the connector.
  • Page 21 Series 5. Then reinstall the bottom panel.

  • Page 22: How To Install The Memory Modules (Ddr4)

    3.6 How to Install the Memory Modules (DDR4) 1. The iBOX-V2000 Series requires DDR4 SO-DIMM. 2. For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 SO-DIMM pairs. The SO-DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.

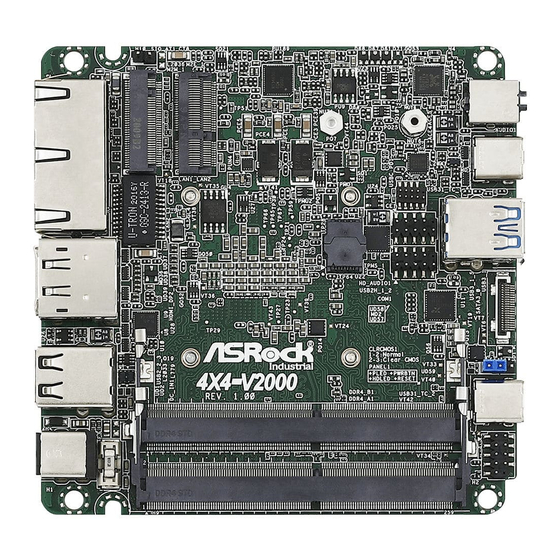

  • Page 23: Chapter 4 Motherboard

    Series Chapter 4 Motherboard 4.1 Motherboard Layout 1 : SIO_AT1 2 : M.2 Key-M Socket (M2M_1) 3 : M.2 Key-E Socket (M2E_1) 4 : Front Panel Audio Header 5 : USB2.0 Connector (USB2H_1_2) 6 : COM Port Header (RS232/422/485)

  • Page 24: Motherboard Specifications

    4.2 Motherboard Specifications Form Dimensions NUC 4.09" x 4.02" (104 x 102mm) Factor AMD Ryzen™ V2000 Series Processor Chipset System BIOS AMI SPI 128 Mbit Expansion 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and Slot CNVio for Wireless Technology Dual Channel DDR4 3200 MHz Memory Capacity...
  • Page 25 Series 2 x USB2.0 (1 x 2.54 pitch header) Internal 1 x COM (RS-232/422/485) Connector Infinion SLB9670VQ2.0 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD Storage *M.2 Key M 2280 (Supported by bracket) SATA 1 x SATA3.0 (6.0 Gb/s)

  • Page 26: Jumpers Setup

    4.3 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 27: Onboard Headers And Connectors

    Series 4.4 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! USB 2.0 Connector There is one USB 2.0...
  • Page 28 Front Panel Audio Header This is an interface for front panel audio cable that allows (9-pin HD_AUDIO1) convenient connection and (see p.17 No. 4) control of audio devices. Signal Signal Signal Signal Signal Name Name Name Name Name AGND LIN1_JD LIN2_JD 10 LIN1_L_ LIN1_R_...
  • Page 29 Series Back Side: Power Button Header (PWR_BTN3) Fan Connector +12V (FAN1) FAN_SPEED FAN_SPEED_CONTROL...

  • Page 30: Expansion Slots (M.2 Slots)

    4.5 Expansion Slots (M.2 Slots) There are 2 M.2 slots on this motherboard. M.2 for SSD: 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD. * M.2 Key M 2280 (Supported by bracket) M.2 for Wi-Fi: 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 and CNVio for Wireless.

  • Page 31: Chapter 5 Uefi Setup Utility

    Series Chapter 5 UEFI Setup Utility 5.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 32: Main Screen

    5.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 33: Advanced Screen

    Series 5.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Super IO Configuration, ACPI Configuration, USB Configuration, Trusted Computing, MCTP Configuration and Se- rial Port Console Redirection.
  • Page 34 5.3.1 CPU Configuration Cool ‘n‘ Quiet Use this item to enable or disable AMD’s Cool ‘n’ QuietTM technology. The default value is [Enabled]. Configuration options: [Enabled] and [Dis- ® abled]. If you install Windows OS and want to enable this function, please set this item to [Enabled].
  • Page 35 Series 5.3.2 Chipset Configuration Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Onboard HD Audio Select [Enabled] or [Disabled] for the onboard HD Audio feature. Verb Table Select The default value is [Combo Jack].
  • Page 36 5.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.
  • Page 37 Series 5.3.4 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Type Select Use this to select COM1 port type: [RS232], [RS422] or [RS485]. WDT Timeout Reset Use this to set the Watch Dog Timer.
  • Page 38 5.3.5 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Onboard LAN Power On Use this item to enable or disable onboard LAN to turn on the system from the power-soft-off mode.
  • Page 39 Series 5.3.6 USB Configuration Legacy USB Support Use this option to select legacy support for USB devices. There are two configuration options: [Enabled] and [UEFI Setup Only]. The default value is [Enabled]. Please refer to below descriptions for the details of these two options: [Enabled] - Enables support for legacy USB.
  • Page 40 5.3.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 41: Hardware Health Event Monitoring Screen

    Series 5.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage.

  • Page 42: Security Screen

    5.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 43: Boot Screen

    Series 5.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature.
  • Page 44 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable unless you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.

  • Page 45: Exit Screen

    Series 5.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard...

  • Page 46: Chapter 6 Software Support

    Click on a specific item then follow the installation wizard to install it. 6.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
