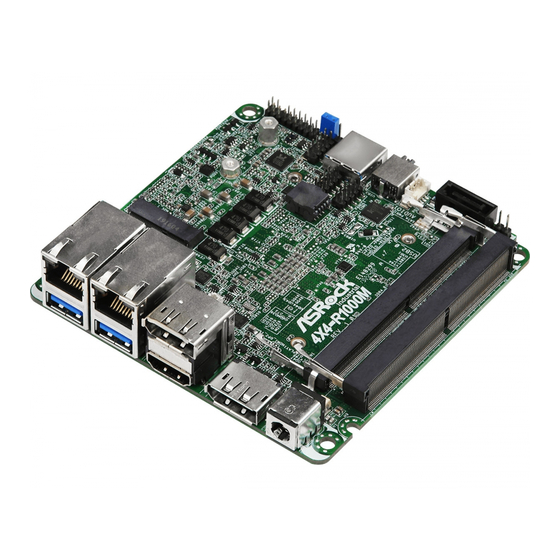

ASROCK Industrial 4x4 R1000 Manual Of Installing

Bracket and extend board for m.2 2280 ssd

The Guide of Installing Bracket and Extend Board

for M.2 2280 SSD

Model: 4x4 R1000 and iBox-R1000

Requirements: ASRI Extend Board, M.2 2280 bracket and screw accessory

How to Install the Bracket

Please refer to the following steps to install the bracket for M.2 2280 SSD.

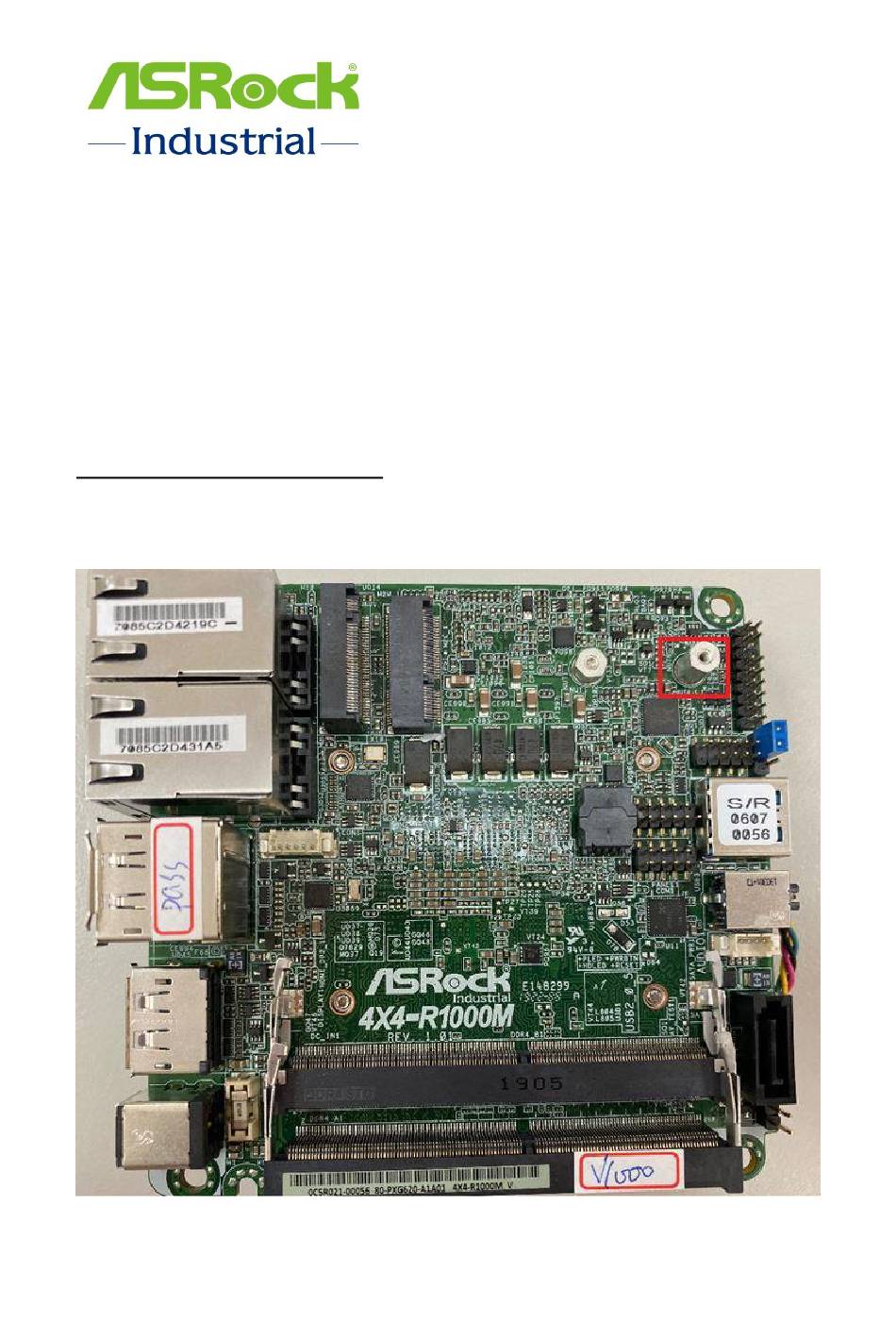

1. Unlock the hex head screw from the motherboard.

Table of Contents

Do you have a question about the Industrial 4x4 R1000 and is the answer not in the manual?

Page 1 The Guide of Installing Bracket and Extend Board for M.2 2280 SSD Model: 4x4 R1000 and iBox-R1000 Requirements: ASRI Extend Board, M.2 2280 bracket and screw accessory How to Install the Bracket Please refer to the following steps to install the bracket for M.2 2280 SSD. 1.
Page 2 2. Put the bracket at the following location. 3. Use the screw to lock the bracket.
Page 3 4. Install M.2 2280 SSD into the slot. 5. Tighten the screw with a screwdriver to secure the M.2 2280 SSD into place.
Page 4 6. The M.2 2280 SSD is installed successfully.
Page 5 How to Install the Extend Board Extend Board is for extending the rear I/O to the case once M.2 2280 SSD is installed, and there are 4 items in an Extend Board Kit. Extend Board USB3.1 cable Audio cable USB2.0 cable Please refer to the following steps to install the Extend Board.
Page 6 2. Connect the Audio cable between the AUDIO1 header on the Extend Board and the AUDIO Jack on the motherboard. *Please notice the direction of the AUDIO1 connector. The green line should be closest to the USB3_1_2 ports.
Page 7 3. Connect the USB2.0 cable between the USB2.0 header on the Extend Board and your motherboard. After finishing the steps as above, the needed cables for the Extend Board are connected successfully.
Page 8 Note: After installing the M.2 2280 SSD, the onboard LPC header won’t be used.
