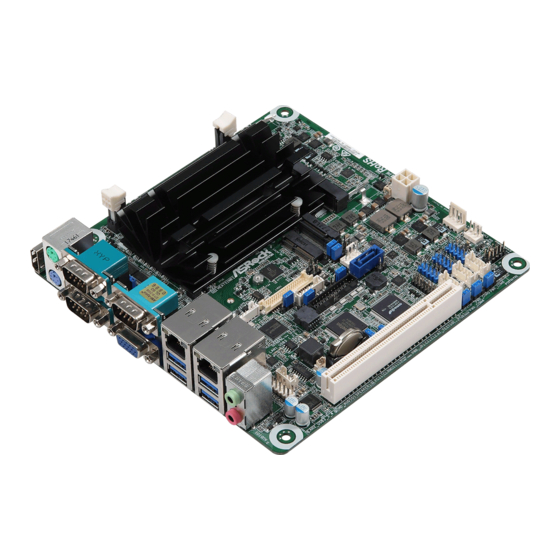

- Page 1 IMB-150D-PCI User Manual Version 1.0 Published June 2018 Copyright©2018 ASRock INC. All rights reserved.
- Page 2 (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
- Page 3 The terms HDMI™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
-
Page 4: Table Of Contents
Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Specifications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............. -
Page 5: Introduction
In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. -
Page 6: Specifications
1.2 Specifications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® ® Processor Intel Celeron Processor J1900/N2930 System Chipset Mini-PCIe 1 x M.2 (KEY E, 2230) with PCIe x 1 and shared Expansion USB2.0 for wireless Slot 1 x M.2 (KEY M, 2242/2260/2280) with SATA2 for SSD mSATA Technology Dual Channel DDR3L 1333 MHz SDRAM... - Page 7 6 x USB 2.0 LVDS Serial 3 x COM (RS-232) SATA 1 x SATA2 Internal Parallel Connector GPIO 4 x GPI + 4 x GPO SATA PWR Output Con Speaker Header 1 x Header Watchdog Output Output from super I/O to drag RESETCON# Timer Interval 256 Segments, 0,1,2…255 Sec...
-
Page 8: Motherboard Layout
1.3 Motherboard Layout IMB-150D-PCI HDMI1 DDR3_A1 (Support DDR3L Only) Port 2 Port 1 VGA1 Port 3 Industrial ATX12V1 BKT_PWR1 USB 3.0 Top: BLT_PWR1 PNL_PWR1 T: USB1 LAN1 BLT_PWM1 B: USB2 CPU_FAN1 JGPIO_PWR1 BLT_VOL1 SATA2_1 JGPIO_SET1 LPT_GPIO1 BUZZ2 USB 3.0 Top:... - Page 9 1 : COM Port PWR Setting Jumpers PWR_COM1 (For COM Port1) PWR_COM2 (For COM Port2) PWR_COM3 (For COM Port3) 2 : BL1, BL2 3 : ATX Power Connector (Input 9V-19V) 4 : Backlight Power Select (LCD_BLT_VCC) (BKT_PWR1) 5 : Panel Power Select (LCD_VCC) (PNL_PWR1) 6 : 4-Pin CPU FAN Connector (+12V) 7 : SATA2 Connectors (SATA2_1) 8 : SATA Power Output Connector...
-
Page 10: I/O Panel
1.4 I/O Panel PS/2 Mouse Port USB 3.0 Ports (USB3_3_4) COM Port 1 (COM1)* USB 3.0 Ports (USB3_1_2) COM Port 3 (COM3)* VGA Port (VGA1) LAN RJ-45 Port** COM Port 2 (COM2)* LAN RJ-45 Port** PS/2 Keyboard Port Line out (Green) HDMI Port (HDMI1) Microphone (Pink) * This motherboard supports RS232/422/485 on COM1~3 ports. -
Page 11: Installation
Chapter 2: Installation This is a Mini-ITX form factor (6.7" x 6.7", 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it. Make sure to unplug the power cord before installing or removing the motherboard. -
Page 12: Installation Of Memory Modules (So-Dimm)
2.3 Installation of Memory Modules (SO-DIMM) IMB-150D-PCI motherboard provides two 204-pin DDR3 (Double Data Rate 3) SO- DIMM slots, which support Dual Channel DDR3L (low voltage). 1. If you install one memory module only, please install it on DDR3_A1. 2. It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot;... - Page 13 Installing a SO-DIMM (for DDR3_B1) Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. Step 2. Firmly insert the SO-DIMM into the slot until the retaining clips at both ends fully snap back in place and the SO-DIMM is properly seated.
-
Page 14: Expansion Slots
2.4 Expansion Slots (PCI Slot and M.2 Sockets) There is 1 PCI slot and 2 M.2 sockets on this motherboard. PCI slot: The PCI slot is used to install expansion cards that have 32-bit PCI interface. M.2 sockets: M.2 socket (Key-M) supports type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module. - Page 15 Installing an expansion card Step 1. Before installing the expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation. Step 2.
-
Page 16: Jumpers Setup
2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”... - Page 17 Backlight Power Select Use this to set up the backlight (LCD_BLT_VCC) power of the LVDS connector and the panel backlight power (5-pin BKT_PWR1) of BLT_PWM1. (see p.8 No. 4) 1-2: LCD_BLT_VCC: +5V 2-3: LCD_BLT_VCC: +12V 4-5: LCD_BLT_VCC: DC_IN Backlight Control Level (CON_LBKLT_CTL) 1-2: +3V 2-3: +5V (3-pin BLT_PWM1)
- Page 18 BL1, BL2 Open : Protect LCD_BLT_VCC (2-pin BL1) Short : No Protect LCD_BLT_VCC (see p.8 No. 2) Open : Protect LCD_VCC (2-pin BL2) Short : No Protect LCD_VCC (see p.8 No. 2) Chassis Intrusion Headers This motherboard supports CASE OPEN detection feature (2-pin CI1: see p.8, No.
-
Page 19: Onboard Headers And Connectors
2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! SATA2 Connector This Serial ATA2 (SATA2) connector supports (SATA2_1: see p.8, No. - Page 20 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. The LED is off when the system is in S3/S4 sleep state or powered off (S5).
- Page 21 Chassis Fan Connector Please connect the fan cable FAN_SPEED to the fan connector and (3-pin CHA_FAN1) + 12V match the black wire to the (see p.8 No. 10) ground pin. CPU Fan Connector Please connect the CPU fan cable to the connector and (4-pin CPU_FAN1) match the black wire to the (see p.8 No.
- Page 22 LVDS Connector (40-pin LVDS1) (see p.8 No. 28) LPC Header This connector supports a 48MHz Trusted Platform Module (TPM) (19-pin LPC1) F_CLKRUN# SERIRQ# +3VSB system, which can see p.8, No. 16) S_PWRDWN# securely store keys, digital LAD0 LAD1 certificates, passwords, and LAD3 LAD2 SMB_DATA_MAIN...
- Page 23 SATA Power Output Connector (4-pin SATA_PWR1) (see p.8 No. 8) COM4, 5, 6 Headers (RS232) Signal PIN Signal Name Name (9-pin COM4/COM5/COM6: see p.8, No. 14) CM_P9 RRTS# CCTS# DDSR# TTXD DDTR# DDCD# RRXD Buzzer Header (2-pin BUZZ2) (see p.8, No. 9) Signal...
-
Page 24: Uefi Setup Utility
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to configure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>... -
Page 25: Navigation Keys
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>... -
Page 26: Advanced Screen
3.3 Advanced Screen In this section, you may set the configurations for the following items: CPU Configu- ration, Chipset Configuration, Storage Configuration, Intel(R) Smart Connect Tech- nology, Super IO Configuration, ACPI Configuration, USB Configuration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction. -
Page 27: Cpu Configuration
3.3.1 CPU Configuration Intel SpeedStep Technology Intel SpeedStep technology is Intel’s new power saving technology. Pro- cessors can switch between multiple frequencies and voltage points to en- able power saving. The default value is [Enabled]. Configuration options: ® [Enabled] and [Disabled]. If you install Windows 8 / 8.1 and want to en- able this function, please set this item to [Enabled]. -
Page 28: Chipset Configuration
3.3.2 Chipset Configuration DRAM Voltage Use this to configure the voltage for DRAM. Share Memory Configure the size of memory that is allocated to the integrated graphics processor when the system boots up. Active LVDS Use this to enable or disable the LVDS. The default value is [Disabled]. Primary IGFX Boot Display Select a primary VGA. -
Page 29: Storage Configuration
3.3.3 Storage Configuration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Configuration options: [IDE Mode] and [AHCI Mode]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages. -
Page 30: Intel(R) Smart Connect Technology
3.3.4 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode. -
Page 31: Super Io Configuration
3.3.5 Super IO Configuration COM1 Configuration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Configuration Use this to set parameters of COM2. Select COM2 port type: [RS232], [RS422] or [RS485]. COM3 Configuration Use this to set parameters of COM3. -
Page 32: Acpi Configuration
3.3.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. ACPI HPET Table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. -
Page 33: Usb Configuration
3.3.7 USB Configuration USB Controller Use this item to enable or disable the use of USB controller. Intel USB3.0 Mode Use this item to enable or disable the use of USB 3.0 mode. Legacy USB Support Use this option to select legacy support for USB devices. There are three configuration options: [Enabled], [Auto] and [UEFI Setup Only]. -
Page 34: Trusted Computing
3.3.8 Trusted Computing Security Device Support Enable or disable BIOS support for security device. -
Page 35: Hardware Health Event Monitoring Screen
3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU_FAN1’s speed. -
Page 36: Security Screen
3.5 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password. -
Page 37: Boot Screen
3.6 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. - Page 38 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.
-
Page 39: Exit Screen
3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save configuration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”... -
Page 40: Software Support
Click on a specific item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
