IMB-183

User Manual

Version 1.0
Published December 2013
Copyright©2013 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IMB-183 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ASROCK IMB-183

Summary of Contents for ASROCK IMB-183

  • Page 1: User Manual

    IMB-183 User Manual Version 1.0 Published December 2013 Copyright©2013 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

  • Page 4: Table Of Contents

    Contents 1 Introduction ............5 1.1 Package Contents ............5 1.2 Speciications ..............6 1.3 Motherboard Layout ............8 1.4 I/O Panel ................ 10 2 Installation ............11 2.1 Screw Holes ..............11 2.2 Pre-installation Precautions ........... 11 2.3 Installation of Memory Modules (SO-DIMM) ....12 2.4 Expansion Slots ............

  • Page 5: Introduction

    In case any modiications of this manual occur, the updated version will be available on ASRock website without further notice. You may ind the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com If you require technical support related to this motherboard, please visit our website for speciic information about the model you are using.

  • Page 6: Speciications

    1.2 Speciications Form Dimensions Mini-ITX (6.7-in x 6.7-in) Factor ® Socket LGA1150 for Intel Core i7/i5/i3/Celeron (Haswell) Core (By CPU, Max 4) Processor Number System Max Speed (By CPU) L3 Cache (By CPU) Chipset BIOS UEFI Mini-PCIe 1 (PCIe+USB) Expansion mSATA 1 (SATA+USB) Slot...
  • Page 7 4 (2 x USB 3.0 compliant, 2 x USB 2.0 compliant) Audio 2 (Mic-In, Line-Out) eSATA PS/2 2 x USB 2.0 headers LVDS/ Inverter Serial 4 (RS-232) SATA 2 x SATA3 (6.0Gb/s) mPCIe Parallel mSATA IrDA GPIO 8-bit 4 x GPI + 4 x GPO SATA PWR Output Con Internal...

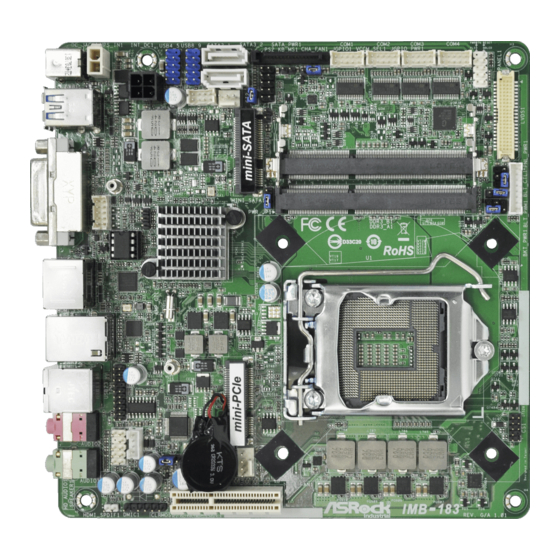

  • Page 8: Motherboard Layout

    VCCM_SEL1 USB 3.0 INT_DC1 T: USB0 JGPIO1 PS2_KB_MS1 CHA_FAN1 B: USB1 AMP_CTL1 PWR_JP1 JGPIO_SET1 BIOS Chip LAN1 USB 2.0 T: USB2 B: USB3 TPM1 AUDIO Mic In CODEC CLRCMOS1 SPEAKER1 Line Out BUZZ1 HD_AUDIO1 CPU_FAN1 IMB-183 PCIE1 HDMI_SPDIF1 DMIC1 Industrial...
  • Page 9 1 : 2-pin UPS Module Power Input Connector 2 : PS2 Keyboard/Mouse Header 3 : 4-pin ATX Power Input/Output Connector 4 : USB2.0 Headers (USB4_5, USB8_9) 5 : SATA3 Connectors (SATA3_1, SATA3_2) 6 : Digital Input / Output Pin Header 7 : SATA Power Output Connector 8 : VCCM Power Selection 9 : Digital Input / Output Power Selection (JGPIO_PWR1)

  • Page 10: I/O Panel

    1.4 I/O Panel DC Jack (DC_JACK1) LAN RJ-45 Port* USB 3.0 Ports (USB3_01) USB 2.0 Ports (USB23) DVI-I Port (DVI1) Microphone (Pink) HDMI Port (HDMI1) Line out (Lime) eSATA Port (ESATA1) * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications.

  • Page 11: Installation

    Chapter 2: Installation This is a Mini-ITX form factor (6.7” x 6.7”, 17.0 x 17.0 cm) motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Make sure to unplug the power cord before installing or removing the motherboard.

  • Page 12: Installation Of Memory Modules (So-Dimm)

    2.3 Installation of Memory Modules (SO-DIMM) IMB-183 provides two 204-pin DDR3 (Double Data Rate 3) SO-DIMM slots. Step 1. Align a SO-DIMM on the slot such that the notch on the SO-DIMM matches the break on the slot. 1. The SO-DIMM only its in one correct orientation. It will cause permanent damage to the motherboard and the SO-DIMM if you force the SO-DIMM into the slot at incorrect orientation.

  • Page 13: Expansion Slots

    2.4 Expansion Slots (mini-PCIe, mini-SATA and PCI Express Slots) There is 1 mini-PCIe slot, 1 mini-SATA slot and 1 PCI Express slot on this mother- board. mini-PCIe slot: MINI_PCIE1 (mini-PCIe slot; half size) is used for PCI Express mini cards. mini-SATA slot: MINI_SATA1 (mini-SATA slot;...

  • Page 14: Jumpers Setup

    2.5 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...
  • Page 15 Speaker Control Signal Name (3-pin AMP_CTL1) GPIO_VOL_DW (see p.8, No. 29) GPIO_VOL_UP Backlight Control Level (CON_LBKLT_CTL) 1-2 : +3.3V 2-3 : +5V (3-pin BLT_PWM1) (see p.8, No. 19) Panel Power Selection Signal Signal Name Name (4-pin PNL_PWR1) (see p.8, No. 16) +12V LCD_VCC +3.3V...

  • Page 16: Onboard Headers And Connectors

    2.6 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! CPU Fan Connectors Please connect the CPU fan FAN_SPEED_CONTROL cable to the connector and...
  • Page 17 COM Port Headers (9-pin COM1: see p.8, No. 10) (9-pin COM2: see p.8, No. 11) (9-pin COM3: see p.8, No. 12) (9-pin COM4: see p.8, No. 13) Signal Signal Signal Signal Signal Name Name Name Name Name +12V CCTS# DDSR# DDTR# RRXD RRTS#...
  • Page 18 PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
  • Page 19 1. High Deinition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system. 2. If you use AC’97 audio panel, please install it to the front panel audio header as below: A.
  • Page 20 LVDS Connector Signal Name Signal Name LCD_VCC LCD_VCC (40-pin LVDS1) LDDC_CLK +3.3V (see p.8 No. 15) LVDS_A_DATA0# LDDC_DATA LVDS_A_DATA0 LVDS_A_DATA1 LVDS_A_DATA1# LVDS_A_DATA2# LVDS_A_DATA2 LVDS_A_DATA3 LVDS_A_DATA3# LVDS_A_CLK# LVDS_A_CLK LVDS_B_DATA0 LVDS_B_DATA0# LVDS_B_DATA1# LVDS_B_DATA1 LVDS_B_DATA2 LVDS_B_DATA2# LVDS_B_DATA3# DPLVDD_EN LVDS_B_DATA3 LVDS_B_CLK LVDS_B_CLK# CON_LBKLT_EN LCD_BLT_VCC CON_LBKLT_CTL LCD_BLT_VCC LCD_BLT_VCC...

  • Page 21: Dmic Header

    DMIC Header (5-pin DMIC1) (see p.8, No. 23) Signal Signal Signal Signal Signal Signal Name Name Name Name Name Name DMIC_ DMIC_ +3.3V DATA Customer Solution Header Signal Name Signal Name (9-pin CS1) +5V STANDBY (see p.8, No. 20) CIRRX PWRBT# SMB_DATA_RESUME +3.3V STANDBY...

  • Page 22: Uefi Setup Utility

    Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to conigure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 23: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items + / - To change option for the selected items <Enter>...

  • Page 24: Advanced Screen

    3.3 Advanced Screen In this section, you may set the conigurations for the following items: CPU Conigu- ration, Chipset Coniguration, Storage Coniguration, Intel(R) Smart Connect Tech- nology, Super IO Coniguration, ACPI Coniguration, USB Coniguration and Voltage Coniguration. Setting wrong values in this section may cause the system to malfunction.

  • Page 25: Cpu Coniguration

    3.3.1 CPU Coniguration Intel Hyper Threading Technology To enable this feature, a computer system with an Intel processor that sup- ports Hyper-Threading technology and an operating system that includes ® ® optimization for this technology, such as Microsoft Windows 7 / 8 is re- ®...
  • Page 26 ® [Enabled] and [Disabled]. If you install Windows 7 / 8 and want to enable this function, please set this item to [Enabled]. This item will be hidden if the current CPU does not support Intel SpeedStep technology. Please note that enabling this function may reduce CPU voltage and lead to system stability or compatibility issues with some power supplies.

  • Page 27: Chipset Coniguration

    3.3.2 Chipset Coniguration DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assign the appropriate frequency automatically. Primary Graphics Adapter This allows you to select [Onboard] or [PCI Express] as the boot graphic adapter priority. The default value is [PCI Express]. VT-d ®...
  • Page 28 Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. Onboard HDMI HD Audio This allows you to enable or disable the Onboard HDMI HD Audio feature. Onboard LAN1 This allows you to enable or disable the Onboard LAN1 feature. Deep Sleep Mobile platforms support Deep S4/S5 in DC only and desktop platforms support Deep S4/S5 in AC only.

  • Page 29: Storage Coniguration

    3.3.3 Storage Coniguration SATA Controller(s) Use this item to enable or disable the SATA Controller feature. SATA Mode Selection Use this to select SATA mode. Coniguration options: [IDE Mode], [AHCI Mode] and [Disabled]. The default value is [AHCI Mode]. AHCI (Advanced Host Controller Interface) supports NCQ and other new features that will improve SATA disk perfor- mance but IDE mode does not have these advantages.

  • Page 30: Intel(R) Smart Connect Technology

    3.3.4 Intel(R) Smart Connect Technology Intel(R) Smart Connect Technology Use this item to enable or disable Intel(R) Smart Connect Technology. Intel(R) Smart Connect Technology keeps your e-mail and social networks, such as Twitter, Facebook, etc. updated automatically while the computer is in sleep mode.

  • Page 31: Super Io Coniguration

    3.3.5 Super IO Coniguration COM1 Coniguration Use this to set parameters of COM1. Select COM1 port type: [RS232], [RS422] or [RS485]. COM2 Coniguration Use this to set parameters of COM2. COM3 Coniguration Use this to set parameters of COM3. COM4 Coniguration Use this to set parameters of COM4.

  • Page 32: Acpi Coniguration

    3.3.6 ACPI Coniguration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. ACPI HPET Table Use this item to enable or disable ACPI HPET Table.

  • Page 33: Usb Coniguration

    USB Mouse Power On Use this item to enable or disable USB Mouse to power on the system. 3.3.7 USB Coniguration USB Controller Use this item to enable or disable the use of USB controller. Intel USB 3.0 Mode Use this item to enable or disable the use of Intel USB 3.0 mode. Legacy USB Support Use this option to select legacy support for USB devices.

  • Page 34: Voltage Coniguration

    3.3.8 Voltage Coniguration DRAM Voltage Use this to select DRAM Voltage. The default value is [Auto].

  • Page 35: Hardware Health Event Monitoring Screen

    3.4 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU_FAN1 Setting This allows you to set CPU fan 1’s speed.

  • Page 36: Boot Screen

    3.5 Boot Screen In this section, it will display the available devices on your system for you to conig- ure the boot settings and the boot priority. Boot From Onboard LAN Use this item to enable or disable the Boot From Onboard LAN feature. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key.
  • Page 37 CSM (Compatibility Support Module) Enable to launch the Compatibility Support Module. Please do not disable ® unless you’re running a WHCK test. If you are using Windows 8 64-bit and all of your devices support UEFI, you may also disable CSM for faster boot speed.

  • Page 38: Security Screen

    3.6 Security Screen In this section, you may set, change or clear the supervisor/user password for the system. Supervisor Password Set or change the password for the administrator account. Only the ad- ministrator has authority to change the settings in the UEFI Setup Utility. Leave it blank and press enter to remove the password.

  • Page 39: Exit Screen

    3.7 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save coniguration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 40: Software Support

    Click on a speciic item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may con-...
