ADC Adtemp 422 Use, Care & Maintenance

Veterinary Thermometer
Use, Care,
& Maintenance
Thank you for choosing an ADC
component has been carefully designed to maximize performance.

Device Description and Intended Use

This device is intended to measure body temperature in

Contraindications

The use of the product is contraindicated if scar tissue is present at the measurement
site or the measurement site is compromised by disorders.

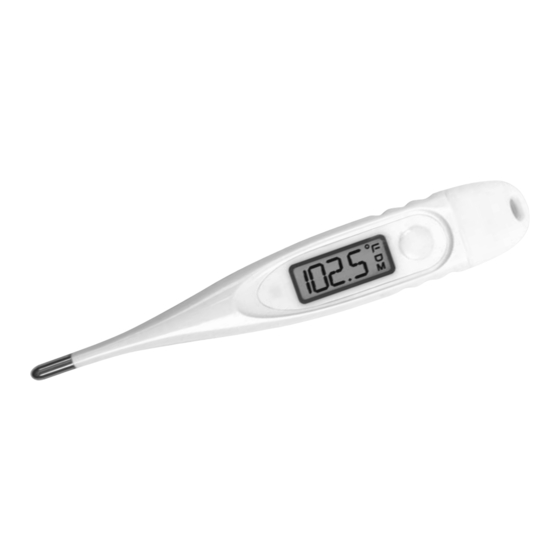

Parts and Assembly

Probe
Measure Value

Symbol Definitions

The following symbols are associated
with your thermometer.
LATEX
Not made with natural rubber latex

General Warnings

A warning statement in this manual
identifies a condition or practice which, if not corrected or discontinued
immediately, could lead to patient injury, illness, or death.
WARNING: Do not boil the probe. Instead, clean the unit by wiping it with a dry cloth and
disinfect the probe with isopropyl (rubbing) alcohol. See cleaning instructions for details.
WARNING: Do not drop the thermometer or expose it to a heavy shock.
WARNING: Do not bite or swallow the probe or the battery cover.
WARNING: Do not let thermometer come into contact with any thinner or chemical solvents.
WARNING: After using, clean the thermometer and place it into the carrier case.
WARNING: Do not store the unit under direct sunlight, at a high temperature, or high
humidity or dust.
WARNING: Stop using the thermometer if it operates erratically or if the display malfunctions.
WARNING: Keep out of reach of unsupervised children. Components may be harmful if swallowed.
WARNING: Clean the thermometer probe before storing.
WARNING: Do not attempt to disassemble the unit except to replace the battery.
WARNING: Do not use if the display malfunctions or it operates irregularly.
WARNING: Do not put this unit in dishwasher.
WARNING: Allow the thermometer to warm naturally to room temperature before using.
WARNING: Performance of the thermometer may be degraded if operated or stored outside
stated temperature and humidity ranges or if the animal's temperature is below the ambient
(room) temperature.
WARNING: Only use the thermometer indoors and do not use it near mobile phones or
microwave ovens.
WARNING: When the battery is almost exhausted, the symbol " " will appear in the
display window.
WARNING: The performance of this device may be degraded if operated or stored outside
stated temperature and humidity ranges.
WARNING: Dispose of batteries in accordance with locally applicable regulations, not with
domestic waste.
WARNING: Temperature reading is for reference purposes. Animals showing visible
signs of distress or illness need the attention of a veterinarian.
WARNING: To avoid battery leakage, remove battery from thermometer when not in use
for extened periods of time.

Battery Replacement

1. When the symbol " " appears,
the battery needs to be replaced.
2. With the thermometer turned off, remove the screw from the back of the battery
cover. Pull the battery cover off in the direction shown.
3. Use a pointed object such as a toothpick to pry loose the old battery. Avoid
using any sharp metal object.
4. Place new 1.5V button size battery LR41 or equivalent in the chamber with the
negative (-) side up and the positive (+) side down.
5. Replace and screw back battery cover to thermometer.
6. Dispose of battery properly. Do not leave battery in reach of children.

How to Use

1. Disinfect the probe with isopropyl (rubbing) alcohol before using.
2. We recommend using probe covers to help prevent cross-contamination.
Use of probe cover may result in a 0.2°F difference from actual temperature.
3. Press and release the multifunction button. The display will read
confirming the unit is functioning properly.
4. Then the display will show L°F with °F flashing.
5. Place the probe in the appropriate position.
is around 10 seconds.
6. Once the degree sign °F stops flashing, the measurement is finished and the
temperature will be displayed. The device will beep for approximately 8 seconds
after °F stops flashing.
7. The unit will automatically turn off in 3 minutes. To prolong battery life, press
the multifunction button to turn off the device manually.
Adtemp
® Adtemp
Di spl ay Wi ndo w
Digital
TM
TM Veterinary Thermometer. Every
animals.
Multifunction Button
Measure Unit
Low Battery Indication
Memory Indication
M
REF
The minimal measurement time
Battery Cover
-
