- Page 1 Model ESMH MOTORIZED FORCE MEASUREMENT TEST STAND User’s Guide...
-
Page 2: Table Of Contents
Model ESMH Motorized Test Stand Thank you! Thank you for purchasing a Mark-10 Model ESMH motorized test stand. We are confident that you will get many years of great service from this product. Mark-10 test stands and load frames are ruggedly built for many years of service in laboratory and industrial environments. -
Page 3: Introduction
INTRODUCTION The ESMH motorized test stand is a horizontal force measurement tester designed to test up to 50 lb [250 N] of tensile or compressive force. The ESMH works in conjunction with a force gauge and gripping fixtures. Common applications include peel testing, small spring testing, coefficient of friction testing, and other product performance testing. -
Page 4: Safety Tips
Mark-10 or your distributor. SETUP Mounting to a workbench Place the ESMH on a clean, flat and level work area that meets the criteria out- lined in the work area safety instructions. For accurate readings, the area should be free of vibrations. -
Page 5: Mounting On Force Gauges
5/16 screws. Mounting grips and fixtures The ESMH includes a loading plate to which a grip or fixture may be mounted. This plate can be mounted to the end of the stand with four screws (shown at left). -
Page 6: Operation

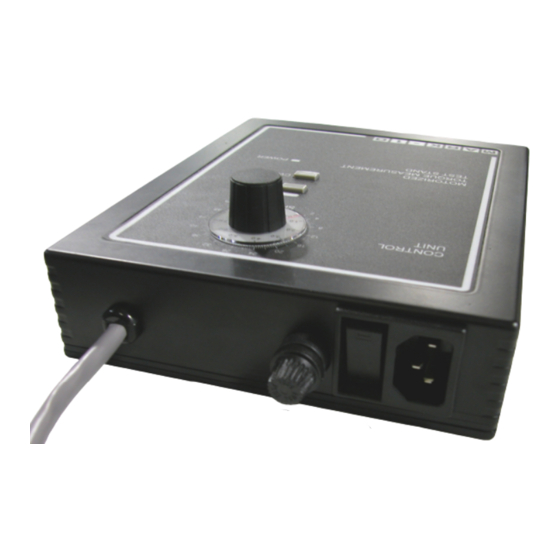

Model ESMH Motorized Test Stand OPERATION Using the controller Rear View Top View 1. SPEED CONTROL DIAL Adjust speed by turning the dial 0.2 – 50.0 in/min [5 – 1270 mm/min]. 2. LEFT Press and hold to move the crosshead to the left, producing compressive force. -
Page 7: Powering Up
User’s Guide Powering up Plug the power cord into the controller and the other end into a wall outlet. Then turn on power with the power switch (see Page 5). Reading the indicators POWER Power is indicated by an illuminated indicator. RIGHT LIMIT LEFT LIMIT Indicates a limit condition in... -
Page 8: Specifications
Model ESMH Motorized Test Stand SPECIFICATIONS Load capacity: 50 lb [250 N] Speed range: 0.2-50 in/min [5-1270 mm/min] Speed accuracy: ±5% of setting, ±0% variation with load Maximum travel: 13.0 in [330.2 mm] Maximum travel w/travel display: 12.0 in [304.8 mm]... -
Page 9: Other Mark-10 Products
WARRANTY Mark-10 Corporation expressly warrants to its buyer for three (3) years from the date of delivery that the goods sold are free from defects in workmanship and materials. Mark-10 Corporation will, at its option, repair or replace or refund the purchase price of goods found to be defective. - Page 10 Mark-10 Corporation has been an innovator in the Force and Torque measurement fields since 1979. We strive to achieve 100% customer satisfaction through excellence in product design, manufacturing and customer support. In addition to our standard line of products we can provide modifications and custom designs for OEM applications.
