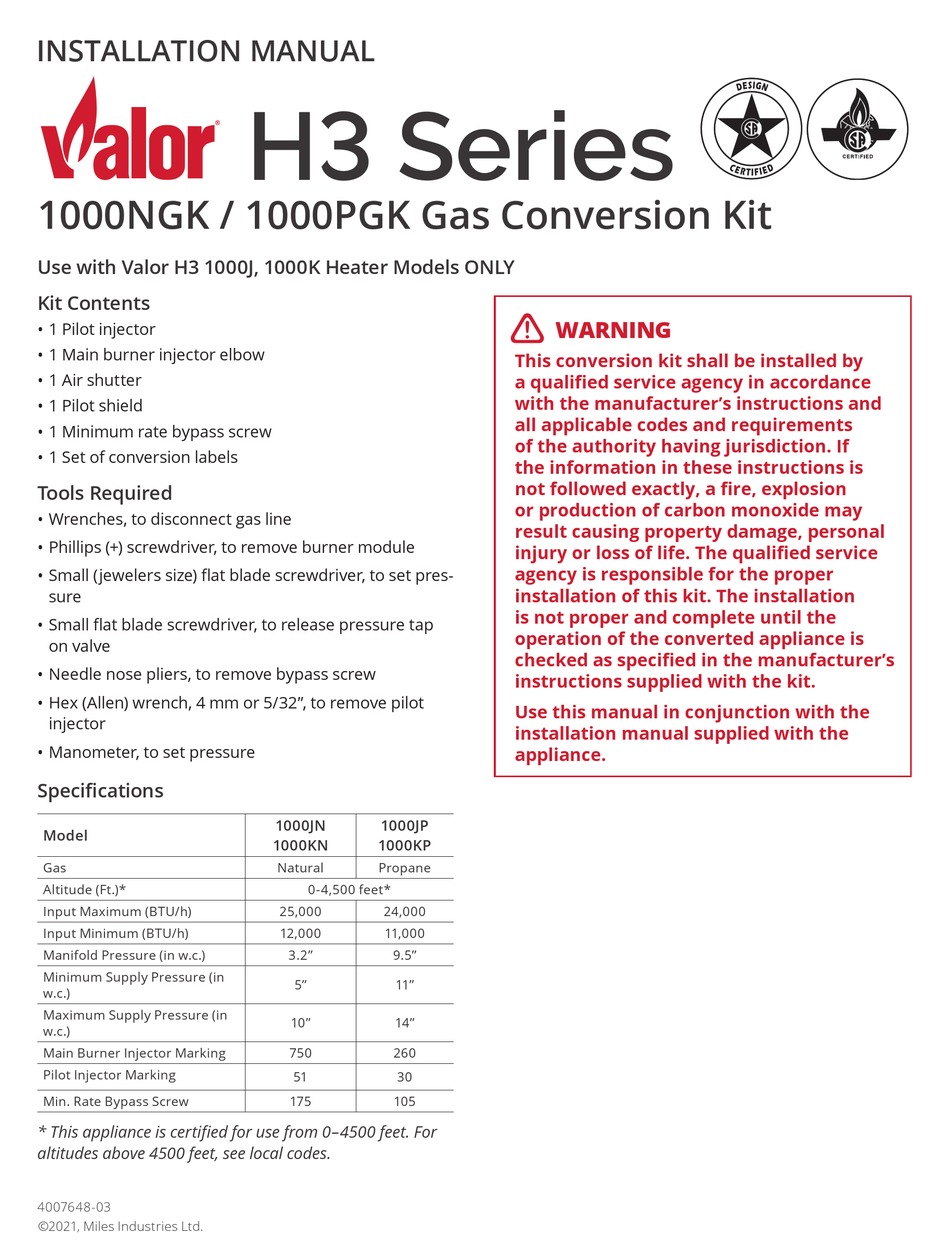

INSTALLATION MANUAL
1000NGK / 1000PGK Gas Conversion Kit
Use with Valor H3 1000J, 1000K Heater Models ONLY
Kit Contents
• 1 Pilot injector
• 1 Main burner injector elbow
• 1 Air shutter
• 1 Pilot shield
• 1 Minimum rate bypass screw
• 1 Set of conversion labels
Tools Required
• Wrenches, to disconnect gas line
• Phillips (+) screwdriver, to remove burner module
• Small (jewelers size) fl at blade screwdriver, to set pres-
sure
• Small fl at blade screwdriver, to release pressure tap
on valve
• Needle nose pliers, to remove bypass screw
• Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
• Manometer, to set pressure
Specifi cations
Model
Gas
Altitude (Ft.)*
Input Maximum (BTU/h)
Input Minimum (BTU/h)
Manifold Pressure (in w.c.)
Minimum Supply Pressure (in
w.c.)
Maximum Supply Pressure (in
w.c.)
Main Burner Injector Marking
Pilot Injector Marking
Min. Rate Bypass Screw
* This appliance is certifi ed for use from 0–4500 feet. For
altitudes above 4500 feet, see local codes.
4007648-03
©2021, Miles Industries Ltd.
H3 Series
1000JN
1000JP
1000KN
1000KP
Natural
Propane
0-4,500 feet*
25,000
24,000
12,000
11,000
3.2"
9.5"
5"
11"
10"
14"
750
260
51
30
175
105
WARNING
This conversion kit shall be installed by
a qualified service agency in accordance
with the manufacturer's instructions and
all applicable codes and requirements
of the authority having jurisdiction. If
the information in these instructions is
not followed exactly, a fire, explosion
or production of carbon monoxide may
result causing property damage, personal
injury or loss of life. The qualified service
agency is responsible for the proper
installation of this kit. The installation
is not proper and complete until the
operation of the converted appliance is
checked as specified in the manufacturer's
instructions supplied with the kit.
Use this manual in conjunction with the
installation manual supplied with the
appliance.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Valor H3 1000NGK
Summary of Contents for Valor H3 1000NGK
- Page 1 INSTALLATION MANUAL H3 Series 1000NGK / 1000PGK Gas Conversion Kit Use with Valor H3 1000J, 1000K Heater Models ONLY Kit Contents WARNING • 1 Pilot injector • 1 Main burner injector elbow This conversion kit shall be installed by • 1 Air shutter a qualified service agency in accordance with the manufacturer’s instructions and...
-
Page 2: Prepare The Appliance
General Notes Regarding Conversion Replace Burner Injector and air shutter The conversion may be done before or after the 1. Unscrew the nut at the end of the burner fuel appliance is installed into the cavity. However, the gas supply line, and gently press the line down. must be connected to set the manifold pressure. - Page 3 Replace the Pilot Injector 7. Air shutter stopper, if equipped. This part is no longer necessary. If the appliance has 1. Remove the pilot shield if installed (2 screws). an air shutter stopper, remove the 2 screws retain- 2. Remove the pilot hood by releasing the U-clip and ing it, discard it and reinstall the 2 screws to plug the pulling up on the hood.
- Page 4 6. Install the pilot shield supplied with the kit if none 3. Locate and remove the bypass screw from the valve was already installed or if diff erent than the one and discard (this screw may be covered by a sticker). installed (2 screws).
-
Page 5: Adjust The Air Shutter
Check for leaks Reinstall the Fuel Bed 1. Reconnect gas inlet to valve tightening pipe connec- To reinstall the fuel bed to the fi replace, see the tion. Open shut-off valve and inspect. installation instructions supplied with the appliance. 2. Test for leaks by applying a liquid detergent or soap Adjust the Air Shutter solution to all connection joints that were taken Once the burner module is reinstalled, the air shutter is... - Page 6 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
-
Page 7: Guide D'installation
GUIDE D’INSTALLATION Série H3 Trousse de conversion de gaz 1000NGK / 1000PGK Utilisez avec les foyers Valor H3 1000J, 1000K SEULEMENT Contenu du kit AVERTISSEMENT • 1 Injecteur de veilleuse • 1 Injecteur coude du brûleur Ce kit de conversion doit être installé... - Page 8 À propos de la conversion Remplacez l’injecteur du brûleur La conversion d’un gaz à l’autre peut être faite avant 1. En soutenant l’injecteur coude, dévissez l’écrou re- ou après l’installation de l’appareil dans la cavité. tenant de la conduite de gaz pour la débrancher. Cependant, le gaz doit être branché...
- Page 9 Remplacez l’injecteur de veilleuse 7. Butoir d’obturateur, si installé. Cette pièce n’est plus nécessaire. Enlevez le butoir 1. Enlevez l’écran de la veilleuse si installée (2 vis). et jetez-le. Réutilisez les 2 vis du butoir pour bou- 2. Écartez légèrement l’attache en U puis tirez vers le cher les trous de vis de la plaque.
- Page 10 6. Installez l’écran de veilleuse fournie avec le kit, si 3. Repérez la vis d’indice minimum sur l’autre côté de aucune n’était originalement installée ou si celle qui la soupape et enlevez-la—elle peut être couverte était installée est diff érente (2 vis). par un autocollant.
- Page 11 Vérifi ez s’il y a des fuites 4. Éteignez l’appareil, enlevez le manomètre et re- serrez la vis de vérifi cation de pression. 1. Rebranchez la conduite de gaz à la soupape et 5. Vérifi ez tous les raccords pour voir s’il y a des fuites. serrez les raccords.
- Page 12 Apposez les étiquettes de conversion 1. Completez les informations requises sur l’étiquette “Cet appareil a été converti le ... par ...” et placez avec l’étiquette “Cette commande a été convertie ...”. 2. Apposez les étiquettes de conversion sur le fond de la caisse du foyer près de la carte d’identifi...
