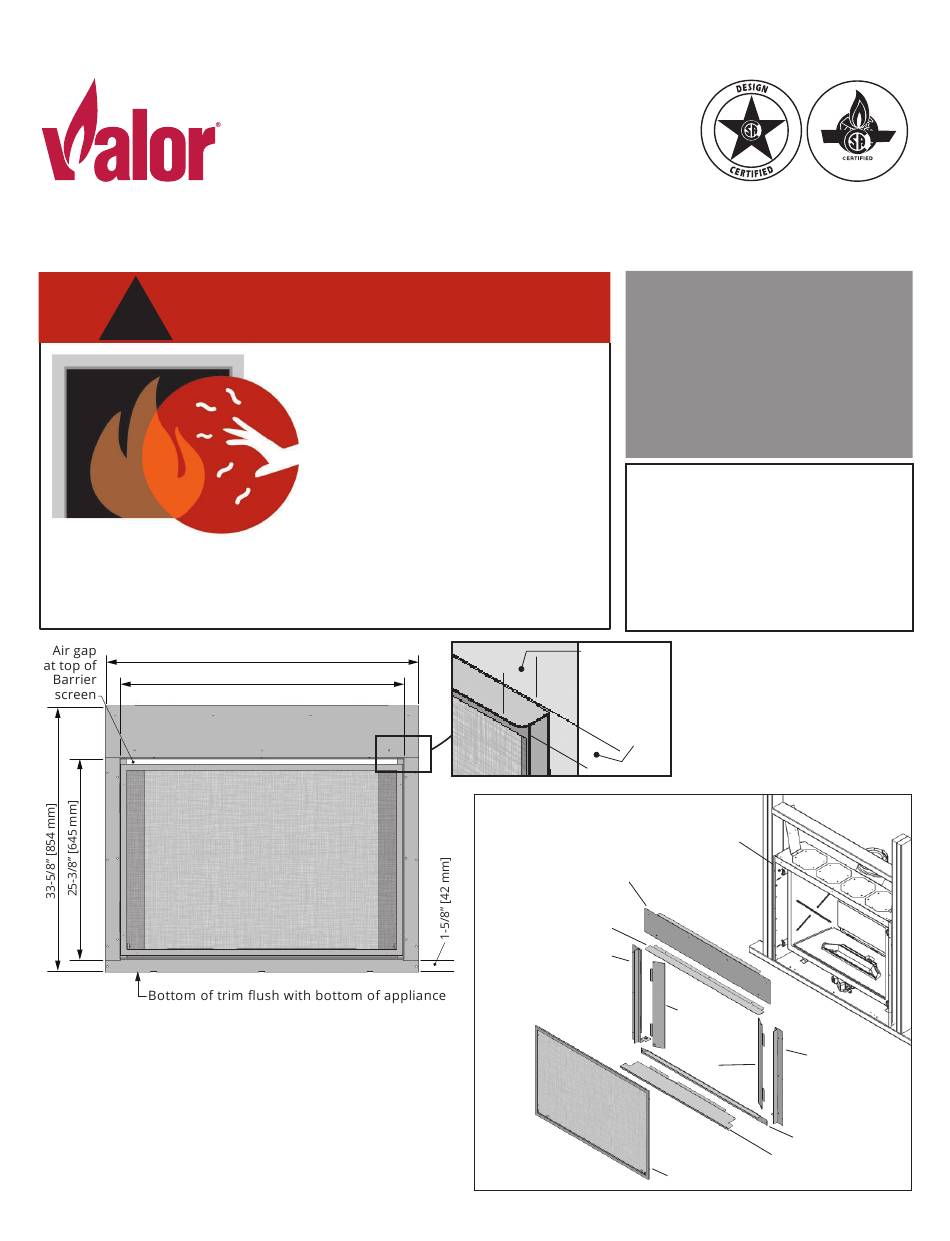

Valor H5 Series Installation Manual

INSTALLATION MANUAL
1130CIK Clean Installation Kit
CSA approved for use with Valor H5 1100M models ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
39-1/2" [1004 mm]
The 1130CIK Clean Installation Kit installs at the time of
framing the appliance. Non-combustible wall finishes
are required and are applied over top of fl anges and
butted up to 1130's frame—see appliance installation
manual for more information about fi nishing around
this kit.
This kit is not intended to and cannot be installed
with an H5 trim or any other trim.
4008896-01
© Copyright Miles Industries Ltd., 2021
H5 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
36" [915 mm]
I N ST A LL E R
L e a v e t h i s m a n u a l
w i t h t h e a p p l i a n c e .
C O N S U M E R
Retain this manual
for future reference.
Note: This kit must be installed
by a qualified installer, service
agency or gas supplier at the time
of the heater installation. These
instructions are to be used in
conjunction with the fireplace
main installation instructions.
1-3/4"
[45 mm]
1-1/4"
[32 mm]
Top panel
Upper finishing
strip
Left hand panel
Overview
H5 1100M
Left hand
door
Right hand
Right hand
door
panel
Lower panel
Removable panel
Barrier screen
1
