Be sure to install the device at a height that
ensures that the alignment between the
devices is visible and there is no obstruction
in the middle.
Checking the Signal Strength
Before fixing the device in place, slowly pan the
DAP-3712 from side to side and check the LED
indicator to find the position where the signal
is strongest.

Mounting on a Pole

1.
Hold the DAP-3712 against the pole in the
desired position.

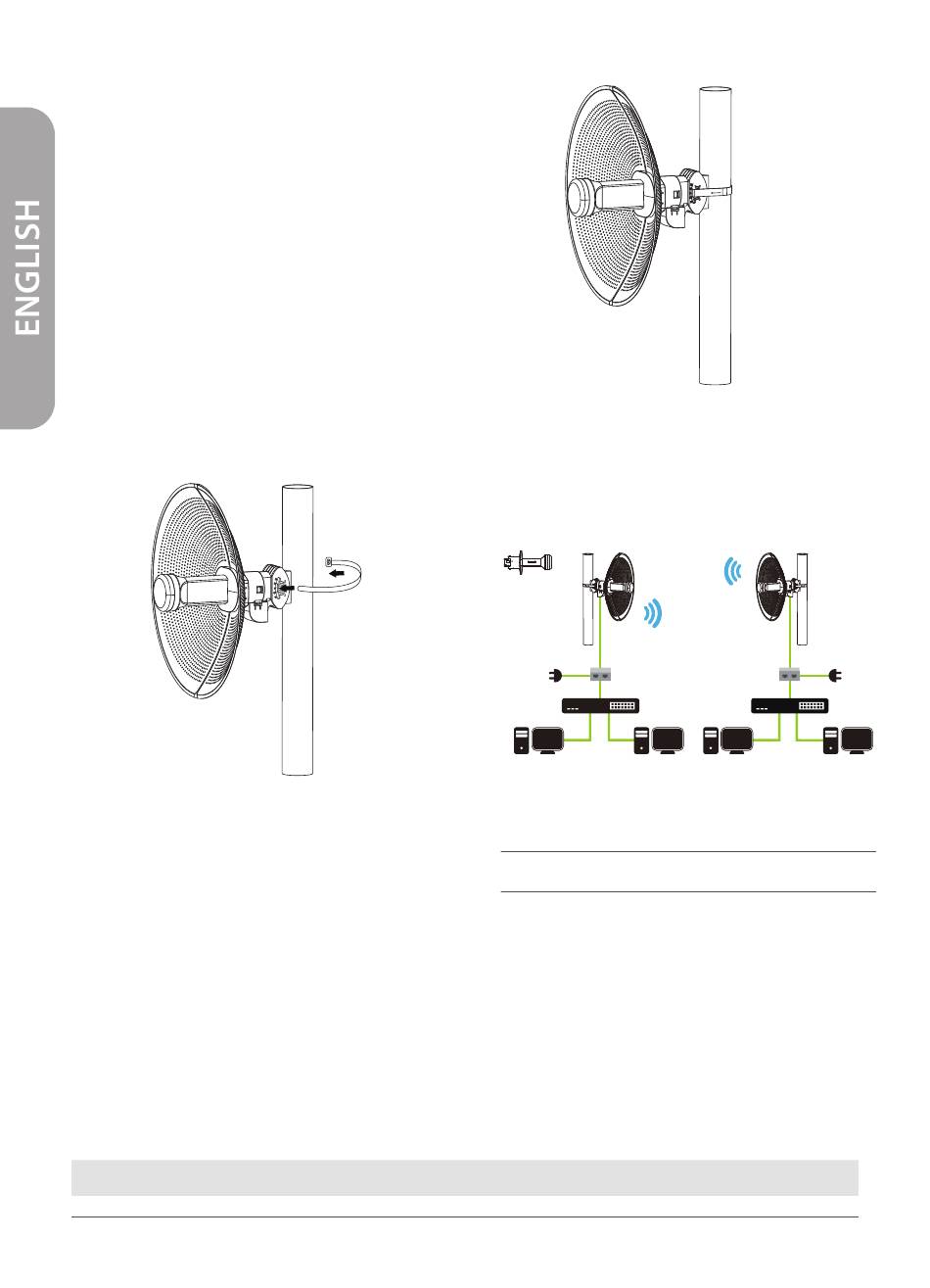

Figure 13: Mounting the Device
2.
Thread the metal mounting tie through
the hole on the base of the DAP-3712 and
and wrap it around the pole. Fasten the
tie to secure the device against the pole.
TECHNICAL SUPPORT
6
Figure 14: Completed Installation
Once completed, your network will resemble
the following diagram.
Client mode
DAP-3712
PoE injector
Switch
PC1
PC2
Figure 15: DAP-3712 Network
RF Frequency Requirements
This device is for outdoor use only. High power
radars are allocated as primary users of the 5150
- 5250 MHz and 5725 - 5850 MHz bands. These
radar stations can cause interference with or
damage the PoE adapter of this device. This is a
fixed point-to-point device.
dlink.com/support
Quick Installation Guide
AP mode
DAP-3712
PoE injector
Switch
PC3
PC4
