- Page 1 Intelligent U3 USB 3.0 Duplicator & Tester (USB/USB-HDD) User Manual vA.01...
-
Page 2: Table Of Contents
Index vA.01.3 Product Disclaimer ....................... 3 Warranty ..........................3 Piracy Statement ........................3 Before You Start ........................4 Notice Symbols ........................4 Introduction ......................... 5 Function Table ........................7 Function Description ......................11 1. Copy ..........................11 2. Compare .......................... 12 3. -
Page 3: Product Disclaimer
Product Disclaimer U-Reach is not accountable for any incidental or consequential damages, which includes, but is not constrained to property harm, loss of time or data from use of a U-Reach product, or any other damages attributable to product malfunction or failure (including without limitation, those attributable to: (1) reliance of the materials provided, (2) costs of product replacement, (3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of legal responsibility, arising out of or in reference to the use or overall... -
Page 4: Before You Start
Before You Start Important Notice Carefully read the entire manual before operating. ⚫ Never turn off the power while the firmware is updating. ⚫ Devices will operate at high temperature during high-speed tasks. Please wear ⚫ protective gloves to prevent burns when handling devices. Devices working in high temperature may cause it to slow down or even shut down. -
Page 5: Introduction

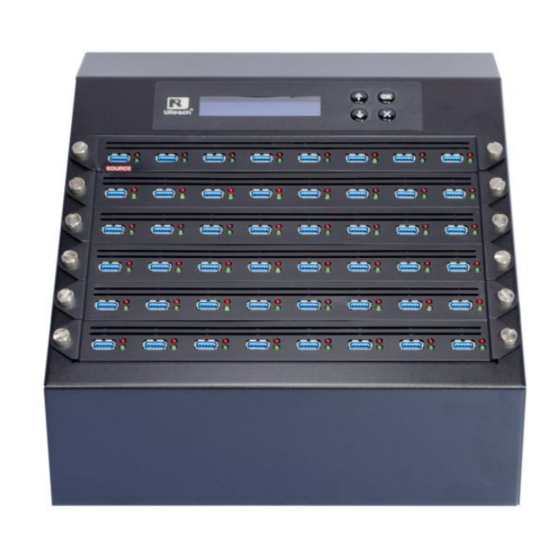

Introduction 1. Features The Intelligent U3 Series duplicator was designed with diversified media compatibility and high-speed performance in mind to not only flawlessly duplicate in high speed demands, but also provides helpful examinations by delivering the most accurate testing functions known today. - Page 6 2. Package Contents 12V 12.5A DC Adapter x 1 Power Cord x 1 Duplicator x1 *12V 9A for 8 Ports 1 pair of Gloves* PC-LINK Cable x 1 User Manual x 1 *Wear protective gloves to prevent burns when handling devices. 3.
-
Page 7: Function Table
Function Table *Below functions and features subject to change without notice. Function Description 1. Copy Data or whole media duplication only. Bit-for-bit comparison between the source and target flash 2. Compare medias. First copies, then compares the target to the source once 3. - Page 8 5.1. USB2 and USB3 Detects both USB2.0 and USB3.0 signals of the device. 5.2. Only USB3 5. Signal Detection Detects USB3.0 signal of the device. 5.3. Only USB2 Detects USB2.0 signal of the device. 6.1.1 USB Info. This feature will show flash’s data information, file format, content size, and capacity.
- Page 9 7.2. Button Sound Enables or disables the audible beep when a button is pressed. Both USB 2.0/3.0 7.3 Active USB Revision Only USB 2.0 Select the USB Revision to active. Only USB 3.0 No Limit 7.4 Target Tolerance Sets the capacity tolerance range between 100% Same the source and target.
- Page 10 9.1 Copy+ Write Protect Copies data from the source to targets, then sets targets with write protection. 9.2 Copy+Comp+WriteP. Copies data from the source to targets then compares and set targets with write protection. 9. Write Protect 9.3 Set Write Protect Sets targets with write protection.
-
Page 11: Function Description
Function Description 1. Copy Step 1: Prepare source and target devices. Recommendation: Target device(s)’ capacity must be equal to or larger Note than the source device capacity. Step 2: Connect source and target devices. Step 3: Proceed to copy. Scroll to select "1. Copy", then press "OK" to start the duplication process. The number of working/connected targets will be displayed on LCD. -
Page 12: Compare
2. Compare The compare function checks the accuracy of copy result. Scroll to select "2. Compare", then press "OK" to start the verification process. 3. Copy+Compare Sequentially automates from Function 1, Copy to Function 2, then Compare. Scroll to select "3. Copy+Compare", then press "OK" to start the automated duplication and verification process. - Page 13 4.4 Signal+H5+Format This function can precheck the 2.0 / 3.0 signal of the flash’s first, then performs a read and write test to determine the flash’s quality. The flash’s original data will be erased during this test. The USB will be formatted into FAT32.. 4.5 H5+Format This function performs a read and write test to determine the flash’s quality.
- Page 14 4.9 Minimum Read Speed This function can be used to select the flash media whose reading speed is too slow. Users can set an expected minimum reading speed for media check, so the flash media that doesn’t reach the minimum speed value will be identified. [Minimum Read Speed] 10.0MB/Second 4.10 Minimum Write Speed...
-
Page 15: Signal Detection
5. Signal Detection 5.1. USB2 and USB3 This function detects both USB2.0 and USB3.0 signal of the device. If any signal can’t be recognized, it will show red light. Press ▼ for further Pass:16 USB Signal [#01] USB2 and USB3 information Fail:0 Pass... - Page 16 6.2 Erase Note The device(s) will not have any format after erasing. ➊ Quick Erase This function will erase the index table from the connected device(s). Note Quick erase function will erase only FAT 16/32 formatted flashes. ➋ Full Erase Completely erases the entire flash media, including format and content.
- Page 17 ⚫ If the flash media format is already FAT16 or FAT32, the format function won’t alter its original format. ⚫ If the original flash media is not FAT format, i.e. NTFS, Linux or FAT multi-partition. The system will format per flash’s capacity. If capacity is above 2GB, the system will format the flash to FAT32 and below 2GB, the system will format the flash to FAT16.
-
Page 18: Setup
7. Setup 7.1 Copy Area ➊ System and Files Also known as "Quick Copy”. The source’s format is automatically analyzed and if it’s recognizable, such as, FAT 16/32/64, NTFS, or Linux ext. 2/3/4, the system will copy the data only, rather than the entire flash. Copies 2GB data only [Copy Area] System and Files... - Page 19 Only USB 2.0 : The duplicator will detect USB2.0 only. Only USB 3.0 : The duplicator will detect USB3.0 only. If the device does not support USB3.0 protocol, it will show “Fail.” 7.4 Target Tolerance This function sets the capacities tolerance range between the source and target flash. If the capacity is outside the tolerance range, the copy will fail.
- Page 20 Note The buffer memory may vary depending on product model. 7.6 Power Off Time Between Copy+Compare The use of this setting is highly advised as it prevents data loss due to unstable flash. Users can set the time gap of power supply between copy and compare. The time gap can be set from 0 to 15 seconds.
-
Page 21: Log Manager
8. Log Manager (Available in G Series) The log manager is an excellent management tool for operation control purposes. It can record duplication operation, system and targets information details. 8.1 Out Today Report Insert flash media into Port 1. ... -
Page 22: Write Protect
1. Close the PC-Link software (LV07B) or 2. Disconnect the duplicator from PC *The PC-Link software (LV07B) is designed to continuously record log reports. If user executes “clear log records” on the duplicator while LV07 is still running, the conflict between LV07 and duplicator might lead a serious system error. - Page 23 9.1 Copy+WriteProtect Copies data from the source to targets and then set write protection on targets. If the sticks were originally protected, the system will automatically Caution release protection, then copy. 9.2 Copy+Comp+WriteP. Copies data from the source to targets, compares, then set the write protection on targets. If the sticks were originally protected, the system will automatically Caution release protection, then copy+compare.
-
Page 24: Specification
Specification Intelligent U3 USB 3.0 Duplicator & Tester Capacity Designed support capability over 18TB+ Stand-alone, FPGA-based operation (Non-PC Operation Type based) Specifications Supported Languages English or Japanese LCD Display Backlit Monochrome LCD Display LEDs 2 LED Indicators per Port (1 Red/ 1 Green) 4 Push Buttons (▲, ▼, OK, ESC)
