ureach MTS-SAS Series User Manual

Ide/sata/sas duplicator and sanitizer
Hide thumbs Also See for MTS-SAS Series:
Table of Contents

Advertisement

Quick Links

Download this manual

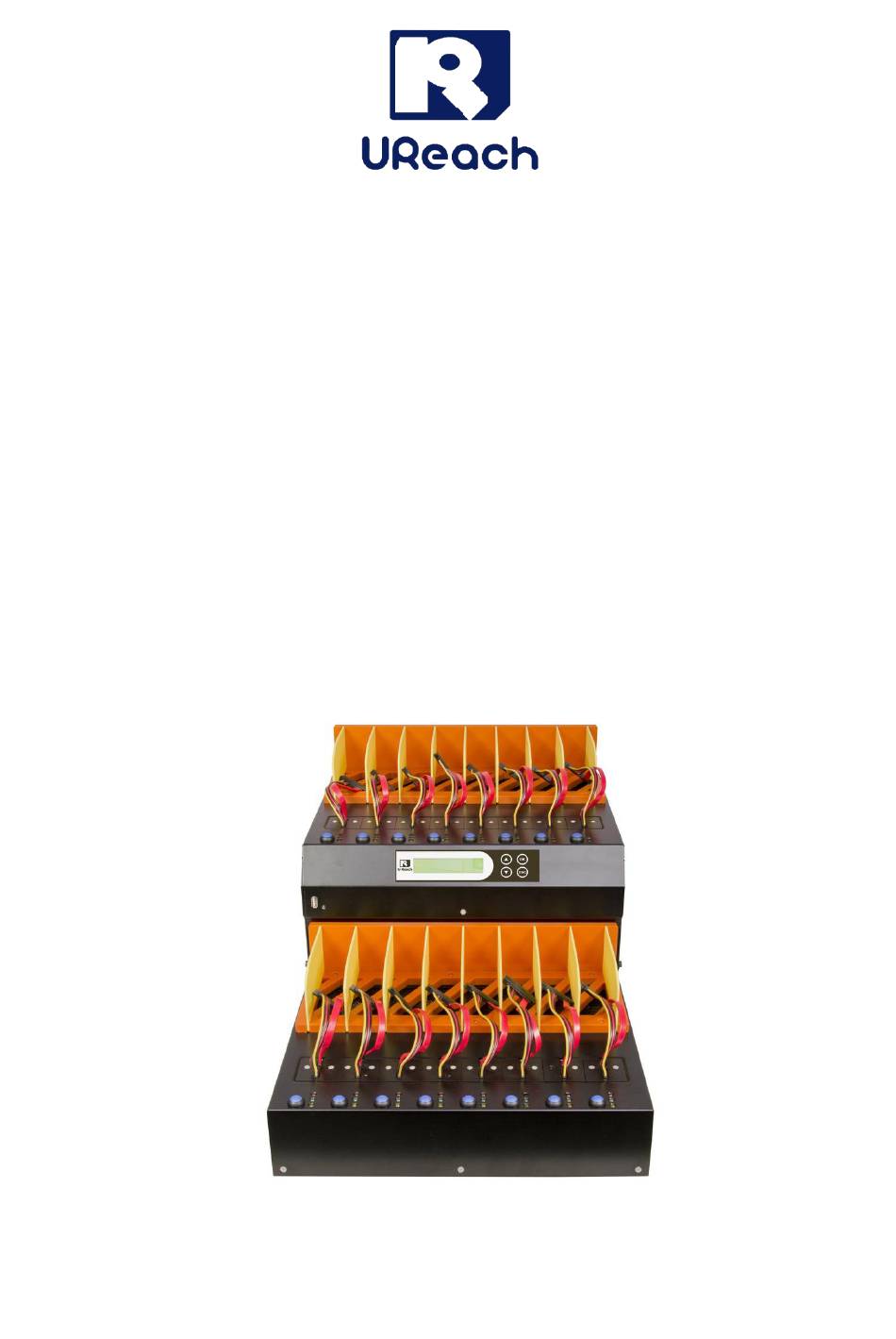

MTS-SAS Series
IDE/SATA/SAS
Duplicator and Sanitizer
User Manual
V3.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTS-SAS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ureach MTS-SAS Series

Summary of Contents for ureach MTS-SAS Series

  • Page 1 MTS-SAS Series IDE/SATA/SAS Duplicator and Sanitizer User Manual V3.2...

  • Page 2: Table Of Contents

    Index Product Disclaimer ......................... 3 Warranty ..........................3 Piracy Statement ........................3 Before You Start ........................4 Notice Symbols ........................4 Product Overview ........................5 Product Features ........................5 Hardware Overview ....................... 6 Functions Table ........................8 Functions ..........................12 1.

  • Page 3: Product Disclaimer

    Product Disclaimer U-Reach is not accountable for any incidental or consequential damages, including, but not limited to property harm, loss of time or data from use of any U-Reach product, or any other damages attributable to product malfunction or failure of including without limitation, those attributed to reliance of the materials provided, costs of product replacement, loss of use, data or profits, delays or business interruptions, any principle of legal responsibility arising from or in reference to the use, overall performance, delays in...

  • Page 4: Before You Start

    Before You Start Important Notice Carefully read the entire manual before operating.  Make sure the source device is correct and functioning.  Equal capacity of source and target is recommended for guaranteed data consistency.  Using the Copy+Compare function provides the most flawless duplication. ...

  • Page 5: Product Overview

    Product Overview The MTS series is an ultra-high speed duplicator and each SATA port is independent. That's why no matter how many targets are running it’ll provide the same performance speed, far beyond PC-based duplicator capabilities. The MTS series device duplicator is specially designed for professional use. The smart Quick Copy mode supports FAT16/32/64, Windows NTFS, Linux ext2/3/4, and Mac HFS/HFS+/HFSX formats which can copy only data contained area that provides increased production efficiency.

  • Page 6: Hardware Overview

    Hardware Overview Front View  Back View  Power Switch and Grounding Port PC Link Power Supply...
  • Page 7 LED Indicator  LCD Configuration ...

  • Page 8: Functions Table

    Functions Table Function Descriptions Copies data from source device to targets. (There are four copy 1. Copy modes in function "6.2 Copy Area") Compares the source and targets to ensure copy accuracy. 2. Compare 3. Copy Automatically launches compare function after copy is completed. +Compare 4.1 Quick Erase Erases device(s)’...
  • Page 9 5.1 Show Disk Info. Displays basic information such as device model, name, capacity, etc. 5.2.1 Update BIOS Updates system firmware by any device at the source port or through the USB port. 5.2 Update 5. Utility System 5.2.2 Create Update HDD Prepares by formatting the device to a 2GB FAT partition to accept firmware file.
  • Page 10 6.7.1 Unknown Format Allows user to copy or skip unknown format(s). 6.7.2 Erase Master Allows user to erase the source port or not. 6.7.3 Erase Pattern Sets whether to overwrite data in one-byte or Big random data. 6.7.4 Wait HDD Time Sets device power-up buffer time when tasks are initiated.
  • Page 11 Clear HPA Setting 6.7.9 Clear Clears HPA setting during erase. HPA at ERASE Keep HPA Setting Keeps original HPA setting during erase. 6.7.10 Transfer Rate Allows user to select from UDMA2 to UDMA7. The UDMA7 is the fastest. 6.7.11 Stop Motor Time Sets device power down buffer time when tasks are completed.

  • Page 12: Functions

    Functions 1. Copy Step 1: Prepare source and target devices. Recommendation: Target device(s)’ capacity must be equal to or larger than Note the source device capacity. Step 2: Connect source and target devices. Step 3: Proceed to copy. Scroll to select "1. Copy", then press "OK" to start the duplication process. The number of working/connected targets will be displayed on LCD.

  • Page 13: Compare

    Note CRC64: During duplication, each port will simultaneously record written message and compare CRC64 between source and targets. The result will confirm a pass (green light) or fail (red light). 2. Compare Proceed to verify device(s). Scroll to select "2. Compare", then press "OK" to start the verification process. The number of working/connected targets will be displayed on the LCD.
  • Page 14 Step 2: Enter function "4. Erase" Scroll to select "4. Erase”, then press "OK" to view the 8 erase modes. Step 3: Select an Erase Function. There are a few tips to see port details during erase.  Press “▲” or “▼” to view real-time status of each port. ...

  • Page 15: Utility

    4.4 DoD EraseComp This function will erase all data per DoD 5220.22-M Standards, then verifies erasure of the connected device(s). Scroll to select "4.4 DoD EraseComp", then press "OK" to start the erasing and verification process. 4.5 7-Pass Erase This function will erase device(s) 7 times complying with DoD 5220.22-M(ECE) Standards.
  • Page 16 5.1 Show Disk Info This function will display basic information such as device model, name, capacity, etc… Scroll to select "5.1 Disk Info”, then press "OK" to view the connected device(s). Then scroll through to view connected device(s) by port number order. 5.2 Update System There are 2 system update methods.

  • Page 17: Setup

    Step2: Download Firmware Connect this device to PC. Download the latest firmware provided by U-Reach technical support, unzip the BIOS firmware, then save it to the root directory in the device. Note Ensure that the device does not have any bad sectors. Step3: Proceed to update firmware.
  • Page 18 6.2 Copy Area There are 4 submenu modes. Scroll to select "6.2 Copy Area”, then press "OK.” Then scroll through to select one of the four copy methods.  Selecting the Proper Copy Modes Example: There are two defined partitions in a 500GB device. The charts below illustrate what portion would be duplicated.
  • Page 19 Using appropriate copy modes can greatly reduce operation time and increase efficiency. There are four copy modes with different copy methods. ❶System and Files Copies data and skips empty space. Only supports standardized formats. Scroll to select "System and Files”, then press "OK" to save the copy method. Allows user to copy source device’s System and Files, instead of the entire device.
  • Page 20 Target Source Duplication Partition1 (150GB) Data 30 GB 350GB Data 30G Partition2 (200GB) 500GB Data 90GB 150GB Unallocated Partition 350GB of all Partitions along with its contents will be copied. ❸Whole Device Copies all source data bit-by-bit. Scroll to select "Whole Device”, then press "OK" to save the copy method. Copies the whole source device, irrespective of content, format, partition or empty space.
  • Page 21 ➍Percentage (%) Select percentage of source capacity to copy. Scroll to select "Percentage”, sets the upper and lower %, then press "OK" to save the copy method. Target Source Duplication 500GB 150GB Unallocated Partition Only copies the selected area. 6.3 Skip Error Skips bad sectors during Copy/ Compare/ Erase.
  • Page 22 6.4 Minimum Speed Allows user to disable or set minimum threshold speed during Copy/ Compare/ Erase. Scroll to select "6.4 Minimum Speed”, then press "OK” to set desired minimum threshold speed. The system will fail any device that does not achieve minimum speed.
  • Page 23 ❷ Skip Unknown Skip unknown format(s). Scroll to select "6.7.1 Unknown Format >> Skip Unknown”, then press "OK" to save this setting. 6.7.2 Erase Master This function allows user to enable or disable the source port for sanitization. Scroll to select "6.7.2 Erase Master”, then press "OK.” Then scroll through to select one of two settings.
  • Page 24 ❷ Big Random Data Random character written in a set of area. Scroll to select "6.7.3 Erase Pattern >> Big Random Data”, then press "OK" to save this setting. 6.7.4 Wait HDD Time Sets device power up buffer time prior to copy, erase, etc... Scroll to select "6.7.4 Wait HDD Time”, then press "OK"...
  • Page 25 6.7.7 Lock Key This function allows user to enable or disable the 4 control panel buttons. Scroll to select "6.7.5 Lock Key”, then press "OK" to access available settings. ❶ Disabled Scroll to select "6.7.5 Lock Key >> Do NOT Lock Key”, then press "OK" to save this setting.
  • Page 26  Keep Target HPA Does not copy HPA data, but keeps target device ‘s original HPA setting. Scroll to select "Keep Target HPA”, then press "OK" to save this setting.  Clear Target HPA Does not copy HPA data and clears target device’s HPA setting. Scroll to select "Clear Target HPA”, then press "OK"...
  • Page 27 ❷ Keep HPA Setting Keeps original HPA setting and data during erase. Scroll to select "6.7.9 Clear HPA at Erase >> Keep HPA Setting”, then press "OK" to save this setting. 6.7.10 Transfer Rate Allows user to select the transfer rate. Scroll to select "6.7.10 Transfer Rate”, then press "OK".

  • Page 28: Log Manager

    7. Log Manager This menu allows user to access several submenus. Scroll to select "7. Log Manager”, then press "OK" access submenus. I. Log Report Diagram Source device Info. Copy Area and Check Sum Result Date Time Lapsed Time Model No. Revision Port No.
  • Page 29 ➊ Export Today’s Log Report Export today’s log report via USB port to a USB drive. ➋ Export Recent Log Report Exports a recent log report (1-28 days) via USB port to a USB drive. ➌ Export Custom Log Report Exports a specific time period’s log report via USB port to a USB drive.
  • Page 30 Step 2: Select Date Range After entering <Open Report>, select the date range for log report. Step 3: Generate Report After selecting the date range, click <Generate Report> to generate log report. The duplicator can record up to 30,000 records of operational information off the device.
  • Page 31 There are 4 files types to choose from when saving a Log Report: Note .txt, .csv, .xml, or .pdf. Step 5: Save Log to the Specific Location Specify a name and location to save the log. Step 6: To Complete Output Log Reports After successfully creating and saving the log, the report will be in the folder in which it was saved.

  • Page 32: Real Time Pc-Monitoring

    Real time PC-Monitoring Real time PC-Monitoring is a convenient tool to monitor real time status of each working port.  Software Installation The related driver and software icons for MTS series are displayed as follows: LV07H: PC-Monitoring driver for device duplicators. PL-2303: USB-to-Serial program connects the computer’s USB-port to the duplicator’s.
  • Page 33 Step 2: Connect USB cable from computer to the duplicator. Step 3: Power on the duplicator. Step 4: Launch LV07H by double clicking on software icon "LV07H ". Before Step 4, make sure the duplicator has booted up completely.  Caution Since there will be some configuration files when launching LV07H, make ...

  • Page 34: Using The Pc-Monitoring Feature

    Using the PC-Monitoring Feature Please select only one computer to do all PC-Monitoring. This will prevent PC Note from operating other tasks simultaneously as PC-Monitoring information can rapidly synchronize. Step 1: When duplicator status indicates it’s online, open the monitoring screen. The program is ready to work when the status displays “STANDBY”.
  • Page 35 Step 3: After duplication, the program will display the average speed of each device. 7.1 Out Today Report Outputs current day log report Scroll to select "7.1 Out Today Report”, then press "OK" to output log report to a USB drive. 7.2 Out Recent Report Outputs recent log report Scroll to select "7.2 Out Recent Report”, then press "OK"...
  • Page 36 Before using function “Clear ALL Log” during PC connection, please observe the following steps: 1. Close the PC-Link software (LV07) or 2. Disconnect the duplicator from PC Caution *The PC-Link software (LV07) is designed to continuously record log reports. If user executes “clear log records”...

  • Page 37: Datasheet

    Datasheet  Product Features Features Descriptions Standalone, FPGA based operation (Non-PC based system Operation Type design). Embedded controller is designed to support capacities over ● 18TB+. Controller Design Constant improvement supports latest market available ● devices. A scalable and modular system enables expansive ownership Patented Daisy-Chain Design flexibilities.
  • Page 38  Product Functions Functions Descriptions Quick Copy (Data & System): Supports Windows, Mac, and ● Linux. 4 Copy Modes All Partitions: Users can skip HPA or unknown partitions. ● Whole Device: Copies bit-by-bit from the master device. ● Percentage Copy: Users can set percentages of capacity to be ●...

  • Page 39: Product Specifications

     Product Compatibilities Compatibilities Descriptions 1.8"/2.5"/3.5” eSATA/SATA HDDs and SSDs Compatible Devices Compatible Devices 2.5"/3.5” IDE, iVDR, mSATA SSD, MicroSATA, M.2 (NGFF), CFast, (Requires Optional and Panasonic CF-29 through CF-74. Adapters) Quick Copy Function: FAT16/32/64, Windows (NTFS), Linux ● (Ext2/Ext3/Ext4), and Mac (HFS, HFS+, HFSX). Whole Device Copy Function: All Formats, including Supported Formats ●...
