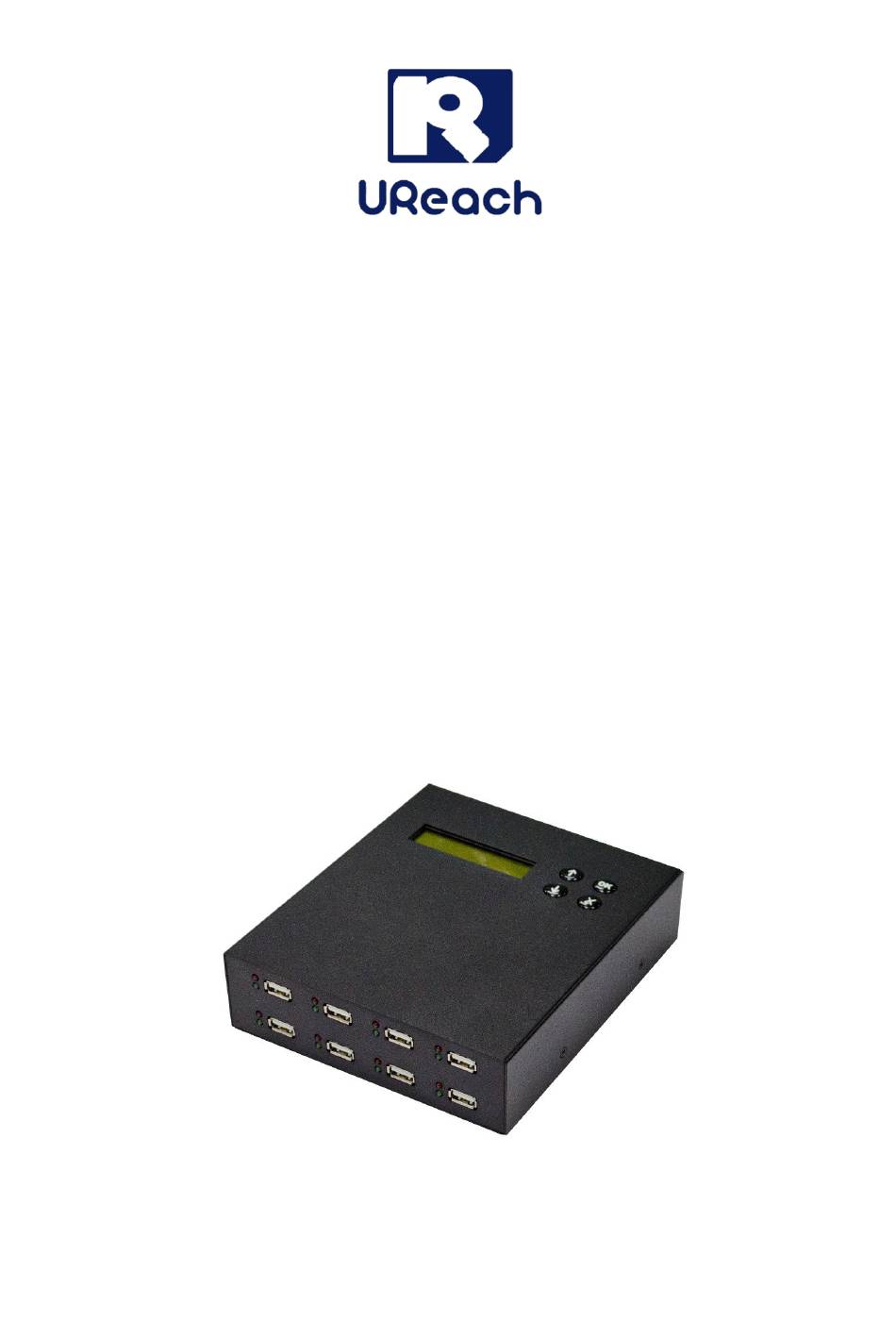

UB800/SD800
1-7
Flash Duplicator
User Manual v A.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UB800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ureach UB800

Summary of Contents for ureach UB800

  • Page 1 UB800/SD800 Flash Duplicator User Manual v A.01...

  • Page 2: Table Of Contents

    Index V A.01.1 Product Disclaimer ....................3 Warranty ........................3 Piracy Statement ...................... 3 Before You Start ....................... 4 Notice Symbols ......................4 Introduction ....................... 5 Function Table ......................7 1.Copy ........................11 2.Compare ....................... 11 3.Copy&Compare ....................12 4.Fmt+Copy+Compare ..................12 5.

  • Page 3: Product Disclaimer

    Product Disclaimer U-Reach is not accountable for any incidental or consequential damages, which includes, but is not constrained to property harm, loss of time or data from use of a U-Reach product, or any other damages attributable to product malfunction or failure (including without limitation, those attributable to: (1) reliance of the materials provided, (2) costs of product replacement, (3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of legal...

  • Page 4: Before You Start

    Before You Start Important Notice Carefully read the entire manual before operating. ⚫ Make sure the source device is correct and functioning. ⚫ Equal capacity of source and target is recommended for guaranteed data ⚫ consistency. Using the Copy+Compare function provides the most flawless duplication. ⚫...

  • Page 5: Introduction

    Introduction 1. Features Apart from inheriting the high-speed performance and well-recognized compatibility with diversified media, the flash duplicators support easy and fast duplication. Through a user-friendly interface, the flash duplicators can be operated standalone with no steep learning curve for users to climb. Their ergonomic design facilitates efficient operations by letting users easily insert and remove flash cards, and the 20%~80%-reduced footprint compared with their peers in the market has led to better space utilization and freight savings.
  • Page 6 3. Hardware Overview Front View (UB800) ⚫ Control Buttons LCD Display Source Port LED Indicators Green: Pass Red: Fail Front View (SD800) ⚫ Source Port Back View ⚫ Power Supply Power Switch...

  • Page 7: Function Table

    Function Table UB800 ⚫ Function Description 1. Copy Data only or whole media duplication. Bit-by-bit comparison between the source and all 2. Compare other copied flash medias. First copies then compares the copied flash media 3. Copy&Compare with the source immediately after the copy has finished.
  • Page 8 5.3 Full Erase Erases completely bit for bit of data on flash including format and content, takes more time. 5.4 System Update System firmware updating via the flash media. System and Files The system can automatically analyze the format of source data and only copy the data area.
  • Page 9 SD800 ⚫ Function Description 1. Copy Data only or whole media duplication. Bit-by-bit comparison between the source and all 2. Compare other copied flash medias. First copies then compares the copied flash media 3. Copy&Compare with the source immediately after the copy has finished.
  • Page 10 6.3 Full Erase Erases completely bit for bit of data on flash including format and content, takes more time. 6.4 System Update System firmware updating via the flash media. System and Files The system can automatically analyze the format of source data and only copy the data area.

  • Page 11: Copy

    1.Copy Copy 7695M 1.Copy(Data) 3% 0:27 (3)270M (3) means the Port No.3 is the slowest Copy area setting ➡ [Setup >> Copy Area] port. Before duplication, select the area of data with "Copy area". Select "System and Files" Select "Whole Media" 1.Copy(Data) 1.Copy(Whole) ⚫...

  • Page 12: Copy&Compare

    3.Copy&Compare This function is the most convenient. Instead of going to function [2.Compare] and pressing "OK" again after copying, function [3.Copy&Compare] will automatically run the compare function after copying process is finished to make sure the copied result is correct. 3.Copy&Compare Caution The user is responsible for verifying the targets’...

  • Page 13: Information

    5. Information 5.1 USB / SD Card Info. This function will show the flash media’s basic information such as file format, content size, and total capacity. Press ▲▼ buttons to check the information of each flash media including the source. Total Capacity of the Device [#01] 3871M...

  • Page 14: Utility

    6. Utility 6.1 Do Format 6.1.1 Auto Format This function is to format flash into FAT. Plug the flash media in the slot and press "OK", the system will automatically detect its capacity first and then format the media according to its capacity. ⚫...
  • Page 15 6.1.3 FAT32 Format Press "OK" to format any flash media to FAT32 format. 6.1.4 Set FAT16 Cluster Size Set the size of FAT16 cluster. 6.1.5 Set FAT32 Cluster Size Set the size of FAT32 cluster. 6.2 Quick Erase This function erases flash data while keeping the format if the original flash format is FAT16/32.

  • Page 16: Setup

    6.4 System Update Step 1: Prepare a USB/SD Card for update. Connect a USB/SD card to PC. Download the latest firmware, unzip the BIOS firmware, then save it to the root directory in the USB/SD card. Note The USB’s format must be: FAT16 or FAT32. Step 2: Proceed to update firmware.
  • Page 17 Note If the file format is non-recognizable, the system will still copy the whole flash card including the empty space even if you select "System and Files" as your copy area. ❷ Whole Media The system will copy the whole flash card, including the empty space and format.
  • Page 18 The default setting is “Normal Mode”. 7.5 Monitor Device After Copy (Available in UB800) Allows user to set a device status check after duplication. The settings could show different results because each device has various settings.
  • Page 19 copy result for reference. [Monitor Device After Copy] Total OK: 10 NG: 0 Do NOT Check 12:48 OK: 10 NG: 10 In this case, if set at “Do Check”, the copied device will power off automatically after Copy job completes and the LCD will back to the previous job. [Monitor Device After Copy] 1.

  • Page 20: Faq

    Q1.How to Prevent from Failed Duplication? ➢ Stable Devices ❶ Good Connector The adapter, extension cord, and card reader must be in good quality for proper connection. ❷ Stable Flash Use the flash devices with stable quality. ❸ Good Source Make sure your source is a good source.
  • Page 21 Q2. How do we know the data is correct after copy? A: Use the [2. Compare] function to ensure duplication accuracy. Q3. Is it possible to use an 8GB source copy to 16GB targets (source capacity less than target)? A: Yes, copying from 8GB to 16GB is doable, but the target device will become 8GB when read on PC.
  • Page 22 If source capacity is LARGER than the target, for example 16GB copy to 8GB: ❷ ▶There are two results as shown in illustrations (1) and (2) (1) When a content is within the target flash media’s capacity. Source Target Copy OK Because the data is within the 8GB area.

  • Page 23: Specification

    Specification Model No. UB800 / SD800 Target 1 to 7 Capacity Designed support capability up-to 2TB Stand-alone, FPGA-based operation (Non PC- Operation Type based) Specifications LCD Display Backlit Monochrome LCD Display LEDs 2 LED (Red/Green) Indicators per Port 4 Push Buttons(▲, ▼, OK, ESC) Control Panel Quick Copy (Systems &...
