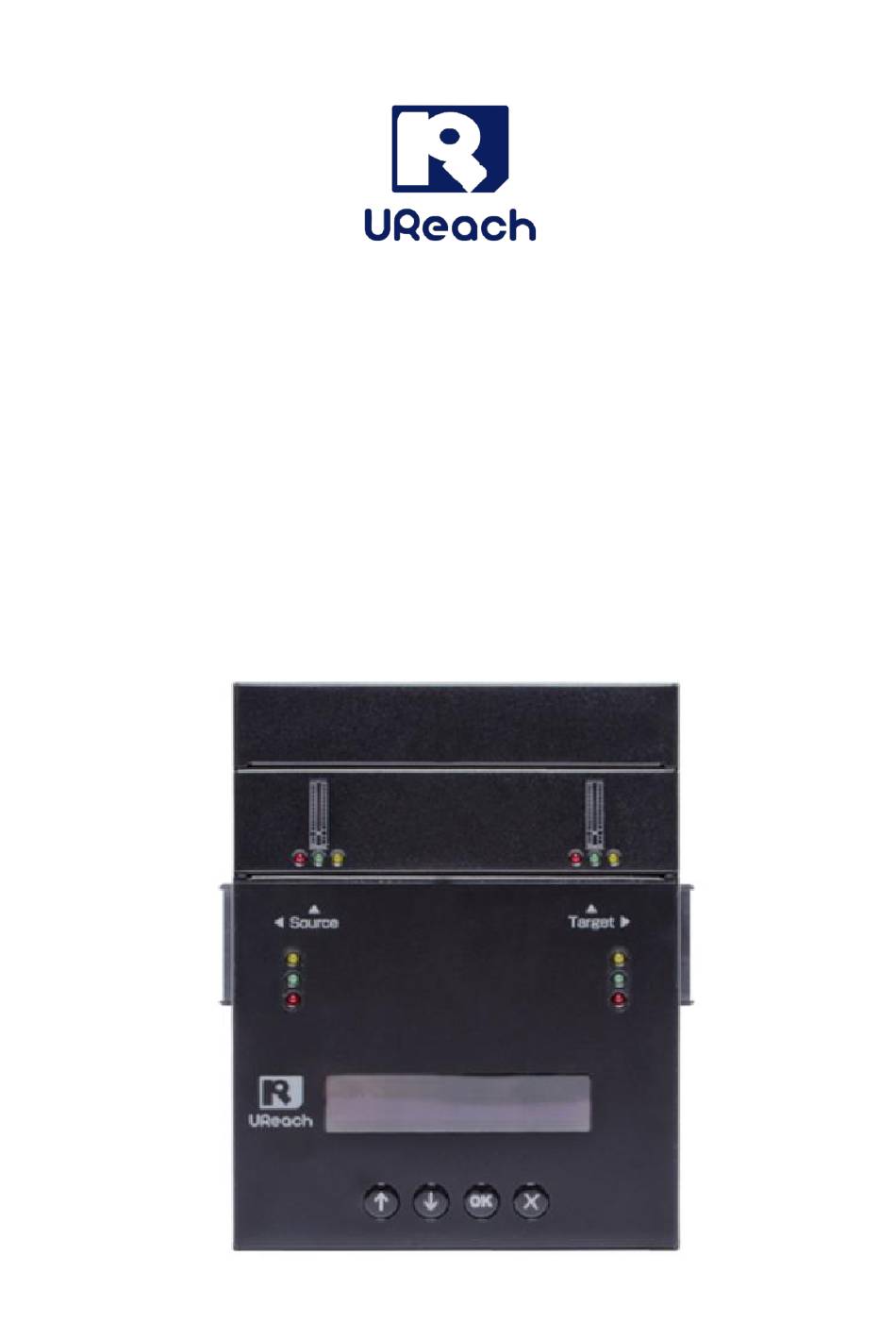

  • Page 1 NVS200 PCIE SSD Duplicator User Manual v A.01...

  • Page 2: Table Of Contents

    Index Table v A.01.2 Product Disclaimer ........................2 Warranty ........................... 2 Piracy Statement ........................2 Before You Start ........................3 Notice Symbols ......................... 3 Product Overview ........................4 Functions Table ......................... 6 Functions Description ....................... 9 1. Copy ..........................9 2.

  • Page 3: Product Disclaimer

    Product Disclaimer U-Reach is not accountable for any incidental or consequential damages, which includes, but is not constrained to property harm, loss of time or data from use of a U-Reach product, or any other damages attributable to product malfunction or failure (including without limitation, those attributable to: (1) reliance of the materials provided, (2) costs of product replacement, (3) loss of use, data or profits, (4) delays or business interruptions, (5) and any principle of legal responsibility, arising out of or in reference to the use or overall...

  • Page 4: Before You Start

    Before You Start Important Notice Carefully read the entire manual before operating. Make sure the source device is correct and functioning. Equal capacity of source and target is recommended for guaranteed data consistency. Using the Copy+Compare function provides the most flawless duplication. Damage incurred due to non-compliance with U-Reach operating instructions will void the warranty.

  • Page 5: Product Overview

    Product Overview Front View Source Port LCD Display Control Buttons Back View Power Switch Power Supply 12V 5A Adapter SD Slot For Firmware Update...
  • Page 6 Package Duplicator Power Adapter Power Cord 1 pcs 1 pcs 1 pcs SATA Cable 22pin (6cm) User Manual Gloves 1 pcs 1 pcs 1 pair mSATA Adapter IDE to SATA 2 pcs 2 pcs Adapter 2 pcs Optional M.2 Socket Module...

  • Page 7: Functions Table

    Functions Table Functions Descriptions Copies data from source device to targets. (There are four copy 1. Copy modes in function "6.1 Copy Area") 2. Compare Compares the source and targets to ensure copy accuracy. 3. Copy + Compare Automatically launches compare function after copy is completed. 4.1 Quick Erase Erases device(s)’...
  • Page 8 5.6 Calc. CRC64 Calculate the CRC64 value of the source device. 6.1.1 System and Files Copies data and skips empty space. Only supports standard formats. 6.1.2 All Partitions Copies all partitions and data, unallocated partitions 6.1 Copy Mode not included. 6.1.3 Whole Device Copies all source data, bit-by-bit.
  • Page 9 6.10 Target Tolerance Sets the capacity tolerance range between the source and target. The default setting is “No limit”. The default setting is “No”. 6.11 Clean SSD Before Copy 6.12 Restore Defaults Reinstates manufacturer settings.

  • Page 10: Functions Description

    Functions Description 1. Copy Step 1: Prepare source and target devices. 1. Recommendation: Target device(s)’ capacity must be equal to or larger than the source device capacity. Note 2. The system accepts only one source and one target for each operation. If both M.2 and SATA port have device, it will detect SATA port first.

  • Page 11: Compare

    2. Compare Scroll to select "2. Compare", then press "OK" to start the verification process. The number of working/connected targets will be displayed on the LCD. Press Note "OK" to start. 3. Copy+Compare Sequentially automates from Function 1, Copy to Function 2, Compare. Scroll to select "3.

  • Page 12: Utility

    4.3 DoD Pass This function will erase all data per DoD 5220.22-M Standards on the connected device(s). Scroll to select "4.3 DoD Pass", then press "OK" to start the erasing process. 4.4 DoD3 Pass+Compare This function will erase all data per DoD 5220.22-M Standards, then verifies erasure of the connected device(s).
  • Page 13 Scroll to select "5.1 Device Info”, then press "OK" to view the connected device(s). Then through to view connected device(s) by port number order. 5.2 System Update There are 2 system update methods. ❶ Through SD Slot Step 1: Prepare a SD card for update. Connect a SD card to a PC.
  • Page 14 Note Ensure that the device does not have any bad sectors. Step3: Proceed to update firmware. Connect this device to the source port. Scroll to select "Update BIOS”, then press "OK" to start the firmware update process. The firmware update process may take longer than 5 minutes. Please do not Caution disrupt power or process during BIOS update.

  • Page 15: Setup

    6. Setup This menu will reveal submenus related to copy area, skip bad sector, and setting language. Scroll to select "6. Utility”, then press "OK" to view the submenus. 6.1 Copy Mode There are 4 submenu modes. Scroll to select "6.1 Copy Mode”, then press "OK.” Then scroll through to select one of the four copy methods.
  • Page 16 6.1.2 All Partitions Copy or skip HPA, DCO, unknown partitions, modified formats, etc. defined by settings. Scroll to select "6.1.2 All Partitions”, then press "OK" to save the copy method. The target device’s capacity must be equal to or larger than the source device’s capacity. 6.1.3 Whole Device Copies all source data, bit-by-bit.
  • Page 17 Copies the whole source device, irrespective of content, format, partition, or empty space. This mode does not analyze the data. 6.1.4 Percentage (%) Select percentage of source capacity to copy. Scroll to select "6.1.4 Percentage”, set the upper and lower %, then press "OK" to save the copy method.
  • Page 18 The partition size of the source HDD should be smaller than target capacity. Note Otherwise, it is recommended to leave the GPT backup area intact. GPT Index Partition Disabling function “6.2 Copy GPT Backup Area” will force the duplicator to ignore this area. GPT Backup Area GPT backup areas will be rebuilt automatically the next time Windows Caution...
  • Page 19 6.3.3 Copy and Setting Copies HPA setting and data from source device to target. Scroll to select "6.3 HPA Copy Modes >> Copy All HPA”, then press "OK" to save this setting. HPA function “Copy and Setting” may change the original parameter of target Caution devices.
  • Page 20 Copy unknown format(s). Scroll to select "6.6 Unknown Format >> Copy Unknown”, then press "OK" to save this setting. ❷ Skip Unknown Skip unknown format(s). Scroll to select "6.6 Unknown Format >> Skip Unknown”, then press "OK" to save this setting.
  • Page 21 6.10 Target Tolerance This function sets the capacities tolerance range between the source and target device. If the capacity is outside the tolerance range, the copy will fail. 6.11 Clean SSD Before Copy Sets to clear SSD before copy function. The default setting is “No”. 6.12 Restore Defaults Restores all setting to manufacture defaults.

  • Page 22: Maintenance Guide

    Maintenance Guide Steps to replace M.2 socket(s) ➊ Turn off power For your safety, please turn off the power before inspecting or replacing Caution the socket. ➋ Remove the faceplate screws. Please use extreme caution while using a screwdriver to remove the Caution screws as it can easily slip and damage the surrounding area.
  • Page 23 ➍ Replace the socket(s). ➎ Replace and secure the cover plate.
