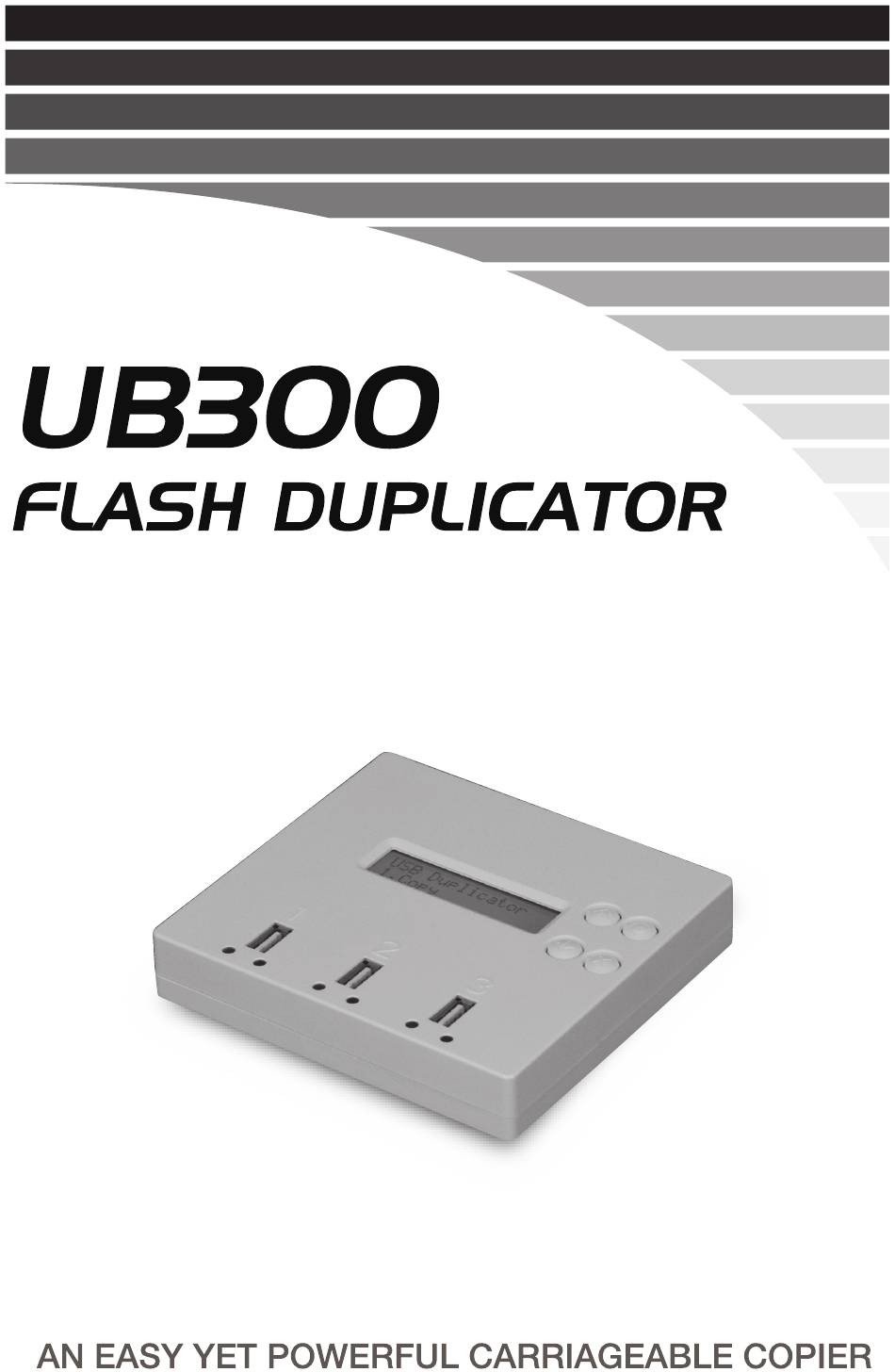

  • Page 1 USER GUIDE V 3.1 (EN)

  • Page 2: Disclaimer Of Warranties

    UREACH-INC disclaims all warranties or representations of illegal actions by users. UREACH-INC also disclaims any liability for any of losses or damages due to not be able to perform its undertakings or provide any of the services attributable to any events or circumstances beyond our control.

  • Page 3: Table Of Contents

    Content Index 6.3.4 Setup Error Limit 6.4 Quick Erase Disclaimer of Warranties 6.5 Full Erase Content Index 6.6 DoD Erase Before you start 6.7 System Update 6.8 Calc. Checksum I. Product Introduction System Setup Function 1. Overview 7.1 Start-up Menu 2.

  • Page 4: Before You Start

    Before you start Important Notice ● Read the complete operation instruction carefully contributes to better operation. ● Make sure the source device is correct and workable. ● To guarantee data consistency, strongly suggest the capacity of source and targets should be the same. ●...

  • Page 5: Product Introduction

    4. Lightweight design and user friendly with instant power on and off. 5. Support multiple Flash media: it enables you to copy multiple Flash media of SD, MS, CF through a qualified USB interface card reader. 3. Package Content UB300 Adapter...

  • Page 6: Basic Instruction

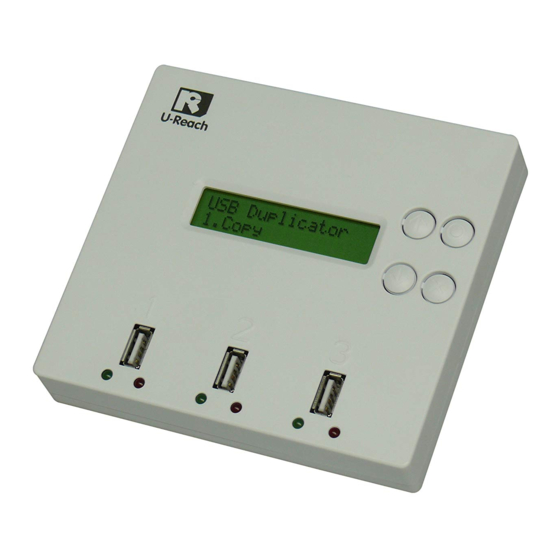

    II. Basic Instruction 1. System Overview Forward USB Master port Backward USB Target port Signal LED 2. Back Side Power Switch and Plug of the Power Supply Power supply Power switch 3. LCD Configuration Total Content Size Copy progress Copied Size Time (mm:ss)

  • Page 7: Function Table

    III. Function Table Function Description 1. Copy USB/SD/microSD/CF flash copy. This option makes bit-for-bit comparison between the source and all other copied flash 2. Compare cards. This option will make a copy first and then compare the copied Flash media with the 3.
  • Page 8 7.1 Start-up Menu To select which function is shown first when the system is turned on. 7.2.1 System and Files The system can automatically detect the format FAT16, 32/ NTFS/ Linux (ext2, ext3, ext4) and only copy the data area. 7.2 Copy Area 7.2.2 Whole Media The system will copy the whole content of flash including...

  • Page 9: Function Introduction

    IV. Function Introduction 1. COPY There are two kinds of copy modes, which are Asynchronous Copy and Synchronous Copy. The system will check the content size of the source before executing "copy" function. If the source content size is less than system's buffer memory, it will automatically start asynchronous copying.

  • Page 10: Asynchronous Copy

    3 When finishing copying, the LCD will show the total time of copy, quantity of pass and quantity of copy fail. Note ❶ When copy is processing, the green LED will flash. When the copy has finished, the green LED will stop flashing but will remain illuminated. If an error occurs, the red LED will illuminate.

  • Page 11: Compare

    2 You can repeatedly take out cards which have finished copy and plug in new flash media. The LCD will show accumulated quantity of copied pass/fail media and the media still being in process. Quantity of copy pass and copy fail The quantity of flash media in procoess Note ❶...

  • Page 12: Capacity Check

    4. Capacity Check This function can check the real capacity of Flash media. 1 Plug the Flash media into slot and select function "4.Capacity Check", then press . About 2~3 seconds, the system will find out its exact capacity. 2 System will show the checking result by Green/Red LED light. 3 You can use button to check the status of each slot.

  • Page 13: Information

    5. Information 5.1 USB Info. This function will show Flash media's basic information such as media type, content size, and total capacity. Port Number USB total capacity File content size Device Format Note Executing this function will not delete the content or format of flash media. 5.2 System Information This function will show information of the duplicator system, including model number and software version.

  • Page 14: Fat Format

    Note The source port (port#1) will not execute any formatting, because this function will delete the data of the flash media. 6.1.2 FAT Format Format any flash media to be FAT16. 6.1.3 FAT32 Format Format any flash media to be FAT32. 6.2 Measure Speed This function can measure the "read"...

  • Page 15: H3 Safe 100

    6.3.1 H3 Safe 100% This function is to check the flash's quality by reading the flash media. After executing the function, it will show the volume of bad sectors and also the reading speed of the flash device. Note This function will not delete the content or format. 6.3.2 H5 R/W 100% This function is to check the flash's quality by reading and writing the flash media.

  • Page 16: Quick Erase

    6.4 Quick Erase This function will erase flash's data content, it will not erase flash FAT16/32 format. It can use button to check each Flash Card's erasing status, progress and information. Note ❶ Quick erase function can only erase the flash which is FAT 16/32 format. ❷...

  • Page 17: System Update

    6.7 System Update This is to update the system's firmware version. Please save an un-zipped update file to your Flash media (please don't put it in a folder). Select function 6.7System update, and press , it will automatically start system updating. When finished, please turn off the system for 5 seconds and then turn on again.

  • Page 18: Whole Media

    7.2.2. Whole Media Setup the duplicator in Whole Media function, the system will copy the whole flash card, including the empty space and format. This function is used when you have a flash source which has an unknown file format. For example, a 2GB flash card which is FAT32 file format and has only 50 MB of data inside, if you setup "Whole Media", the system will copy whole 2GB of Flash.

  • Page 19: Asynchronous

    7.6 Asynchronous You can select "Disable" to close Asynchronous copy or "Enable" to open the function. If the setup is "Enable", and the data in source is smaller than system buffer memory, it will automatically use asynchronous mode to do copy. If the setting is "Disable", no matter what the content size is or copy method, the system will keep synchronous copy.

  • Page 20: Set Hdd Mode

    7.11 Set HDD Mode This is the setting when users want to copy USB-HDDs. To copy a USB-HDD, users could select "Active Mode" first and then start executing other operation. Or, if users just want to copy USB devices but not USB-HDD, just select "Inactive mode". Note The reason to make this setting before copying USB-HDD is not only because USB-HDD requires more power but also because it has different file format with USB flash stick.

  • Page 21: Faq

    V. FAQ Q1: Can I use UB300 to copy other Flash devices such as micro SD? A1: Some users may use a USB card reader to copy other different types of Flash device, such as SD, CF, and Memory Stick etc. Due to the quality and stability of USB card reader in market are different, a poor-quality card reader may damage the system and the quality of copy.

  • Page 22: Specification

    VI. Specification UB300 Model Target Stand alone Operation USB1.1 / USB2.0 SD / SDHC / Micro SD / MMC / Mini SD / CF Support media (by USB multimedia card reader) 2*16 Monochrome LCD display Display 4 push buttons ( Forward , Backward, OK, Esc)
