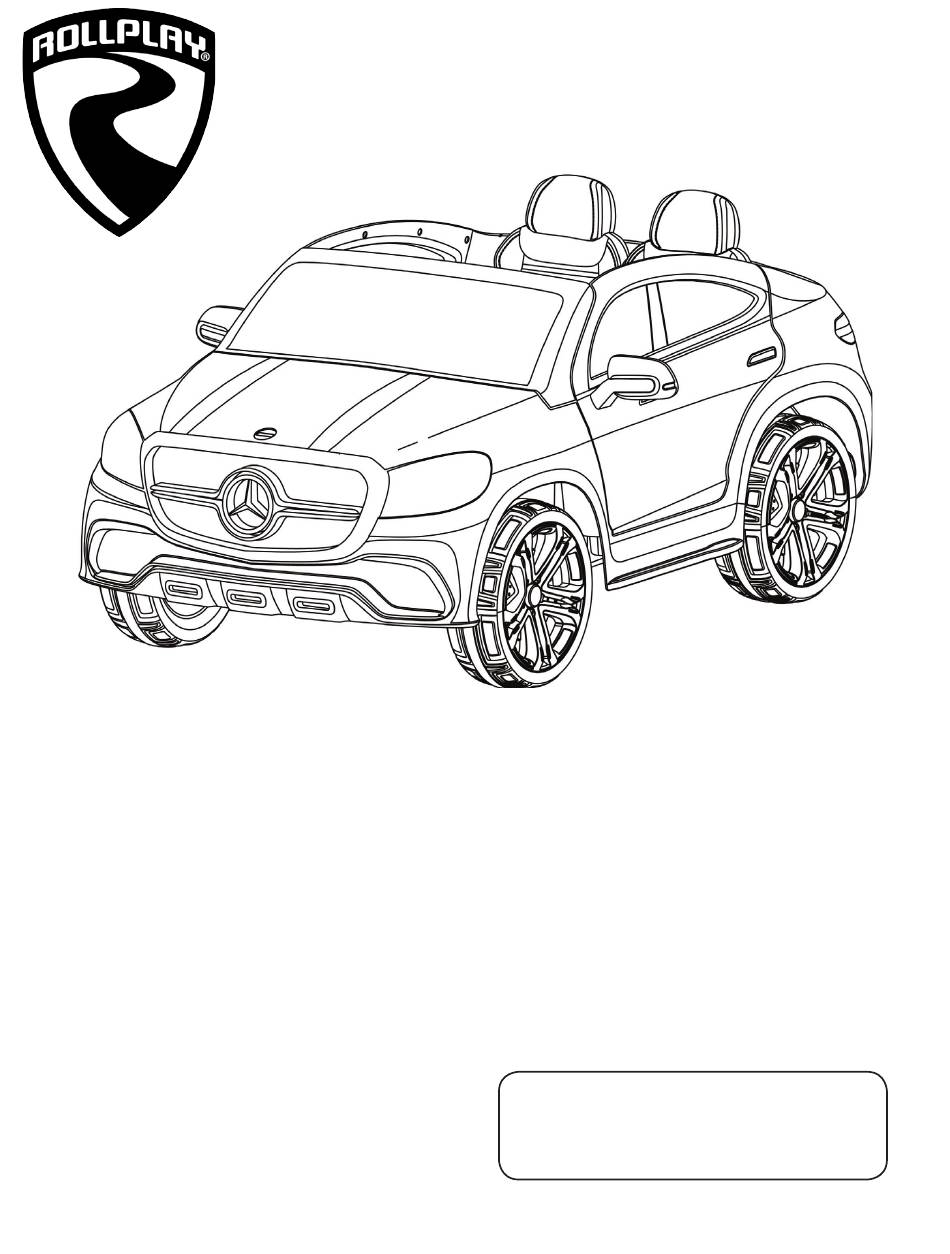

12V Mercedes GLE Coupe
Owner's Manual and Assembly Instructions
Model #: W48912AC, W48912AC-F
Read and understand the entire manual before assembly and operation. The vehicle must be
assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colors may vary. Do not return to store. Call 1-888-982-9309 for assistance and
replacement parts.
IMPORTANT:
Save this manual with your sales receipt.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W48912AC-F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rollplay W48912AC-F

Summary of Contents for Rollplay W48912AC-F

  • Page 1 12V Mercedes GLE Coupe Owner’s Manual and Assembly Instructions Model #: W48912AC, W48912AC-F Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions. Made in China.
  • Page 2 Introduction Thank you for purchasing this Rollplay vehicle from Rollplay. We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase.
  • Page 3 Call Customer Service if you need assistance or replacement parts. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.net as we may require proof of purchase. 1-888-982-9309 Read this entire manual to ensure proper assembly and safe operation of the vehicle.
  • Page 4 This page is intentionally left blank.

  • Page 5: Table Of Contents

    Table of Contents Safety ............6 Parts ............8 Charging Instructions .......9 Assemble the Front Wheels ....10 Assemble the Rear Wheels .....11 Assemble the Doors ........12 Attach the Dashboard ......13 Insert the Steering Rod ......14 Attach the Steering Wheel ......15 Attach the Mirrors ........16 Battery Attachment .........17 Attach the Seat ........18 Operation Instructions ......19...

  • Page 6: Safety

    Safety WARNING: SAFETY RIDING RULES The user must follow all safety rules and guidelines, or serious injury or death may occur to the user. • Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 59 kg (130 lbs). •...
  • Page 7 Safety (Continued) WARNING: BATTERY SAFETY • Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery. •...

  • Page 8: Parts

    Parts Helpful Tip: Parts 18-20, 24 are located in the blister pack Spare parts included: 1 Screw Parts 22 - 23 are located on the wheel axles 1. Manual 11. Steering Rod 21. Wrench 2. Charger 12. Front Wheel (2) 22.

  • Page 9: Charging Instructions

    Charging Instructions YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER. Connect the Battery: 1. Ensure the vehicle is stopped and turned off. 2. Unlock and remove the seat. 3.

  • Page 10: Assemble The Front Wheels

    Assemble the Front Wheels 1. Take the protective plastic sleeve off the front wheel axle. 2. Remove the lock nut (23) and washers (22) from the front axle. 3. Slide a washer (22) onto the axle. 4. Slide the front wheel (12) onto the axle with the slots facing outward. 5.

  • Page 11: Assemble The Rear Wheels

    Assemble the Rear Wheels Helpful Tip: If you encounter trouble fitting both wheels onto the rear axle, then your rear wheel axle may need to be realigned. Remove one of the wheels. Slide the axle toward the side of the vehicle that needs more room.

  • Page 12: Assemble The Doors

    Assemble the Doors 1. Align the door (10) with the interior facing the inside of the car. 2. Position the post on the bottom of the door over the hole on the car body, and slide the post into the hole. 3.

  • Page 13: Attach The Dashboard

    Attach the Dashboard 1. Locate the front wire connector on the car body. Connect the bottom dashboard connector to the front wire connector. 2. Carefully slide the wire assembly into the car body. 3. Insert the slots on the dashboard assembly into the holes on the car body, and snap the dashboard assembly into place.

  • Page 14: Insert The Steering Rod

    Insert the Steering Rod 1. Flip the car onto its side. 2. Insert the straight end of the steering rod (11) into the steering rod hole on the underside of the dashboard. The steering rod should slide all the way through the dashboard. 3.

  • Page 15: Attach The Steering Wheel

    Attach the Steering Wheel 1. Connect the top dashboard connector to the steering wheel connector. Slide the wire assembly into the steering wheel column. 2. Slide the steering wheel (4) onto the steering rod. Note: Ensure that the steering rod is pushed all the way through the dashboard. 3.

  • Page 16: Attach The Mirrors

    Attach the Mirrors 1. Locate the right mirror (8). 2. Snap the right mirror onto the passenger’s side of the car. 3. Locate the left mirror. 4. Snap the left mirror onto the driver’s side of the car.

  • Page 17: Battery Attachment

    Battery Attachment 1. Attach the battery connector to the engine connector. Place the connectors and wires in the slot area 2. Important! Before using the car for the first time, the battery needs to be charged for a full 24 hours...

  • Page 18: Attach The Seat

    Attach the Seat 1. Align the seat over the battery compartment. 2. Ensure the lock mechanism is in the unlock position. 3. Slide the hooks on the back of the seat into the slots on the car body. 4. Turn the thumbscrew clockwise until it faces the lock position to properly secure in place.

  • Page 19: Operation Instructions

    Operation Instructions 1. Power Button: Push the power button to turn on the car. The button will light up when the car is on. Push the button to turn off the car. 2. Foot Pedal: Press the foot pedal to move. Release the foot pedal to stop. The front headlights will turn on when the car is in forward motion.

  • Page 20: Maintenance

    Maintenance Important Battery and Charger Information • Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children. • Charge the battery for 24 hours before using the vehicle for the first time.

  • Page 21: General Care

    General Care • Regularly inspect all vehicle parts to ensure they are in good working condition. • Regularly inspect the charger, cord, plug, and other related parts for damage. • Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service information on Page 26. •...

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide Completely read through the manual and troubleshooting guide before contacting Customer Service. Problem Potential Cause Solution Vehicle does not run Battery is low Recharge the battery Thermal fuse tripped Reset fuse Snap pins are loose Tighten snap pins Loose wires or loose Ensure the battery connectors connectors...
  • Page 23 Problem Potential Cause Solution Vehicle needs a push to Loose wires or loose Ensure the battery connectors start connectors are securely attached. If wires are loose, contact Customer Service “Dead spot” on motor A “dead spot” means electricity is not being delivered to the terminal.

  • Page 24: Service And Repairs

    Hours: 9 AM - 5 PM (CST), Monday - Friday 888-982-9309 Phone: 1- Email: customerservice@rollplay.net Web: www.rollplay.net For a list of available replacement parts, please visit www.rollplay.net. WE WILL REQUIRE PROOF OF PURCHASE. Please save your sales receipt or register your product at www.rollplay.net.

  • Page 25: Warranty

    This warranty does not cover, and is not intended to exclude any liability on the part of Rollplay, whether under this warranty or implied by law for any indirect or consequential damages for breach of warranty. Some states may not allow the exclusion or limitation so this limitation may not apply to you.

  • Page 26: Product Registration

    Address: City: State/Province: Postal Code: Email: Phone: Date of Purchase: The following product information is on the cover of the owner’s manual. Product Name: Model Number: Serial Number: Place of Purchase: Questions or comments? Contact us at www.rollplay.net or 1-888-982-9309...

This manual is also suitable for:

W48912ac

Table of Contents
