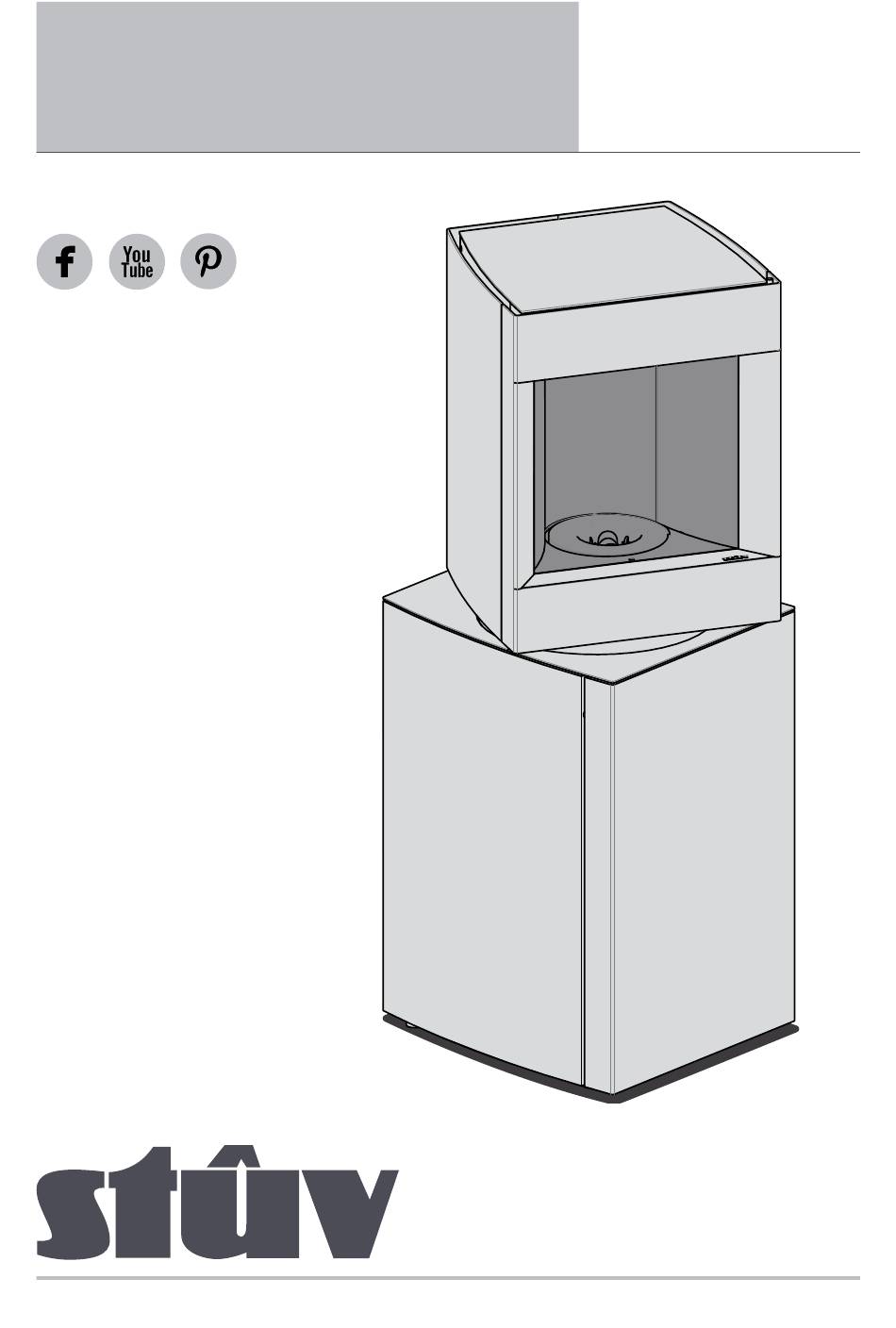

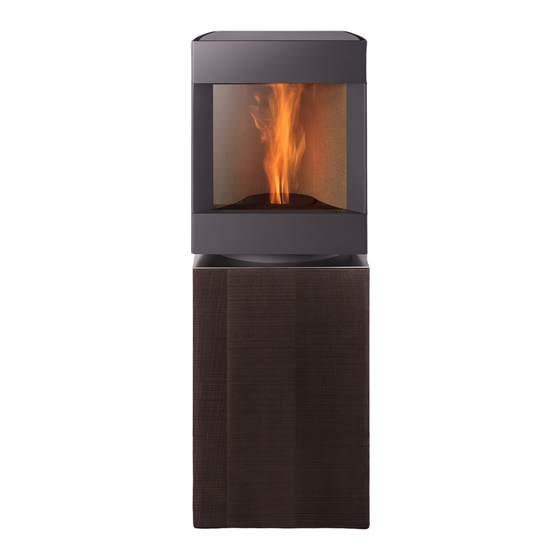

  • Page 1 To give to the user Directions for use Please see our website for more information: www.stuv.com Find us also on: P-10 June 2015 164981 > ...
  • Page 2 WELCOME TO THE WORLD OF STÛV! You have just opted for an eco-friendly, high-performance heating system. We hope that you enjoy using it from this moment on. You will find advice and instructions for the use and maintenance of your Stûv in this document.

  • Page 3: Table Of Contents

    Description of the remote control menu Lighting the Stûv P-10 2 usage modes: manual mode vs. calendar mode Using manual mode Using calendar mode Configuring calendar mode Shutting down the Stûv P-10 MAINTENANCE Daily maintenance Weekly maintenance Annual maintenance Annual maintenance IN CASE OF PROBLEMS...

  • Page 4: Presentation Of The Product

    Recommended draught at maximum power 6 Pa Recommended draught at minimum power 3 Pa Minimum draught at the output of the appliance for flue calculation. 0 Pa Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 5: Stûv P-10 Marking

    > Cast steel for the structural elements of the burner > Aluminium for the smoke extraction flue > HDPE for the Pellet hopper Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 6: Dimensions

    Dimensions wood and “to be sheet metal version trimmed” version 1400 Ø 60 Ø 80 Ø 60 wood and “to be trimmed” version sheet metal version Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 7: Overview Of The Stove Components

    R. Pellet hopper J1.2 S. Electronic card T. Ashpan U. Reloading hatch V. Front cover *Facings are available in two versions. The illustration shows one side of each finish. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 8: How Does Your Stûv P10 Work

    Stûv P-10 will adjust its output and maintain this by adjusting: - The quantity of pellets burned [diagram 3] - The quantity of air supplied to combustion [diagram 4] Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 9: Fuel

    - min-max length: 3 - 40 mm - moisture content: ≤ 10 % - ash content: ≤ 7% Pellet storage Pellets must be stored in a dry Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 10: Use

    Every Stűv P-10 is subjected to a factory check. There may be traces of combustion or light residues after this test. General recommendations Important! Caution! The appliance is not designed to be This stove should have been installed The stove should be used in used with cooking utensils.

  • Page 11: Recommendations Before First Use

    (it might in particular be more intense than normal). > Turn on the appliance by following the steps outlined in the “Lighting the Stûv P-10" Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 12: Initial Cautions

    "Shutdown" mode. The ideal is to wait until the sensor emits a sound to fill the tank with a 15kg bag. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 13: Managing The Remote Control

    It is also used to go into an option or submenu, confirming the choice highlighted. Increase/Move up Decrease/Move down Warning! Only use rechargeable batteries in the remote control! Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 14: Description Of The Remote Control Menu

    Relative value calculated from the value “Flux (Pa)” in order to regulate the smoke Flux IN: Flux IN: Flux (Pa): Flux (Pa): 19,0 19,0 extraction fan Negative pressure at the air intake Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 15 GENERAL SETTINGS GENERAL SETTINGS LANGUAGE SETTING EXIT EXIT DATE/TIME SETTING DATE/TIME SETTING English SCREENSAVER SCREENSAVER PROBE REMOTE CONTROL PROBE REMOTE CONTROL LANGUAGE SETTING LANGUAGE SETTING LOGS LOGS Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 16 When the setting is “ON”, the appliance can automatically reduce heating power if the temperature of the room rises too fast (e.g. if another heater is run in parallel). REGLAGES GENERAUX SMART MODE ENREGISTREMENTS SERVICE SMART MODE Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 17 Never touch the ashpan whe the appliae is operating (risk of burns). Check carefully that there are no unburned pellets in the ashpan at the time the appliance is lit. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 18: Lighting The Stûv

    This is normal and is due, for various reasons, to slower burning of the pellets (e.g. slightly damp pellets etc.) Once the flame appears, all the smoke will disappear. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 19: Usage Modes: Manual Mode Vs. Calendar Mode

    THERMO REGULATION ROOM TEMPERATURE ROOM 1 18.0°C PRESET TEMPERATURE 24.0°C WEDNESDAY 01/07/15 12:00 25.0°C Plevel 10 NORMAL THERMO REGULATION POWER SET Plevel 10 NORMAL Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 20: Using Calendar Mode

    . L'indicateur d'activation du mode calendrier se trouve en bas à gauche de l'écran de la télécommande [schéma 3]. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 21: Configuring Calendar Mode

    CALENDAR SETTING EXIT EXIT CALENDAR ENABLING CALENDAR ENABLING COMFORT SETTING COMFORT SETTING NORMAL SETTING NORMAL SETTING ECONOMY SETTING ECONOMY SETTING COMFORT SETTING CALENDAR SETTING CALENDAR SETTING TEMPERATURE 25.0°C Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 22 CALENDAR ENABLING EXIT EXIT CALENDAR ENABLING NORMAL COMFORT SETTING DATE/TIME SETTING 1 NORMAL SETTING DATE/TIME SETTING 2 DATE/TIME SETTING 3 ECONOMY SETTING CALENDAR SETTING DATE/TIME SETTING 4 Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 23: Shutting Down The Stûv

    ( +- 1 hour 45 min) to be able to restart it. During this time, the appliance remains hot and will continue to radiate heat. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 24: Maintenance

    In all cases, do not remove ash when the Stûv P-10 is in the “Loading”, “Lighting 1, “Lighting 2” and “Balancing” phases. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 25: Weekly Maintenance

    (risk of burns). Ensure that the embers and ashes are cold before disposing of them in a container that can be burned or melted. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 26 Weekly maintenance (continued) If you need to operate the grille or remove the ashpan when the appliance is hot, do these various operations using the control key. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 27 Do not open the door of the lantern while the unit is hot. Cleaning the ash removal grille > Remove the vermiculite ring. > Remove the flame modeller. > Vacuum the grilles. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 28: Annual Maintenance

    - Clean the heat exchanger. - Sweep the flue. - Check the door seal. - Check the extractor seal. - Check and clean the various elements of the burner. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 29: Annual Maintenance

    Annual maintenance Date Engineer Comments Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 30: In Case Of Problems

    This alarm indicates a malfunction of the primary screw or its speed sensor. 20.0°C If this alarm is displayed: Al. auger1 > Allow the appliance to go out. NORMAL > Contact your installer. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 31 > If you perform a long ash removal when the device is in safe mode, NORMAL restart the stove once the Stûv P-10 has cooled down. Caution! Do not remove ash or empty the ashpan when the appliance is operating.
  • Page 32 > Allow the appliance to go out. NORMAL > Check the sealing of the door and the various seals. > Check that the flue is not clogged. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 33 Alarm signals (continued) If you encounter a problem or if you notice any deterioration, please contact your installer, telling them your serial number. P-10 Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 35 Declaration of performance EU 305/2011 Stûv P-10 Domestic wood pellet heating appliance complying with the EN 14785 : 2006 standard Recommended fuel: Wood pellets only Manufactured by: Stûv s.a Rue Jules Borbouse, 4 B-5170 Bois-de-Villers Tél: +32(0)81.43.47.96 - Fax: +32(0)81.43.48.74 info@stûv.com www.stuv.com...

  • Page 36: The Extension Of The Stûv Guarantee : A Simple Procedure For More Peace Of Mind

    – faults with the paintwork on the The replacement components visible external parts of the stove supplied under the guarantee are guaranteed for the remainder of the guarantee period. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 37: Guarantee Form

    * This is indicated on an information plate attached to the body of the fireplace, see section “Where is the serial number?”. ** Stûv s.a. reserves the right to request a copy of the invoice for proof. Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...

  • Page 39: Contacts

    Importer for the UK Jet Master Fires Ltd – Unit 2 Peacock trading Estate, Goodwood Rd Eastleigh, SO50 4NT, Hampshire T +44 2380 629 513 sales@jetmaster.co.uk www.jetmaster.co.uk Stûv P-10 - directions for use [en] - 08/15 SN 164981 - ...
  • Page 40 However, we do not accept responsibility for any errors that may have been made. Contact your distributor or visit www.stuv.com Editor: Gérard Pitance - rue Jules Borbouse 4 - 5170 Bois-de-Villers - Belgium 93104740 - directions for use - Stûv P-10...
