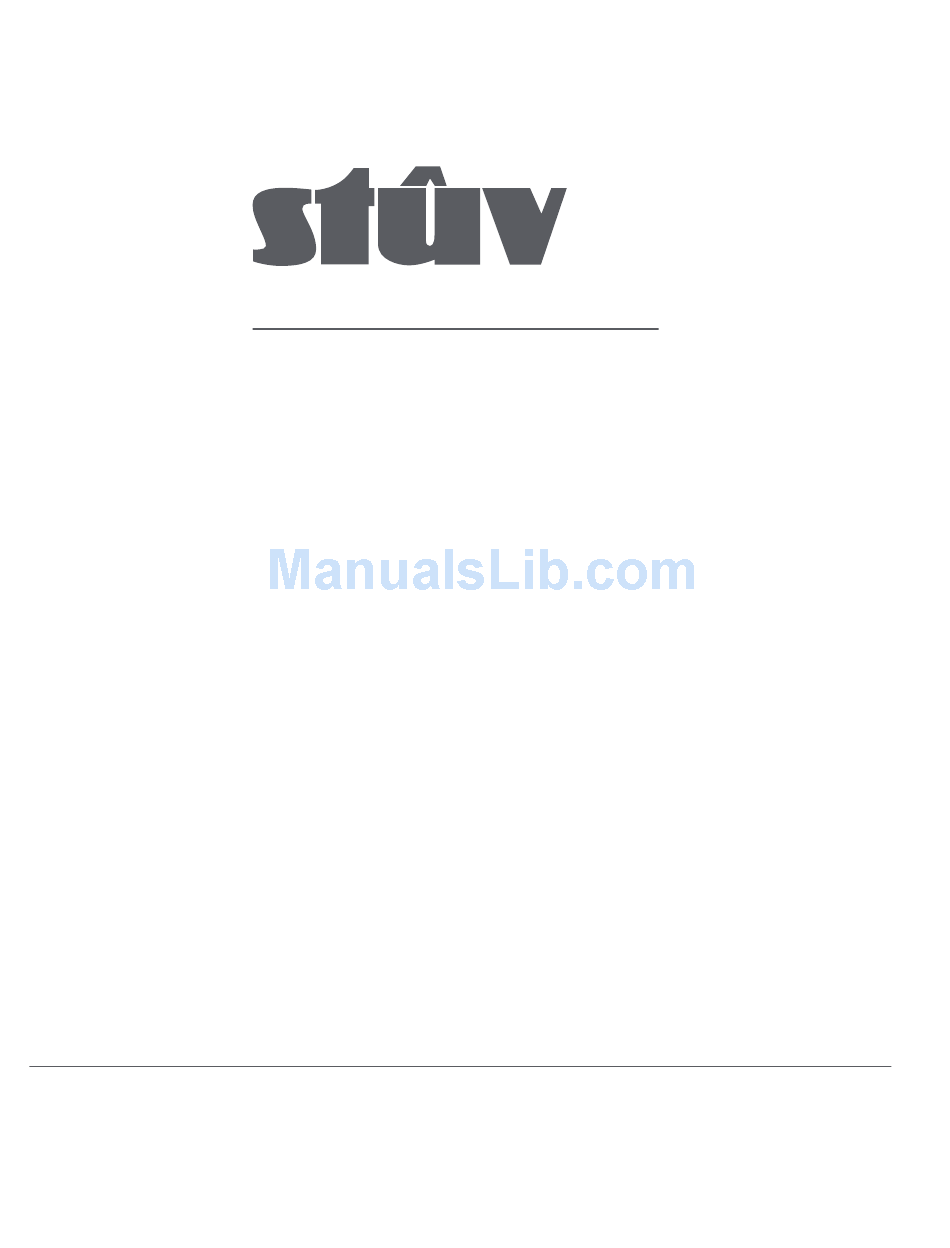

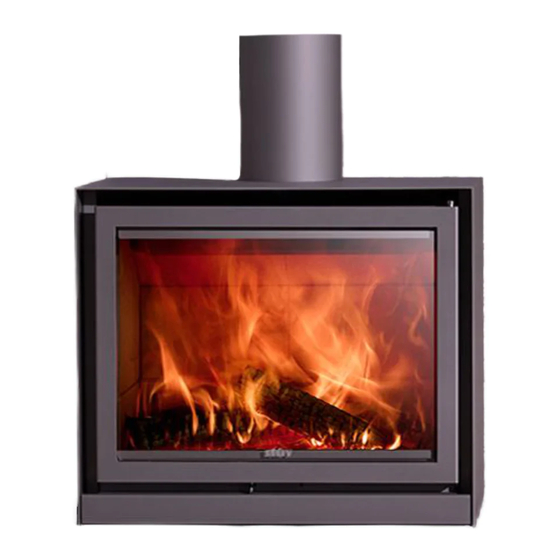

- Page 1 A STATE OF MIND Wood-burning stoves / Poêles à bois STÛV 16-Cube INSTALLATION, USER AND SERVICING INSTRUCTIONS INSTALLATION, MODE D’EMPLOI ET MAINTENANCE DECEMBER / DECEMBRE 2015...
- Page 2 STÛV WOOD-BURNING STOVES INSTALLATION / STÛV INSTALLATION POÊLES À BOIS...
-
Page 3: Table Of Contents
CONTENT TABLE DES MATIÈRES 1 STANDARDS, SAFETY AND TECHNICALS 1. NORMES, SÉCURITÉ ET CARACTÉRISTIQUES SPECIFICATIONS TECHNIQUES 1.1 MARKING 1.1 ÉTIQUETTE 1.2 STANDARDS, CERTIFICATIONS AND TECHNICAL 1.2 INSTRUCTIONS DE SÉCURITÉ ET LÉGALES SPECIFICATIONS 2. TECHNICAL SPECIFICATIONS 2. SPÉCIFICATIONS TECHNIQUES 2.1 PERFORMANCES 2.1 PERFORMANCES 2.2 DIMENSIONS &... -
Page 4: Marking
1. Standards, certifications 1. Normes, sécurité et and markings caractéristiques techniques 1.1 marking 1.1 étiquette STÛV WOOD-BURNING STOVES INSTALLATION / STÛV INSTALLATION POÊLES À BOIS... - Page 5 à effectuer. The stuv 16-CUBE-H models are made in Belgium by Les modèles STÛV 16-CUBE-H sont fabriqués en STÛV S.A., www.stuv.com. They exist in three different Belgique par STÛV S.A., www.stuv.com. Ils existent en sizes : 16/58, 16/68 and 16/78.
- Page 6 The installation instructions for your wood stove are Les instructions concernant l’installation de votre poêle à compliant with the ULC-S627 et UL-1482 standards. bois sont conformes aux normes ULC-S627 et UL-1482. They must be strictly followed in order to prevent any Vous devez les suivre rigoureusement afin d’éliminer risk of major problems.
-
Page 7: Technical Specifications
Connecteur à double parois de 6” ou de 7” Unit weight: Poids de l’unité : + 16/58-cube: 232 lbs | 16/58-H: 300 lbs + 16/58-cube: 232 lbs | 16/58-H: 300 lbs + 16/68-cube: 249 lbs | 16/68-H: 324 lbs + 16/68-cube: 249 lbs | 16/68-H: 324 lbs... -
Page 8: Dimensions & Clearances
2.2 Dimensions & clearances 2.2 Dimensions et dégagements The clearances are indicated for all types of Les dégagements indiqués sont pour tout matériaux combustible materials (e.g.: wood, gypusm, etc.) combustible (ex.: Bois, Gypse, etc.). + Front clearance: 48” + Dégagement avant : 48” + Rear clearance: 7”... - Page 9 18" 18" 18" 7" 7" 7" > ” < H < ” 6 1/2” < H < 8 1/2” loor protector loor protector loor protector Protection de sol non- loor protector Protection de sol Protection de sol combustible Protection de sol non-combustible non-combustible non-combustible...
-
Page 10: Combustion Air Inlet
2.3 Combustion air inlet 2.3 Arrivée d’air pour la combustion The stove requires air for combustion (particularly when poêle besoin d’air pour combustion installed in air-tight house). (particulièrement lorsqu’il est installé dans des maisons très étanches). The ideal solution La solution idéale The Stûv 16 is designed to be directly connected to an outside air inlet (independent of the air in the house). - Page 11 The duct that brings in outside air… (whether it is Le conduit qui amène l’air extérieur... (qu’il soit connected to the free standing fireplace or not) connecté au foyer ou pas) ... will be protected on the outside by a grill where the free ...
-
Page 13: Load Bearing Capacity Of The Structure
2.5 Load bearing capacity of the 2.5 Capacité portante de la structure structure Ensure that the floor is resistant enough to support the S’assurer que la résistance du plancher soit suffisante stove; consult a specialist if in doubt. pour supporter le foyer ; en cas de doute, consulter un spécialiste. -
Page 14: Installation
3. Installation 3. Installation 3.1 On taking delivery of the equipment Please note ! Upon receipt of this fireplace, please ensure than the glass door has not been damaged during delivery. The guarantee only covers damage due to transport if it is reported within 48 hours of delivery and it is indicated on the delivery slip [picture 1]. -
Page 15: Unpacking
3.2 Unpacking Please note ! The paint is not oven baked and is therefore relatively fragile but will harden after being heated a few times. Handle the system with care when installing. Checking the order Where accessories have been ordered (frame, support,…), they will be found around the hearth or its packaging. - Page 16 3.2 Unpacking Before moving the stove Dismantle the door: unfasten the resisting spring [photo 2], then remove it, Lift off the cover + remove the 4 screws on either side of the door [photo 3], + remove the upper part of the cover from the freestanding fireplace.
-
Page 17: The Support Plate
Moving the stove + using a pallet truck: leave it on its pallet, + using a hand truck: insert some cardboard to protect the back of the stove, turn the stove onto its back, leave the pallet in its position, + by hand: take hold of the stove at the front [photo 8] and at the back [photo 9]. -
Page 18: Combustion Air Connection
3.5 Combustion air connection Air drawn from outside If the stove is positioned on a Stûv base with a drawer or on a Stûv 16 H base, please consult the instructions which come with these accessories. The combustion air is drawn from outside by means of a duct [diagram 1] connected to the support plate. -
Page 19: Positioning Of The Appliance
Combustion air is drawn from the room where the stove is installed Make sure there will be adequate air renewal once the stove is operating. Remove all of the covers of the support plate [photo 8]. 3.6 Positioning of the wood heater Place the stove onto the plate. - Page 20 Put on the cover [photo 5]. The hole cut in the cover should be centred in relation to the stove’s smoke outlet. Attach the cover using the 4 screws at the front [photo 6], starting with the lower screws. The upper part of the cover has to be fixed to the stove using a bolt provided for this purpose [photos 7 and 8].
-
Page 21: Installation Of The Panel
3.7 Installation of the panel The panel is the part which protects the mechanisms in the lower part of the stove [photo 1]. The flap fits onto the stop screw [pic. 2-b] and pivots on the screw [c]. Adjust the screw [pic. 3] on the righthand side of the flap (holding the magnet) so that: - the magnet has sufficient force of attraction, - and that the flap is vertical in a closed position. -
Page 22: When The Installation Of The Freestanding Fireplace Is Complete
3.9 When the installation of the freestanding fireplace is complete… ... Carry out a test to ensure it is working correctly. Before this test, ensure no items involved in installation have been left in the combustion chamber or in the bends (spray paint, tubes of grease, tools). -
Page 23: Burn Rate Adjustment
4. Use 4. Utilisation 4.1 Burn rate adjustment 4.1 Ajustement de la vitesse de combustion This is a “single burn rate” unit. No adjustment needed. Vitesse de combustion unique, pas de réglage. Le foyer Nice looking, heating and for the environment not est réglé... -
Page 24: Replacement Of The Glass
5. Maintenance 5. Maintenance 5.1 Replacement of the glass 5.1 Remplacement de la vitre • Stûv 16/58 15’ 46298 > ... • Stûv 16/68 46237 > ... • Stûv 16/78 46306 > ... 14006014 14006015 14006016 S1658 kit vitre + joint S1668 kit vitre + joint S1678 kit vitre + joint STÛV WOOD-BURNING STOVES INSTALLATION / STÛV INSTALLATION POÊLES À... - Page 25 Replacement of the glass Remplacement de la vitre Explications pour le changement de vitre (voir photos) : How to change the glass (see pictures): 1. Ouvrir la vitre 1. Open the door 2. Défaire le ressort 2. Unlock the spring 3.
-
Page 26: Replacement Of Door Gasket
5.2 Replacement of door gasket 5.2 Remplacement du joint de porte • Stûv 16/58 5’ 97851 > ... • Stûv 16/68 98051 > ... • Stûv 16/78 98601 > ... 14005049 14005050 14005051 S1658 door gasket S1668 door gasket S1678 door gasket S1658 joint de porte S1668 joint de porte S1678 joint de porte... -
Page 27: Manufacturer's Guarantee
6. THE STÛV GUARANTEE : 6. La garantie Stûv : A SIMPLE PROCEDURE FOR MORE UNE DÉMARCHE SIMPLE POUR PLUS PEACE OF MIND. DE TRANQUILLITÉ. This fireplace has been designed to offer you maximum Ce foyer a été conçu pour vous offrir un maximum de pleasure, comfort and safety. - Page 28 Stûv fireplaces are guaranteed against : Les foyers Stûv sont garantis contre : + manufacturing faults, + les défauts de fabrication, + faults with the paintwork on the visible external + les défauts de peinture dans les parties parts of the stove. extérieures visibles du foyer.
-
Page 29: Guarantee Certificate
Acceptance Of Works And Warranty Form PLEASE COMPLETE IN BLOCK CAPITALS. The purchaser Safety guidelines Surname ______________________________________________________________ The use of this system has to comply with the installer’s recommendations First name _____________________________________________________________ and the manufacturer’s instructions which are set out in the directions Address where works were carried out ___________________________________ for use issued to the customer with Post code _____________________________________________________________... -
Page 30: Certificat De Garantie
Acceptation du travail et formulaire de guarantie COMPLÉTER EN LETTRES MAJUSCULES. L’acheteur Mesures de sécurité Prénom _______________________________________________________________ L’utilisation de ce système doit être conforme aux recommendations de Nom __________________________________________________________________ l’installateur et les instructions du manufacturier qui sont inclus dans Adresse où le travail est effectué ________________________________________ directives d’utilisation inclus... - Page 31 Remarques / Remarks: DECEMBER / DECEMBRE 2015...
- Page 32 Stûv fireplaces are designed and manufactured by : Stûv sa - Belgique www.stuv.com In North America : Stûv America inc. 4747, rue Bourg Montreal QC H4T 1H9 - Canada T 514 396 9463 - F 514 528 9538 - toll free 1 866 487 7888 info@stuvamerica.com - www.stuvamerica.com...
