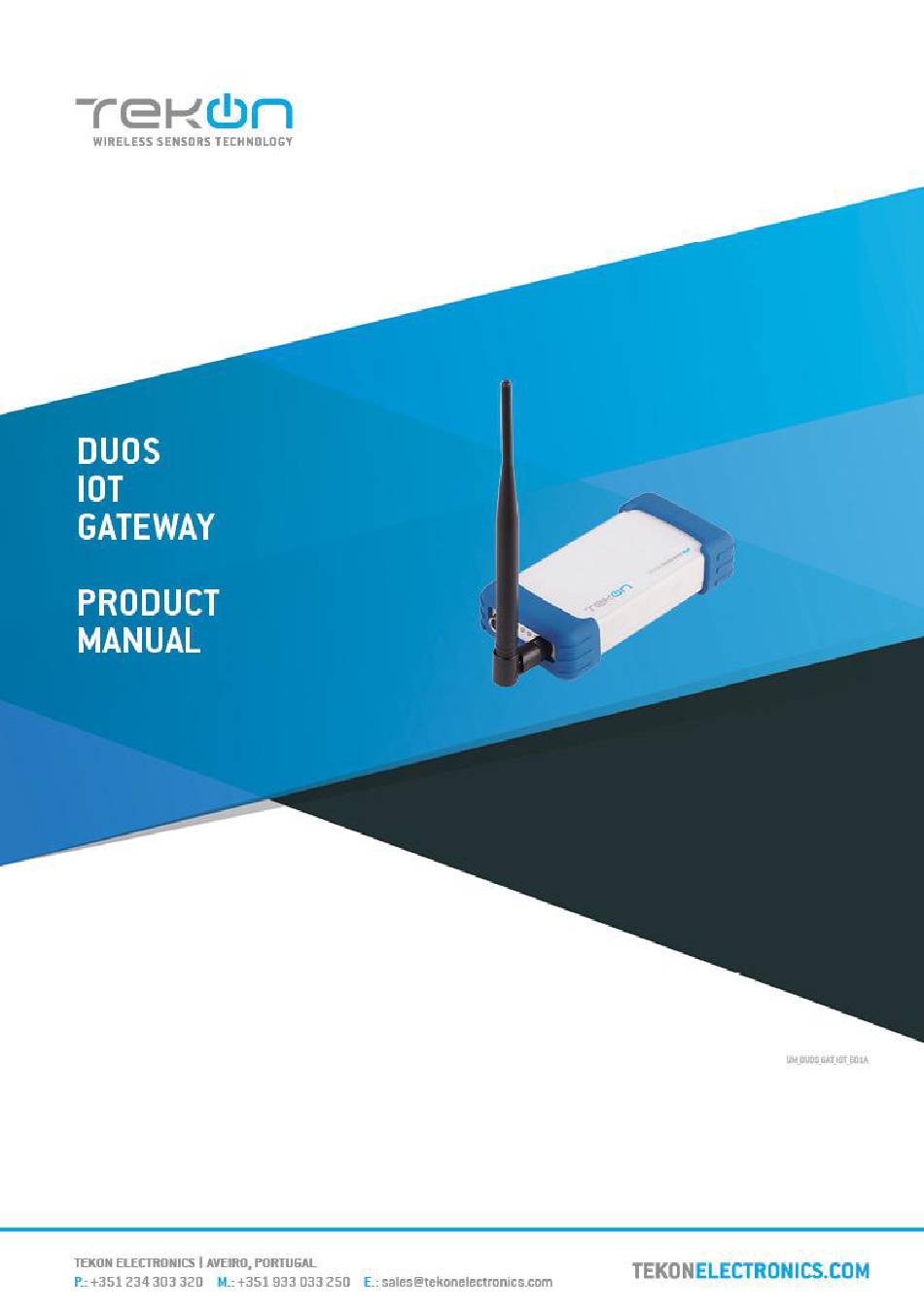

- Page 1 DUOS IoT GATEWAY Product Manual...
-
Page 2: Table Of Contents
DUOS IoT GATEWAY Product Manual Index of contents Introduction ........................6 1.1. Overview ....................... 6 1.2. Accessories / information material included ............6 1.3. Symbology ......................7 1.4 Product references ......................7 Product ..........................7 2.1. Technical specifications ..................7 2.2. - Page 3 Figure 25 - Network Time server configuration ..............34 Figure 26 - Proxy server configuration ..................35 Figure 27 - Page to configure the connection to Tekon IoT Platform ........35 Figure 28 - Connection to the Tekon IoT Platform ..............36 Figure 29 - Hub configuration for connection to the Tekon IoT Platform ......
- Page 4 DUOS IoT GATEWAY Product Manual Index of tables Table 1 - LED's colour and description ..................11 Table 2 - Permissions for each type of user ................15 Table 3 - Hub listing fields ....................... 16 Table 4 - Network hubs listing ....................18 Table 5 - Properties page fields and description..............
- Page 5 NOTE: This equipment is not entitled to protection against harmful interference and must not cause interference in duly authorized systems. If you would like more information about the products of Tekon Electronics, contact us or contact an official representative closest to your location. To find the location of our official representatives, check our website, through the link https://www.tekonelectronics.com/en/contacts/local-distributors/...
-
Page 6: Introduction

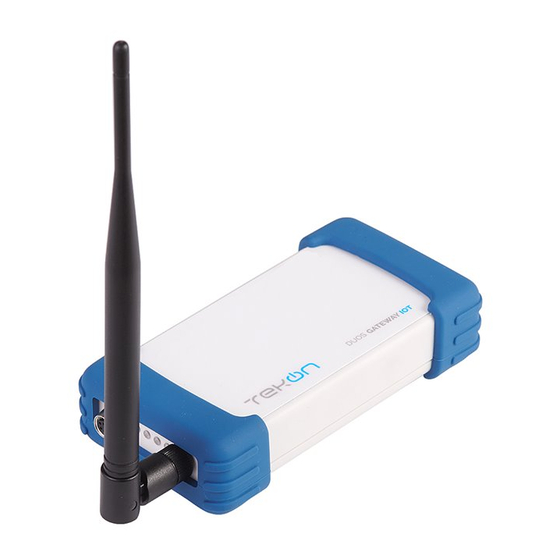

The Duos IoT Gateway was developed to enable the communication of the transmitters of the DUOS wireless product family with several IoT platforms on the market, through integration with REST API. As an IoT device developed by Tekon Electronics, the Duos IoT Gateway has a native integration with the Tekon IoT Platform. -
Page 7: Symbology
Use a QR code reader to access information about the Duos IoT Gateway. 1.4 Product references Reference Name PA160410220 DUOS WIRELESS GATEWAY 868MHZ IoT PA160410240 DUOS WIRELESS GATEWAY 868MHZ IoT WH PA160410260 DUOS WIRELESS GATEWAY 915MHZ IoT PA160410280 DUOS WIRELESS GATEWAY 915MHZ IoT WH 2. - Page 8 Dynamic (provided by network DHCP server) or Static (default) IP Protocol Modbus TCP/IP (Server/Slave) Modbus TCP/IP port 1502 Proxy Configurable IoT connectivity Integration with Tekon IoT Platform REST API Casing Dimensions 142 x 73 x 34,5 mm Weight 100 g Material ABS UL94HB/Silicone...
- Page 9 DUOS IoT GATEWAY Product Manual Operating environment –10 °C to 60 °C 95% maximum relative humidity (non-condensing) Factory default settings 868 MHz 915 MHz Frequency 869,525 MHz 915,000 MHz Radio transmit power 27 dBm Radio transmission rate 76,8 kbit/s Wireless channel Wireless network ID Serial number Wireless device ID...
-
Page 10: Technical Drawings
DUOS IoT GATEWAY Product Manual 2.2. Technical Drawings The Duos IoT Gateway has a compact format compared to the identical category products on the market. Figure 1 - Technical dimensions of Duos IoT Gateway 2.3. Connections The physical inputs on the product are located at each end. Figure 2 - Physical inputs and interfaces of Duos IoT Gateway... -
Page 11: Led Indicators
Label The DUOS IoT Gateway is identified with a label that contains information characteristic of the product and necessary for identification and configuration purposes: - Tekon name and website; - Tekon’s internal product reference; - Internal device designation; - Network ID previously configured on the device;... -
Page 12: Web Interface Features
DUOS IoT GATEWAY Product Manual Figure 3 - Example of a label pasted on Duos IoT Gateway Web interface features Web-based administration The gateway services and the transmitters network can be quickly configured through a web- based service. Role-based access control Access to the web-based service is restricted only to registered users. -
Page 13: Updates
The DUOS IoT Gateway is incorporated in the Internet of Things, connecting to an application running in the cloud through an IoT platform. Native integration with Tekon IoT Platform. It can be integrated into other external platforms through the REST API interface. -
Page 14: Web Interface
DUOS IoT GATEWAY Product Manual 5. Web interface The DUOS IoT Gateway web interface is a tool that provides a graphical interface for the user to access the main features of the device in a convenient way. Their use is different depending on the level of user permissions. -
Page 15: Table 2 - Permissions For Each Type Of User
DUOS IoT GATEWAY Product Manual Properties: delete sensor hub Modbus: access the Modbus tab Communication module: access communication module tab Communication module: update baudrate Communication module: update description Communication module: update slave id Communication module: update parity, data bits and stop bits Users: access user tab Users: update existing user details Users: add new user... -
Page 16: Home
DUOS IoT GATEWAY Product Manual Home The Home page is the home page presented to the user after logging in. The page information is divided into two blocks. The list of sensors that are connected to the gateway and its status and an overview of the system status. -
Page 17: Figure 6 - Detailed Information On Hub Registers
DUOS IoT GATEWAY Product Manual Figure 6 - Detailed information on hub registers Status Overview At the bottom of the page, there is an overview of the network status, which provides a brief description of the network and gateway status. Figure 7 - Network and gateway overview... -
Page 18: Sensor Network
DUOS IoT GATEWAY Product Manual Sensor Network The network is featured by transmitters associated with the DUOS IoT Gateway. This page lists all transmitters on the network. The listing is organized by various terminal parameters. Figure 8 - Network of sensors associated with the Duos IoT Gateway Fields Description Hub Id... -
Page 19: Measurements
DUOS IoT GATEWAY Product Manual Figure 9 - Graph with the latest registers of the hub Measurements The graph on this page shows the transmitter registers that are being received by the gateway. The available filters restrict the user's window of interest and select the variables to be displayed. -
Page 20: Figure 10 - Options To Filter Data In The Chart
DUOS IoT GATEWAY Product Manual How to apply the filter with start date until actual time In the From filed, click on the icon to open the calendar window; Select the day, month and year for the start date; Within the calendar window, click on the clock icon to open the time selection window. -
Page 21: Figure 11 - Hub Chart With Hidden Lines
DUOS IoT GATEWAY Product Manual Figure 11 - Hub chart with hidden lines 2.2 Enable real-time measurements updates In addition to viewing the measurement history, you can view the measurement log in real time. Click on Realtime Measurements Update button, located at the top of the graph. When you activate this option, the From and To fields are empty since the records are appearing in real time. -
Page 22: Properties
DUOS IoT GATEWAY Product Manual Properties Select which hub you want to consult. In the top menus of the hub page, click the Properties tab. This page lists the information related to the hub. Figure 13 - Hub properties page Fields Description Name... -
Page 23: Table 6 - Possible Hub States
To deactivate, click on the On button which will be replaced by the Off button. Click on the Update button to save your changes. NOTE: for this feature to be applicable, you must have at least the Tekon Cloud cloud service configured and validated. -
Page 24: Modbus
DUOS IoT GATEWAY Product Manual Modbus In the Modbus tab, the modbus parameters of the transmitters that are associated with the DUOS IoT Gateway are displayed. Select which hub you want to consult. In the top menus of the hub page, click on the Modbus tab. This page lists the information related to the hub. Fields Description Register Variable... -
Page 25: Figure 15 - Communication Module Page Of Web Interface
DUOS IoT GATEWAY Product Manual The Settings menu is arranged in several tabs that are presented in this order: Communication Module: communication module settings; • Users: users management; • Data Import/Export: export sensors measurements, database structure with • gateway configuration and import gateway configurations; Network: network interfaces;... - Page 26 NOTE: this field should only be changed if the equipment's settings are modified with the Tekon Configurator software. The settings applied in Tekon Configurator must be replicated in this tab. 4.2.3 Update parity value The parity configuration is directly related to communication via Modbus protocol.
-
Page 27: Figure 16 - Page With List Of Registered Users
DUOS IoT GATEWAY Product Manual Table 8 - Modbus address identification fields 4.3 Users In this tab, it is possible to manage all users who can use the gateway's web interface. The USERS tab allows to: • Edit information of existing users; Delete users;... -
Page 28: Figure 17 - Form To Update User Information
DUOS IoT GATEWAY Product Manual 4.3.1 Access USERS tab Inside the main SETTINGS menu, click on the USERS tab. You will be directed to a page like the one shown above. 4.3.2 Update user details information 1. In the table where all registered users are listed, on the right side, click on MANAGE in the user register that you want to edit. -
Page 29: Figure 18 - Form To Create A New User
DUOS IoT GATEWAY Product Manual 4.3.3 Add a new user To create a user, you must fill a form. Click on ADD USER> header to reveal the form. Fill in USERNAME and PASSWORD fields. The username cannot be the same as any existing one. -
Page 30: Figure 20 - Page To Export Data And Import Database
DUOS IoT GATEWAY Product Manual 4.4 Data Import/Export On SETTINGS menu, select the tab DATA IMPORT/EXPORT. Figure 20 - Page to export data and import database 4.4.1 Export sensor measurements 1. On the main menu SETTINGS, click on the tab DATA IMPORT/EXPORT. 2. - Page 31 DUOS IoT GATEWAY Product Manual On the calendar window, click on the clock icon ( ) to open the time selection window. This step is optional. When the time is not selected, the selection is automatically made according to the current local time; Select hours and minutes;...
-
Page 32: Figure 21 - Network Information
DUOS IoT GATEWAY Product Manual Network Within the SETTINGS menu, select the Network tab. Figure 21 - Network information On this page we find the network interfaces of the device, the configuration of the network time protocol and the parameters for the configuration of a proxy. 4.5.1 IP Network Table On this page section, is presented a table that lists the several interfaces of the gateway... -
Page 33: Figure 22 - Ip Network Table Section
DUOS IoT GATEWAY Product Manual Figure 22 - IP Network Table section 4.5.1.1 eth0 interface management Within the eth0 interface, referring to the ethernet interface of the DUOS IoT Gateway, it is possible to configure the DHCP, IP Address, Netmask and Gateway parameters. This feature allows the assignment of the gateway IP, within the network, to occur automatically or manually. -
Page 34: Figure 24 - Dhcp Deactivation
DUOS IoT GATEWAY Product Manual Figure 24 - DHCP deactivation NOTE: for the IP assignment to our device to be done automatically by the network server to which it is connected via the ethernet port, must keep validation in the DHCP parameter checkbox. -
Page 35: Figure 26 - Proxy Server Configuration
Tekon IoT Platform. Within SETTINGS menu, click on the CLOUD SERVICES tab. Figure 27 - Page to configure the connection to Tekon IoT Platform The connection with the Tekon IoT Platform is made through the configuration of gateway and hubs, individually. 4.6.1... -
Page 36: Figure 28 - Connection To The Tekon Iot Platform
NOTE: for the hub to be ready to communicate with the platform, its status must be “Cloud Synchronization On”. If this status does not match, please follow the steps in 3.3 In order for the available hubs to communicate with the Tekon IoT Platform, you must have the following data: API Key –... -
Page 37: Figure 29 - Hub Configuration For Connection To The Tekon Iot Platform
DUOS IoT GATEWAY Product Manual Figure 29 - Hub configuration for connection to the Tekon IoT Platform On the TEST CREDENTIALS button, you can test the platform connection credentials defined in the upper fields. If the connection is successful, the message “Authentication... -
Page 38: Figure 30 - Page With The Link To Monit Web Portal
DUOS IoT GATEWAY Product Manual Figure 30 - Page with the link to Monit Web Portal In the new window, place the access credentials provided below; Username admin Password bresimar Table 10 - Credentials for access Figure 31 - Window to enter credentials Click on OK to validate credentials;... -
Page 39: Figure 32 - Monit Service Manager Page
DUOS IoT GATEWAY Product Manual Figure 32 - Monit Service Manager page The Status column of the table that lists the monitored process indicates whether or not the process is functioning normally. NOTE: the description of how to use the Monit tool is out of focus in this manual. You can find more information... -
Page 40: Figure 34 - Reboot System Option
DUOS IoT GATEWAY Product Manual 4.8.1 Update hostname 1. In the HOSTNAME text field, type the new name you want for the device. Only alphanumeric characters (A-Z; a-z; 0-9) are accepted; 2. Click on UPDATE to apply the change. The system will automatically restart for the change to take effect immediately. -
Page 41: Figure 35 - Option To Shutdown The System
DUOS IoT GATEWAY Product Manual 2. Follow the presented instructions. 4.8.4 Shutdown the sistema 1. In the Control Gateway section, click on Shutdown; Figure 35 - Option to shutdown the system 2. Follow the presented instructions. NOTE: this procedure does not turn off the DUOS IoT Gateway. It just turns off all the services. -
Page 42: Figure 36 - Reset Initial Settings On The Web Interface
DUOS IoT GATEWAY Product Manual Figure 36 - Reset initial settings on the web interface 3. Follow the presented instructions. 4.9 Modbus connections The DUOS IoT Gateway has a Modbus layer that allows the customer to connect via the RS-485 port or the Ethernet interface. The connection parameters to the Modbus server are as follows: Modbus RTU Modbus TCP... -
Page 43: Troubleshooting
(Transmitter device ID - 1) x 21+19 Table 12 - Modbus map Can find more information on data transmission via Modbus from the DUOS IoT Gateway in the product datasheet. You can find the datasheet, on the Tekon Electronics website, through the upper menu Download Center >>... -
Page 44: Certifications
Check if the Tekon Cloud Status field is in mode (see topic 4.6.1 Configure gateway connection) Check if you have filled in the API Key field in the Tekon Cloud area and the hub (s) that should be communicating. (See point 4.6 Cloud Services) 6.3 Cannot access to the gateway web interface... - Page 45 DUOS IoT GATEWAY Product Manual platform are device management, remote data storage, access to historical data and real-time monitoring. Modbus Data communication protocol used in industrial automation systems. Network Time Protocol. Used to keep a system's timekeeping synchronized with a time server. Sensor hub Device that supports one or more sensors capable of periodically obtaining measurements for different...
- Page 46 DUOS IoT GATEWAY Product Manual Tekon Electronics Avenida Europa, 460 Quinta do Simão – Esgueira 3800-230 Aveiro – Portugal T. +351 234 303 320 M. +351 937 270 062 sales@tekonelectronics.com www.tekonelectronics.com...
