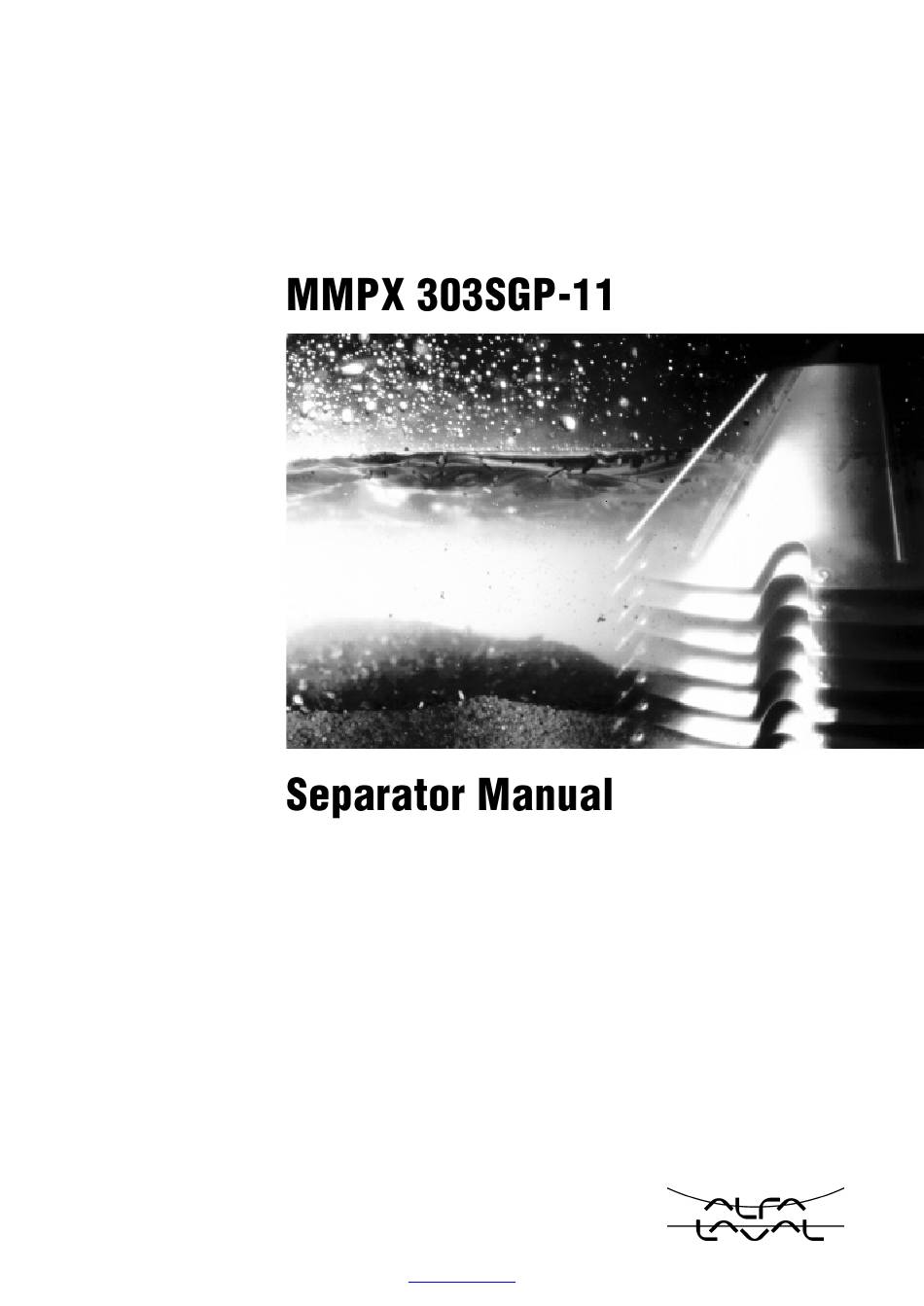

  • Page 1 Product No. 881099-01-04 Book No. 1270065-02 V2 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 2 Telephone: +46 8 53 06 50 00 Telefax: +46 8 53 06 50 29 Printed in Sweden, 97-03 © Alfa Laval Separation AB 1997 This publication or any part thereof may not be reproduced or transmitted by any process or means without prior written permission of Alfa Laval Separation AB.
  • Page 3 Contents Read this first Safety Instructions Separator Basics 3.1 Basic principles of separation 3.2 Design and function 3.3 Definitions Operating Instructions 4.1 Operating routine Service Instructions 5.1 Periodic maintenance 5.2 Maintenance Logs 5.3 Check points at Intermediate Service 5.4 Check points at Major Service 5.5 3-year service 5.6 Lifting instructions 5.7 Cleaning...
  • Page 4 6.5 Oil filling device 6.6 Water tank 6.7 Frame feet Trouble-tracing 7.1 Trouble-tracing procedure 7.2 MMPX mechanical function 7.3 Purification and clarification faults 7.4 Purification faults 7.5 Clarification faults Technical Reference 8.1 Technical data 8.2 Connection list 8.3 Interface description 8.4 Water quality 8.5 Lubricants 8.6 Drawings...
  • Page 5 Study instruction manuals and observe the warnings before installation, operation, service and maintenance. Not following the instructions can result in serious accidents. In order to make the information clear only foreseeable conditions have been considered. No warnings are given, therefore, for situations arising from the unintended usage of the machine and its tools.
  • Page 6 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 7 15, and chapter ‘‘8 Technical Reference” on page 137. If the separator has been delivered and installed by Alfa Laval as part of a processing system, this manual is a part of the system documentation. In this case, study carefully all the instructions in the system documentation.
  • Page 8 1 Read this first Service Instructions This chapter gives instructions for daily checks, cleaning, oil changes, servicing and check points. Dismantling / Assembly This chapter contains step-by-step instructions for dismantling and assembly of the separator for service and repair. Trouble-tracing Refer to this chapter if the separator functions abnormally.
  • Page 9 • Ensure that personnel are competent and have sufficient knowledge of maintenance and operation, especially concerning emergency stopping procedures. • Use only Alfa Laval genuine spare parts and the special tools supplied. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 10 2 Safety Instructions DANGER Disintegration hazards • Use the separator only for the purpose and parameter range specified by Alfa Laval. • If excessive vibration occurs, stop separator and keep bowl filled with liquid during rundown. • When power cables are connected, always check direction of motor rotation.
  • Page 11 2 Safety Instructions DANGER Entrapment hazards • Make sure that rotating parts have come to a complete standstill before starting any dismantling work. • To avoid accidental start, switch off and lock power supply before starting any dismantling work. • Assemble the machine completely before start.
  • Page 12 2 Safety Instructions WARNING Crush hazards • Use correct lifting tools and follow lifting instructions. • Do not work under a hanging load. Noise hazards • Use ear protection in noisy environments. CAUTION Burn hazards • Lubrication oil and various machine surfaces can be hot and cause burns.
  • Page 13 2 Safety Instructions Warning signs in the text Pay attention to the safety instructions in this manual. Below are definitions of the three grades of warning signs used in the text where there is a risk for injury to personnel. DANGER Type of hazard This type of safety instruction indicates a...
  • Page 14 2 Safety Instructions ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 15: Table Of Contents

    3 Separator Basics Contents 3.1 Basic principles of separation 3.1.1 Factors influencing the separation result 3.1.2 Purification 3.1.3 Clarification (optional) 3.2 Design and function 3.2.1 Application 3.2.2 Design 3.2.3 Outline of function 3.2.4 Separating function 3.2.5 Sludge discharge function 3.2.6 Power transmission 3.2.7 Sensors and indicators...

  • Page 16: Basic Principles Of Separation

    3.1 Basic principles of separation 3 Separator Basics Basic principles of separation The purpose of separation can be: • to free a liquid of solid particles, • to separate two mutually insoluble liquids with different densities while removing any solids presents at the same time, •...

  • Page 17: Factors Influencing The Separation Result

    3 Separator Basics 3.1 Basic principles of separation 3.1.1 Factors influencing the separation result Separating temperatures For some types of process liquids (e.g. mineral oils) a high separating temperature will normally increase the separation capacity. The temperature influences oil viscosity and density and should be kept constant throughout the separation.
  • Page 18 3.1 Basic principles of separation 3 Separator Basics Phase proportions An increased quantity of water in a oil will influence the separating result through the optimum transporting capacity of the disc stack. An increased water content in the oil can be compensated for by reducing the throughput in order to restore the optimum separating efficiency.
  • Page 19 3 Separator Basics 3.1 Basic principles of separation ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 20: Purification

    3.1 Basic principles of separation 3 Separator Basics 3.1.2 Purification Centrifugal force Bowl parts Process liquid Diameter of inner outlet. Heavy liquid phase Hole diameter of gravity disc. Light liquid phase Diameter of interface. Sediment (solids) ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 21 3 Separator Basics 3.1 Basic principles of separation This bowl has two liquid outlets. The process liquid flows through the centre and out under the distributor. The liquid flows up and is divided among the interspaces between the bowl discs, where the liquid phases are separated from each other by action of the centrifugal force.

  • Page 22: Clarification (Optional)

    3.1 Basic principles of separation 3 Separator Basics 3.1.3 Clarification (optional) Centrifugal force Process liquid Bowl parts Sediment (solids) ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 23 3 Separator Basics 3.1 Basic principles of separation This bowl has one liquid outlet. The process liquid flows through the centre of the distributor. The liquid flows up and is divided among the interspaces between the bowl discs, where the sediment is separated from the liquid by action of the centrifugal force.

  • Page 24: Design And Function

    3 Separator Basics Design and function 3.2.1 Application The MMPX 303SGP-11 is a high-speed centrifugal separator intended for marine and land applications. It is specifically designed for cleaning of mineral oils from water and solid particles (sludge). The cleaned oil is discharged continuously, while the sludge is discharged at intervals.

  • Page 25: 3.2.2 Design

    3 Separator Basics 3.2 Design and function 3.2.2 Design The MMPX 303SGP-11 separator comprises a frame consisting of the frame lower part (H), the intermediate part (E) and the frame top part (D) with a frame hood (C). The separator bowl (B) is driven by an electric motor (G) via a flat-belt power transmission (K) and bowl spindle (F).

  • Page 26: Separating Function

    3.2 Design and function 3 Separator Basics 3.2.4 Separating function Liquid flow Separation takes place in the separator bowl to which unseparated oil is fed through the inlet pipe (201). The oil is led by the distributor (T) towards the periphery of the bowl. When the unseparated oil reaches the slots of the distributor, it will rise through the channels formed by the disc stack (G) where it is evenly distributed...
  • Page 27 3 Separator Basics 3.2 Design and function Water seal in purification To prevent the oil from passing the outer edge of the top disc (I) and escaping through the water outlet (221), a water seal must be provided in the bowl.

  • Page 28: 3.2.5 Sludge Discharge Function

    3.2 Design and function 3 Separator Basics Clarifier disc In the clarification mode, the gravity disc is replaced by a clarifier disc which seals off the water outlet. In this case no water seal is required and consequently there is no oil/water interface in the bowl.
  • Page 29 3 Separator Basics 3.2 Design and function Bowl opening The key event to start a sludge discharge is the downward movement of the operating slide. This is accomplished by supply of opening water (372) to the discharge mechanism. Water is drained off through nozzles (Y) in the bowl body.

  • Page 30: Power Transmission

    3.2 Design and function 3 Separator Basics 3.2.6 Power transmission Bowl spindle In addition to its primary role in the power transmission system, the bowl spindle also serves as: • pump for the closing water • supply pipe for the closing water •...

  • Page 31: Sensors And Indicators

    3 Separator Basics 3.2 Design and function 3.2.7 Sensors and indicators Sight glass The sight glass shows the oil level in the oil sump. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 32: Definitions

    3.3 Definitions 3 Separator Basics Definitions Back pressure Pressure in the separator outlet. Clarification Liquid/solids separation with the intention of separating particles, normally solids, from a liquid having a lower density than the particles. Clarifier disc An optional disc, which replaces the gravity disc in the separator bowl, in the case of clarifier operation.
  • Page 33 4 Operating Instructions Contents 4.1 Operating routine 4.1.1 Before first start 4.1.2 Selection of gravity disc 4.1.3 Start after a service 4.1.4 Before normal start 4.1.5 Starting and running-up procedure 4.1.6 Separation 4.1.7 Stopping procedure 4.1.8 Safety stop ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 34: Operating Routine

    4.1 Operating routine 4 Operating Instructions Operating routine These operating instructions describe routine procedures to follow before and during the start, running and stopping sequences of the separator. If system documentation is available always follow the operating instructions of this. If there is no system documentation the instructions below are to be followed.

  • Page 35: Start After A Service

    4 Operating Instructions 4.1 Operating routine The best separation results are obtained by using a gravity disc with as large a hole diameter as possible, which will not cause a broken water seal in the bowl or an emulsification in the water outlet. The presence of salt water in the oil may demand the use of a gravity disc with bigger hole than indicated in the nomogram.
  • Page 36 4.1 Operating routine 4 Operating Instructions 3. Make sure that all couplings and connections are securely tightened to prevent leakage. 4. Make sure that the inlet pipe is tightened. Check for leakages (not admitted) 5. Read the oil level. The line in the middle of the sight glass shows the minimum level.

  • Page 37: Starting And Running-Up Procedure

    4 Operating Instructions 4.1 Operating routine 4.1.5 Starting and running-up procedure 1. Open the water supply valve(s). Make sure that the water supply is on 150-600 kPa (1,5- 6 bar). Water supply 2. Start the separator. 3. Be alert for unusual noises and conditions. 4.

  • Page 38: Separation

    4.1 Operating routine 4 Operating Instructions 5. Check the current to the separator motor to ensure that the separator has reached full speed: During start, the current reaches a peak and then slowly drops to a low and stable value. For normal length of the start-up period see ‘‘8.1 Technical data”...
  • Page 39 4 Operating Instructions 4.1 Operating routine 1. Turn off the oil feed. 2. Feed displacement water until water flows out through the water outlet. Then close this feed. 3. Stop the separator. 4. Wait until the separator has come to a complete standstill (13-15 minutes).

  • Page 40: Safety Stop

    Never discharge a vibrating separator. Push the safety stop! CAUTION Disintegration hazards After a safety stop the cause of the fault must be identified. If all parts have been checked and the cause remains unclear, contact Alfa Laval for advice. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 41 5 Service Instructions Contents 5.1 Periodic maintenance 5.5 3-year service 5.1.1 Introduction 5.1.2 Maintenance intervals 5.6 Lifting instructions 5.1.3 Maintenance procedure 5.1.4 Service kits 5.7 Cleaning 5.7.1 Cleaning agents 5.2 Maintenance Logs 5.7.2 Cleaning of bowl discs 5.2.1 Daily checks 5.2.2 Oil change - monthly 5.8 Oil change...

  • Page 42: Periodic Maintenance

    5.1 Periodic maintenance 5 Service Instructions Periodic maintenance 5.1.1 Introduction Periodic, preventive maintenance reduces the risk of unexpected stoppages and breakdowns. Maintenance logs are shown on the following pages in order to facilitate periodic maintenance. DANGER Disintegration hazards Separator parts that are worn beyond their safe limits or incorrectly assembled may cause severe damage or fatal injury.
  • Page 43 5 Service Instructions 5.1 Periodic maintenance MS - Major Service consists of an overhaul of the complete separator every 12 months or 8000 operating hours. An Intermediate Service is performed, and the flat belt, friction elements, seals and bearings in the bottom part are renewed.

  • Page 44: Maintenance Procedure

    Major Service the Spare Parts Catalogue . NOTE Always use Alfa Laval genuine parts as otherwise the warranty will become invalid. Alfa Laval takes no responsibility for the safe operation of the equipment if non-genuine spare parts are used. ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 45: Maintenance Logs

    5 Service Instructions 5.2 Maintenance Logs Maintenance Logs 5.2.1 Daily checks The following steps should be carried out daily. Main component and activity Part Page Notes Inlet and outlet Check for leakage Connecting housing Separator bowl Check for vibration and noise Belt transmission Check for vibration and noise Oil sump...

  • Page 46: Oil Change - Monthly

    5.2 Maintenance Logs 5 Service Instructions 5.2.2 Oil change - monthly The oil change and check of belt transmission should be carried out every 1500 hours of operation. When using a group D oil, time of operation between oil changes can be extended from the normal 1500 hours to 2000 hours.

  • Page 47: Is - Intermediate Service

    5 Service Instructions 5.2 Maintenance Logs 5.2.3 IS - Intermediate Service Name of plant: Local identification: Separator: MMPX 303SGP-11 Manufacture No./Year: Total running hours: Product No.: 881099-01-04 Date: Signature: Renew all parts included in the Intermediate Service kit (IS) and do the following activities.
  • Page 48 5.2 Maintenance Logs 5 Service Instructions Main component and activity Part Page Notes Electrical motor Lubrication (if nipples are fitted) See sign on motor Signs and labels on separator Check attachment and legibility Safety label on hood Other plates and labels ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 49: Ms - Major Service

    5 Service Instructions 5.2 Maintenance Logs 5.2.4 MS - Major Service Name of plant: Local identification: Separator: MMPX 303SGP-11 Manufacture No./Year: Total running hours: Product No.: 881099-01-04 Date: Signature: Renew all parts included in the Intermediate and Major Service kits and do the following activities.
  • Page 50 5.2 Maintenance Logs 5 Service Instructions Main component and activity Part Page Notes Vertical driving device Clean and inspect Oil mist fan Oil pump Water tank Pump sleeve Bowl spindle Ball bearing housing indentations Check Radial wobble of bowl spindle Oil sump Clean Oil sump...

  • Page 51: Check Points At Intermediate Service

    Inspect regularly for corrosion damage. Inspect frequently if the process liquid is corrosive. Always contact your Alfa Laval representative if you suspect that the largest depth of a corrosion damage exceeds 1,0 mm or if cracks have been found. Do not continue to use the separator until it has been inspected and given clearance for operation by Alfa Laval.
  • Page 52 5.3 Check points at Intermediate Service 5 Service Instructions Stainless steel Stainless steel parts corrode when in contact with either chlorides or acidic solutions. Acidic solutions cause a general corrosion. The chloride corrosion is characterised by local damage such as pitting, grooves or cracks. The risk of chloride corrosion is higher if the surface is •...

  • Page 53: Erosion

    Disintegration hazard Inspect regularly for erosion damage. Inspect frequently if the process liquid is erosive. Always contact your Alfa Laval representative if the largest depth of any erosion damage exceeds 1,0 mm. Valuable information as to the nature of the damage can be recorded using photographs, plaster impressions or hammered-in lead.

  • Page 54: Cracks

    Always replace a part if cracks are present. It is particularly important to inspect for cracks in rotating parts. Always contact your Alfa Laval representative if you suspect that the largest depth of the damage exceeds 1,0 mm. Do not continue to use the separator until it has been inspected and cleared for operation by Alfa Laval.

  • Page 55: Discharge Mechanism

    5 Service Instructions 5.3 Check points at Intermediate Service 5.3.4 Discharge mechanism Dirt and lime deposits in the sludge discharge mechanism can cause discharge malfunction or no discharge. • Thoroughly clean and inspect the parts. Pay special attention to important surfaces (1, 2, 3 and 4).

  • Page 56: Bowl Hood And Sliding Bowl Bottom

    5.3 Check points at Intermediate Service 5 Service Instructions 5.3.5 Bowl hood and sliding bowl bottom Poor sealing between the bowl hood seal ring and the edge of the sliding bowl bottom will cause a leakage of process liquid from the bowl. Sealing surface in the bowl between bowl hood and sliding bowl bottom Fit a new bowl hood seal ring at each...
  • Page 57 5 Service Instructions 5.3 Check points at Intermediate Service Check the sealing edge (a) of the sliding bowl bottom. If damaged through corrosion or erosion or in other ways it can be rectified by turning in a lathe. Minimum permissible height of sealing edge: 4,5 mm.

  • Page 58: Spindle Top Cone And Bowl Body Nave

    5.3 Check points at Intermediate Service 5 Service Instructions 5.3.6 Spindle top cone and bowl body nave Impact marks on the spindle cone or in the bowl body nave may cause the separator to vibrate while running. Corrosion may cause the bowl to stick firmly to the spindle cone and cause difficulties during the next dismantling.

  • Page 59: Threads Of Inlet Pipe, Paring Disc

    5 Service Instructions 5.3 Check points at Intermediate Service 5.3.7 Threads of inlet pipe, paring disc Damage to threads or a broken paring disc can prevent correct tightening of the inlet pipe and cause the paring disc to scrape against the top disc, even though the height adjustment of the paring disc has been made correctly.

  • Page 60: Threads On Bowl Hood And Bowl Body

    The measure A in millimetres (mm) is obtained by calculating bowl outside diameter D times 0,2. If the marks are illegible, an Alfa Laval representative should be contacted for determination and punching of new alignment marks.
  • Page 61 5 Service Instructions 5.3 Check points at Intermediate Service Damage The position of threads, contact and guide surfaces are indicated by arrows in the illustration. Examine for burrs and protrusions caused by impact. Clean the threads, contact and guide surfaces with a suitable degreasing agent.

  • Page 62: Disc Stack Pressure

    5.3 Check points at Intermediate Service 5 Service Instructions 5.3.9 Disc stack pressure The bowl hood exerts a pressure on the disc stack clamping it in place. NOTE Insufficient pressure in the disc stack may affect the bowl balance, which in turn will cause abnormal vibration of the separator and shorten the life of ball bearings.

  • Page 63: Check Points At Major Service

    5 Service Instructions 5.4 Check points at Major Service Check points at Major Service 5.4.1 Paring disc height adjustment The height of the paring disc above the frame hood must be measured if the bowl spindle has been dismantled or if the bowl has been replaced with a new one.

  • Page 64: Radial Wobble Of Bowl Spindle

    Use the flat belt to turn the spindle. 3. Permissible radial wobble: max. 0,04 mm. If the spindle wobble is more than the maximum permitted value, contact Alfa Laval representatives. 4. Finally fit the water tank to the frame bottom part.

  • Page 65: 3-Year Service

    5 Service Instructions 5.5 3-year service 3-year service Exchange of frame feet See ‘‘6.7.1 Mounting of new frame feet” on page 123. Friction coupling Exchange of ball bearings, see ‘‘6.3 Friction coupling” on page 110. Frame intermediate part Replace O-ring and gasket, see ‘‘6.2.2 Bowl spindle and frame - assembly”...

  • Page 66: Lifting Instructions

    5.6 Lifting instructions 5 Service Instructions Lifting instructions 1. Remove the inlet/outlet housings, the frame hood and the bowl according to the instructions in chapter ‘‘6.1.1 Inlet/outlet and bowl - dismantling” on page 84. NOTE Make sure to remove the cap nut fixing the bowl to the bowl spindle.
  • Page 67 5 Service Instructions 5.6 Lifting instructions 8. Remove the lifting eyes afterwards. WARNING Crush hazards Use only the two special lifting eyes (M12) for lifting the machine. They are to be screwed into the special threaded holes. Other holes are not dimensioned for lifting the machine.

  • Page 68: Cleaning

    Cleaning External cleaning The external cleaning of frame and motor should be restricted to brushing, sponging or wiping while the motor is running or is still hot. Never wash down a separator with a direct water stream. Totally enclosed motors can be damaged by direct hosing to the same extent as open motors and even more than those, because: •...

  • Page 69: Cleaning Agents

    • For cleaning of lube oil separators the most Alfa Laval cleaning liquid for lube oil and fuel oil important function of the cleaning agent is to separators is available in 25-litre plastic containers. be a good solvent for the gypsum in the sludge.

  • Page 70: Cleaning Of Bowl Discs

    For parts of the driving devices Use white spirit, cleaning-grade kerosene or diesel oil. Oiling (protect surfaces against corrosion) Protect cleaned carbon steel parts against corrosion by oiling. Separator parts that are not assembled after cleaning must be wiped and coated with a thin layer of clean oil and protected from dust and dirt.

  • Page 71: Oil Change Procedure

    Oil change 5.8.1 Oil change procedure NOTE Before adding or renewing lubricating oil in the oil sump, the information concerning different oil groups, handling of oils, oil change intervals etc. given in chapter ‘‘8.5 Lubricants” on page 147 must be well known. The separator should be level and at standstill when oil is filled or the oil level is checked.
  • Page 72 4. Collect the oil in the vessel. CAUTION Burn hazards The lubricating oil and various machine surfaces can be sufficiently hot to cause burns. 5. Turn the oil filling device back to its normal position (A), the drain hole pointing upwards. NOTE When changing from one group of oil to another, the frame housing and the spindle...

  • Page 73: Vibration

    Vibration 5.9.1 Vibration analysis A separator normally vibrates and produces a different sound when passing through its critical speeds during run-up and run-down. It also vibrates and sounds to some extent when running. It is good practice to be acquainted with these normal conditions.

  • Page 74: 5.10 General Directions

    The bearings used for the bowl spindle are special to withstand the speed, vibration, temperature and load characteristics of high- speed separators. Only Alfa Laval genuine spare parts should be used. Outer race Ball/roller A bearing that in appearance looks equivalent to...
  • Page 75 Cleaning and inspection Check shaft (spindle) end and/or bearing seat in the housing for damage indicating that the bearing has rotated on the shaft (spindle) and/or in the housing respectively. Replace the damaged part, if the faults cannot be remedied by polishing or in some other way.
  • Page 76 • There are several basic rules for assembling cylindrical bore bearings: − Never directly strike a bearing’s rings, cage or rolling elements while assembling. A ring may crack or metal fragments break off. − Never apply pressure to one ring in order to assemble the other.

  • Page 77: 5.10.2 Before Shut-Downs

    5.10.2 Before shut-downs Before the separator is shut-down for a period of time, the following must be carried out: • Remove the bowl, according to instructions in chapter ‘‘6 Dismantling/Assembly” on page • Protect parts in contact with process liquid from corrosion by applying a thin layer of oil.
  • Page 78 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 79 6 Dismantling/Assembly Contents 6.1 Inlet/outlet and bowl Inlet/outlet and bowl − dismantling 6.1.1 Inlet/outlet and bowl − assembly 6.1.2 6.2 Bowl spindle and frame 6.2.1 Bowl spindle and frame − dismantling 6.2.2 Bowl spindle and frame − assembly 6.3 Friction coupling Friction coupling −...
  • Page 80 References to check-points In the text you will find references to the check point instructions in chapter 5. The references appear in the text as in the following example: Check point ‘‘5.3.9 Disc stack pressure” on page 62. In this example, look up check point Disc stack Switch off and lock power supply before starting any dismantling work.

  • Page 81: Inlet/Outlet And Bowl

    Inlet/outlet and bowl DANGER Entrapment hazard To avoid accidental start, switch off and lock power supply before starting any dismantling work. Safety device Inlet housing Outlet housing Connecting housing* Insert Height adjusting ring Frame hood Lock ring 10. Heavy phase cover 11.
  • Page 82 14. Inlet pipe 15. Bowl hood 16. Top disc 17. Bowl discs 18. Wing insert 19. Bowl discs 20. Distributor 21. Sliding bowl bottom Left-hand thread Intermediate service kit MS Major service kit ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 83 22. Cap nut 23. Upper distributing ring 24. Valve plug 25. Operating slide 26. Lower distributing ring 27. Bowl body 28. Nozzle Left-hand thread Intermediate service kit MS Major service kit ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 84: Inlet/Outlet And Bowl − Dismantling

    Inlet/outlet and bowl − 6.1.1 dismantling The frame hood and the heavy bowl parts must be lifted by means of a hoist. Position the hoist exactly above the bowl centre. Use an endless sling and a lifting hook with catch. The parts must be handled carefully.
  • Page 85 3. Remove the bolts and lift off frame hood (8). 4. Unscrew lock ring (9) clockwise by using the special tool; spanner for lock ring. Left-hand thread! 5. Lift off heavy phase cover (10), gravity disc (clarifier disc) (11) and leader cone (12). NOTE If the gravity disc has to be replaced owing to changed operating conditions, see ‘‘8.6.6...
  • Page 86 8. Preparations for unscrewing of bowl hood (15): − Fit the spanner to the bowl hood and secure it with the bolt (a). − Fit the compression tool and screw down the central screw (b) until it stops. − Compress the disc stack by tightening the nut (c) firmly.
  • Page 87 11. Lift out the top disc, the bowl discs with wing insert and the distributor. Screw the nut of the compression tool up against the eye bolt, turn the unit with the tool still attached upside down and hit it against a firm base.
  • Page 88 15. Lift out operating slide (25) using the special tool: lifting bolts for operating slide. 16. Lift out lower distributing ring (26). 17. Lift out bowl body (27) using the special tool. 18. Ease the bowl body off with the central screw of the tool.

  • Page 89: Inlet/Outlet And Bowl − Assembly

    21. Remove O-rings and replace them with spares from the intermediate service kit (IS). Inlet/outlet and bowl − 6.1.2 assembly Make sure that the following check points are carried out before and during assembly of the separator bowl. • Corrosion •...
  • Page 90 22. Cap nut 23. Upper distributing ring 24. Valve plug 25. Operating slide 26. Lower distributing ring 27. Bowl body 28. Nozzle Left-hand thread Intermediate service kit MS Major service kit NOTE Be sure bowl parts are not interchanged. Out of balance vibration will reduce ball bearing life.
  • Page 91 14. Inlet pipe 15. Bowl hood 16. Top disc 17. Bowl discs 18. Wing insert 19. Bowl discs 20. Distributor 21. Sliding bowl bottom Left-hand thread Intermediate service kit MS Major service kit NOTE Be sure bowl parts are not interchanged. Out of balance vibration will reduce ball bearing life.
  • Page 92 Safety device Inlet housing In/Outlet housing Connecting housing* Insert Height adjusting ring Frame hood Lock ring 10. Heavy phase cover 11. Gravity disc/Clarifier disc 12. Leader cone 13. Paring chamber cover *The connecting housing is removed from the frame hood top at paring disc adjustment (Major Service). Left-hand thread MS Major service kit Intermediate...
  • Page 93 1. Clean the hollow part (b) of the spindle top and the radial hole (a). Wipe clean the spindle top and nave bore in the bowl body. Apply oil to the tapered end of the spindle, smear the oil over the surface and wipe off surplus with a clean cloth.
  • Page 94 5. Before fitting the upper distributing ring (23) into the bowl body, turn the operating slide (25) so that the hole (e) is in line with drill mark (d) and notch (f). 6. Fit the upper distributing ring so that drill mark (a) is in line with drill mark (d) on bowl body.
  • Page 95 Check point Before assembling the bowl discs, check the threads of the bowl hood and bowl body, see ‘‘5.3.8 Threads on bowl hood and bowl body” on page 60. 9. Assemble the bowl discs with wing insert and top discon the distributor. Note the angular positioning (six options).
  • Page 96 12. Fit the compressing tool and screw down the central screw (a) until it stops. Compress the disc stack by tightening the nut (b) firmly. NOTE Use the compression tool as instructed. Use of substitute tools can damage the equipment. Check point ‘‘5.3.9 Disc stack pressure”...
  • Page 97 14. Place inlet pipe (14) in the bowl. Check point ‘‘5.3.7 Threads of inlet pipe, paring disc” on page 59. 15. Fit paring chamber cover (13) by pressing it down gently. 16. Assemble leader cone (12), gravity disc/ clarifier disc (11) and heavy phase cover (10). 17.
  • Page 98 18. Fit frame hood (8). The two eye-bolts must be fitted in the holes nearest to the electric motor. In case of Major Service remove the connecting housing and fit a new O-ring on the insert (2). Check point ‘‘5.4.1 Paring disc height adjustment” on page 63.

  • Page 99: Bowl Spindle And Frame

    Bowl spindle and frame Bowl spindle and frame − 6.2.1 dismantling Before dismantling the bowl spindle, the inlet and outlet housings, frame hood and bowl as well as the flat belt must be removed. Before dismantling, in the case of Major Service, or if the separator vibrates while running, see Check point ‘‘5.4.2 Radial wobble of bowl spindle”...
  • Page 100 1. Loosen but do not remove the motor adapter screws. 2. Remove the water tank. 3. Remove the flat belt. 4. Remove the screws and lift off frame top part (4). Lip seal ring (1) must be removed in the case of Major Service, or if found damaged.
  • Page 101 6. Remove, in the following sequence: − Top bearing cover (6) − Gasket (7) − Fan (8) − Buffer holder (9) − Rubber buffer (10). NOTE Be very careful not to damage the wings of the buffer holder. 7. Screw the cap nut counter-clockwise (left- hand thread) onto the spindle top to protect the top and bore.
  • Page 102 8. Clamp the bowl spindle (11) in a screw vice. Remove the pump sleeve (18). When turning the spindle upside down there is a risk that the vane in the pump sleeve can slide down partly or entirely into the spindle. Therefore, after unscrewing the sleeve, check that the vane has not been damaged.
  • Page 103 In case of 3-year-service 12. Loosen the screws and lift off the frame intermediate part (21). 13. Discard the O-ring (22).This O-ring is not included in any service kit, but must be ordered separately. 14. Remove the screen (2) from the frame top part (4).

  • Page 104: Assembly

    Bowl spindle and frame − 6.2.2 assembly The bowl spindle and frame is assembled in reverse sequence to dismantling. Lip seal ring 13. Ball bearing Screen 14. Snap ring Gasket 15. Ball bearing Frame, top part 16. Oil pump Deflector ring 17.
  • Page 105 In case of 3-year-service 1. Fit a new O-ring (22) and assemble the frame intermediate part (21). Use a torque wrench and tighten the screws lightly crosswise at first. Then tighten all around to 45 Nm. Secure the screws with Loctite 242. Loctite 242 2.
  • Page 106 3. Inspect the tapered end and the hollow part of the bowl spindle for wear and clean if necessary. Assemble ball bearings (13 and 15). Heat the new ball bearings in oil to maximum 125 °C. Use the special mounting tool from the tool kit.
  • Page 107 5. Check that the radial hole (φ 1 mm) in the pump sleeve (18) is clean, and fit the pump. NOTE Do not fit the pump sleeve until the belt pulley has cooled down Molykote 1000 Paste (thin layer to be rubbed into surface). Silicone grease (thin layer) 6.
  • Page 108 7. Assemble, in the following sequence: − Rubber buffer (10) − Buffer holder (9) − Fan (8) − Gasket (7) − Top bearing cover (6) φ 3 Make sure that the mm hole in fan (8) is clean and the lugs in the fan enter the recesses in the bowl spindle.
  • Page 109 9. Assemble frame top part (4). If lip seal ring (1) has been removed, fit a new one before the frame top part is put in place. Make sure the lip seal is turned the correct way. See illustration. Silicone grease (thin layer) 10.

  • Page 110: Friction Coupling

    Friction coupling If the separator does not attain full speed within about 2 minutes, the friction elements or the coupling may be worn or greasy. The friction elements must then be replaced with new ones or be thoroughly cleaned from grease. DANGER Entrapment hazards Make sure that rotating parts have come to a...

  • Page 111: Friction Coupling − Dismantling

    Friction coupling − 6.3.1 dismantling 1. Check that the belt tightener is in backward position. 2. Remove the motor adapter screws. 3. Remove the water tank and the flat belt. Note that the tank must be lowered past spindle end (A) before it can be withdrawn (B).
  • Page 112 7. Remove the screw (12), spring washer (11) and washer (10) from the friction coupling. Complete dismantling of the friction coupling 8. Lubricate and fit the special mounting and dismantling tool. Ease off the coupling. Molykote 1000 Paste (thin layer to be rubbed into surface) 9.

  • Page 113: Friction Coupling − Assembly

    Friction coupling − 6.3.2 assembly Before the friction coupling is assembled, examine all parts thoroughly for wear and corrosion. 1. Assemble the new ball bearings in belt pulley (5) by using a tube and a hammer. Apply Loctite 641 on the outer surfaces of ball bearings (3).
  • Page 114 4. Wipe clean the motor shaft and apply a thin oil film on it. Fit the special mounting and dismantling tool to the motor shaft (by means of the small screw on one end of the tool) and press the friction coupling onto the shaft. Molykote 1000 Paste (thin layer to be rubbed into surface) 5.
  • Page 115 7. Degrease and clean the contact surfaces of frame and motor adapter. Lubricate the contact surfaces with Molykote 1000 paste. Then fit the electric motor with adapter and friction coupling in position. Molykote 1000 Paste (thin layer to be rubbed into surface) Also lubricate the threads of the belt tightener with Molykote 1000 paste or similar.

  • Page 116: Flat Belt And Tightener

    Flat belt and tightener The flat belt must be removed before dismantling of the bowl spindle or the friction coupling. The procedure is the same when replacing the belt at a Major Service. A new belt must be retightened twice: •...
  • Page 117 1. Remove the cover and the water tank. Note that the tank must be lowered past spindle end (A) before it can be withdrawn (B). 2. Check that the belt tightener is in backward position. NOTE Pay attention to the air gap “A” between the cup springs and the threaded sleeve.
  • Page 118 4. Remove the existing belt and clean the raceways of the bowl spindle and the friction coupling by using a degreasing agent. Wipe the raceways with a clean rag after cleaning. Exercise the greatest possible cleanliness. There must be no dirt, oil or grease on the raceways.
  • Page 119 7. Rotate the belt tightener by rotating the shaft until it makes contact with the frame pad. 8. Tighten the shaft (1) further until the threaded sleeve (2) and dog (3) are disengaged. “Shake” the motor by hand several times during this operation in order to overcome the friction between the motor adapter and the frame.
  • Page 120 11. Rotate the shaft (1) relative to the threaded sleeve (2) until the sleeve (2) and dog (3) are engaged again with a clicking sound. NOTE If the springs (4) are not decompressed they will loose their tension and correct tightening of belt will be impossible.

  • Page 121: Oil Filling Device

    Oil filling device 6.5.1 Dismantling/assembly Drain off the oil, see ‘‘5.8 Oil change” on page 71. Unscrew nipple (4) and pull off the oil filling device. Then unbend the round safety wire (6) and pull off nipple (4). 1. If plate (8) is to be replaced, wipe the sight glass (7) with a degreasing agent.

  • Page 122: Water Tank

    Water tank Remove the cover (5) with the drain pipes and the water tank (1). Note that the tank must be lowered past the spindle end (A) before it can be withdrawn (B). • Check the tank interior and clean out if necessary.

  • Page 123: Frame Feet

    Frame feet 6.7.1 Mounting of new frame feet When replacing the frame feet, the separator must be lifted. Remove the bowl before lifting the separator. Follow ‘‘5.6 Lifting instructions” on page 66. 1. Loosen the foundation bolts and lift the separator.
  • Page 124 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 125 7 Trouble-tracing Contents 7.1 Trouble-tracing procedure 7.2 MMPX mechanical function 7.2.1 The separator does not start 7.2.2 Start-up time too long 7.2.3 Starting power too low 7.2.4 Starting power too high 7.2.5 Separator vibrates during starting sequence 7.2.6 Separator vibrates during normal running 7.2.7 Smell...

  • Page 126: Trouble-Tracing Procedure

    Always start with trouble-tracing instructions in the system documentation, and if required, continue with the instructions below. If the problem still is not solved, contact your Alfa Laval representative. MMPX mechanical function 7.2.1...

  • Page 127: Starting Power Too High

    7.2.4 Starting power too high Possible cause Action Motor failure. Repair the motor. 50 Hz pulley running on 60 Hz power After immediate stop, install correct pulley. supply. Height position of paring disc incorrect. Check and adjust. Bearing damaged or worn. Install new bearings.

  • Page 128: Separator Vibrates During Starting Sequence

    7.2.5 Separator vibrates during starting sequence NOTE Some vibration is normal during starting sequence when the separator passes through its critical speeds. Possible cause Action Bowl out of balance due to: After safety stop, identify and rectify cause. − poor cleaning −...

  • Page 129: Separator Vibrates During Normal Running

    7.2.6 Separator vibrates during normal running DANGER Disintegration hazards Never discharge a vibrating separator. Possible cause Action Uneven sludge deposits in sludge space. See ‘‘7.4 Purification faults’’ and ‘‘7.5 Clarification faults’’. Bearing damaged or worn. Fit new bearings. Vibration dampers in frame feet worn out. Fit new frame feet.

  • Page 130: Smell

    60 Hz power supply). In the event of overspeed, examine bowl for possible deformation. The separator must not be started without correcting the effects of the fault. Contact your Alfa Laval representative. Frequency of power supply (50/60 Hz). Check. ventas@fdm.com.pe fdmsac@gmail.com...

  • Page 131: 7.2.10 Speed Too Low

    7.2.10 Speed too low Possible cause Action Bowl not closed or leaking. Dismantle and check. Friction elements worn or oily. Fit new friction elements or clean the old ones if they are oily. Belt tension too loose. Tighten the belt. Motor failure/motor bearings.

  • Page 132: Purification And Clarification Faults

    Purification and clarification faults 7.3.1 Liquid flows through bowl casing drain and/or sludge outlet Possible cause Action Sludge discharge or water draining in None (normal). progress. Broken water seal. See ‘‘7.4.3 Oil discharge through water outlet = broken water seal” on page 135. Displacement water volume too large.

  • Page 133: Bowl Opens Unintentionally During Operation

    7.3.2 Bowl opens unintentionally during operation Cause Remedy Nozzles in bowl body clogged. Clean the nozzles, Seal ring in sliding bowl bottom or upper or lower Install a new seal ring or install a new upper or lower distributing ring defective. distributing ring.

  • Page 134: Purification Faults

    Purification faults 7.4.1 Unsatisfactory separation result Possible cause Action Gravity disc hole too small. Use a gravity disc with a larger hole. Incorrect separating temperature. Adjust temperature. Throughput too high. Reduce throughput. Sludge space in bowl is filled with sludge. Clean the bowl and shorten time between discharges.

  • Page 135: Oil Discharge Through Water Outlet = Broken Water Seal

    7.4.3 Oil discharge through water outlet = broken water seal Possible cause Action Gravity disc too large. Use a gravity disc with a smaller hole. Separation temperature too low. Increase temperature. Throughput too high. Reduce throughput. The supply of operating water is not Straighten the hose.

  • Page 136: Clarification Faults

    Clarification faults 7.5.1 Unsatisfactory separation result Possible cause Action Incorrect separating temperature. Adjust temperature. Throughput too high. Reduce throughput. Feed oil contains water. a. Check preceding clarifier when operating in series. b. Readjust time between discharges. c. Re-assemble and operate the separator as a purifier.
  • Page 137 8.3.2 Definitions 8.3.3 Component description and signal processing 8.4 Water quality 8.5 Lubricants 8.5.1 Lubrication chart 8.5.2 Alfa Laval lubricating oil groups: 8.5.3 Recommended lubricants 8.5.4 Recommended lubricating oils 8.5.5 Recommended oil brands 8.6 Drawings 8.6.1 Basic size drawing 8.6.2 Foundation plan 8.6.3...

  • Page 138: Technical Data

    Technical data Alfa Laval ref. 556565 rev. 2, 557451 rev. 3 Units according to ISO Standard. The manufacturer reserves the right to change specifications without notice. Product number 881099-01-04 Separator type MMPX 303SGP-11 Purpose – Continuous purification of fuel oil or lubricating oil from solid particles and water.
  • Page 139 Speed The prescribed speed of the bowl spindle is stamped on the name plate of the machine. The speed must not be exceeded. Gear ratio (pulleys): 130:41 (50 Hz), 106:41 (60 Hz) Maximum speed of 50 Hz 60 Hz rotation, rpm Motor shaft 3000 3600...
  • Page 140 Materials Bowl spindle stainless steel Frame, lower and upper parts cast iron (“Centriblue” finish Frame hood cast iron (grey finish Bowl body and hood, disc stack, gravity discs stainless steel Other bowl parts brass Oil paring disc brass Other inlet and outlet parts stainless steel, brass, cast iron An epoxy enamel NOTE...

  • Page 141: Connection List

    Connection list Alfa Laval ref. 557533 rev. 2 Connection No. Description Requirements/limit Inlet for process liquid - Permitted temperatures Maximum +100 °C minimum 0 °C Inlet for liquid seal and displacement liquid - Quality requirements Fresh water - Instantaneous flow...
  • Page 142 Connection No. Description Requirements/limit Inlet for closing liquid - Instantaneous flow 0,9 litre per minute - Quality requirements See ‘‘8.4 Water quality” on page 146 - Pressure 150-600 kPa - Consumption 0,9 litre per discharge Outlet for operating liquid open Drain of frame top part, lower Drain of frame top part, upper Motor for separator...

  • Page 143: Interface Description

    Interface description Alfa Laval ref. 557469 rev. 1 8.3.1 General In addition to the ‘‘8.2 Connection list” on page 141 this document describes limitations and conditions for safe control, monitoring and reliable operation. At the end of the document a function graph and running limitations are found.

  • Page 144: Component Description And Signal Processing

    Safety stop means: The machine must be stopped in the quickest and safest way due to vibrations or process reasons. Comply to the following conditions: • The bowl must be kept filled. • Sludge ejection (sludge discharge) must not be made. •...
  • Page 145 Function graph and running limitations Stand still Starting mode Running mode Stop mode Safety stop mode ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 146: Water Quality

    For test methods, contact any Alfa Laval representative. If these demands cannot be met, the water should be pretreated according to Alfa Laval's recommendations. Alfa Laval accepts no liability for consequences arising from unsatisfactorily purified water supplied by the customer. ventas@fdm.com.pe fdmsac@gmail.com...

  • Page 147: Lubricants

    Lubricants Alfa Laval ref. 553216-01 rev. 5 8.5.1 Lubrication chart Lubricating points Lubricants Bowl spindle ball bearings are lubricated by oil Lubricating oil as specified in ‘‘8.5.5 mist Recommended oil brands” on page 153 Bowl spindle taper Lubricating oil, only a few drops for rust...

  • Page 148: Alfa Laval Lubricating Oil Groups

    8.5.2 Alfa Laval lubricating oil groups: • Group A oil: a high quality gear oil on paraffin base with stable AW (anti-wear) additives. • Group B oil: a high quality gear oil on paraffin base with stable EP (extreme pressure) additives.
  • Page 149 It is of utmost importance to use the lubricants recommended in our documentation. This does not exclude, however, the use of other brands, provided they have equivalently high quality properties as the brands recommended. The use of oil brands and other lubricants than recommended, is done on the exclusive responsibility of the user or oil supplier.

  • Page 150: Recommended Lubricants

    8.5.3 Recommended lubricants Alfa Laval ref. 553217-01 Pastes and bonded coatings for non-food applications: Manufacturer Designation Alfa Laval No. Application Gleitmolybdän Gleitmo 805 K or 805 K, varnish 901 Gleitmo Paste G rapid 537086-04 All pressure Dow Corning Molykotepaste1000 537086-02...
  • Page 151 Greases for ball and roller bearings: Manufacturer Designation Alfa Laval No. Energrease MMEP2 Energrease LS2 Castrol Spheerol SW2 EP Spheerol EPL2 Chevron Duralith grease EP2 Exxon Beacon EP2 Mobil Mobilith SHC 460 Mobilux EP2 Gulf Gulflex MP2 Rembrandt EP2 Shell Cailithia EP Grease T2 Alvania EP Grease 2 or R.A...

  • Page 152: Recommended Lubricating Oils

    6 months or longer. • In seasonal operation: change oil before every operating period. Alfa Laval do not accept responsibility for any damage caused by the use of lubricants which deviate from the recommended lubricants listed in Alfa Laval lube oil this manual.

  • Page 153: Recommended Oil Brands

    8.5.5 Recommended oil brands Alfa Laval lubricating oil group A/150 Alfa Laval ref. 553218-04 List of commercial oil brands: Viscosity grade VG Viscosity index VI >95 Manufacturer Designation Alfa Laval 546098-80 20 litres 546098-81 4 litres 546098-82 208 litres 546098-83...
  • Page 154 Alfa Laval lubricating oil group D/220 Alfa Laval ref. 553218-08 List of commercial oil brands: Viscosity grade VG Viscosity index VI >130 Manufacturer Designation Alfa Laval 542690-80 20 litres 542690-81 4 litres 542690-82 208 litres 542690-83 1 litre Enersyn HTX 220...
  • Page 155 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 156: Drawings

    Drawings 8.6.1 Basic size drawing Alfa Laval ref. 557494 Connections 201 and 220 are turnable Vertical force not exceeding 5 kN/foot Horizontal force not exceeding 7 kN/foot ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 157: 8.6.2 Foundation Plan

    8.6.2 Foundation plan Alfa Laval ref. 557494 Maximum horizontal displacement at the inlet/outlet connections during operation: ±20 mm Maximum vertical displacement at the solid phase outlet connection during operation: ±10 mm 8 holes for foundation bolts Service side ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe...

  • Page 158: 8.6.3 Dimensions Of Connections

    8.6.3 Dimensions of connections Alfa Laval ref. 557494 Data for connections see All connections to be installed non-loaded ‘‘8.2 Connection list” on page 141 and flexible ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 159 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

  • Page 160: 8.6.4 Electric Motor

    8.6.4 Electric motor Alfa Laval ref. 551218-00 Pg16 (DIN 40430), max. wire area 2,5 mm Manufacturer ASEA, Denmark Manufacturers drawing MK11DdelB3 feb1983 Standards IEC 34-1, IEC 72-2 Size Type MT90L Weight 16 kg Poles Insulation class Bearings 6305 C3 NDE 6204 C3...
  • Page 161 Article No. Speed Freq. Voltage Current Pow.fac Note cos ϕ 551218-01 2870 380Y 0,87 551218-01 2870 220D 0,87 551218-02 3460 440Y 0,87 551218-03 2870 415Y 0,80 551218-04 3470 575Y 0,87 551218-05 3460 208Y 0,89 /l=starting current/rated current /M=starting torque/full load torque According to standards of following Classification Societies: Lloyds Register of shipping...
  • Page 162 Alfa Laval ref. 552807-00 A. Max. cable diameter 16 mm B. Metal fan cover Manufacturer ABB Motors, Spain Manufacturers drawing AC60-01 ParteB2 Standards IEC 34-1, IEC 72 Size Type MBT 90 LB Weight 16 kg Poles Insulation class Bearings DE 6205-Z...
  • Page 163 Article No. Speed Freq. Voltage Current Pow.fac Therm. Note cos j °C 552807-01 2850 220 D 0,85 380 Y 552807-01 3420 255 D 0,88 440 Y 552807-01 3390 220 D 0,88 552807-02 2870 415 Y 0,86 552807-03 2850 440 Y 0,88 552807-04 2850...

  • Page 164: Machine Plates And Safety Labels

    8.6.5 Machine plates and safety labels Alfa Laval ref. 556430 Location of machine plates and safety lables 1. Machine plate Separator MMPX 303SGP-11 Manufacturing serial No / Year XXXX Product No 881099-01-04 Inlet and outlet 544468-01 Bowl 544458-01 Machine bottom part 548009-06/07/08 (50/60/60 Hz) Max.
  • Page 165 3. Safety label Text on label: DANGER Read the instruction manuals before installation, operation and maintenance. Consider inspection intervals. Failure to strictly follow instructions can lead to fatal injury. If excessive vibration occur, stop separator and keep bowl filled with liquid during rundown. Out of balance vibration will become worse if bowl is not full.

  • Page 166: Gravity Disc Nomogram

    8.6.6 Gravity disc nomogram Gravity disc hole diameter, φ mm Oil density, kg/m at 15 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 167 The nomogram is based on the properties of fresh water. Example I in nomogram Reference in graph: _________ Oil density 965 kg/m at 15 °C (60 °F) Separation temperature 70 °C (158 °F) Throughput 1,25 m From the graphs (heavy line), the correct gravity disc has a hole diameter of 52 mm.

  • Page 168: Storage And Installation

    Storage and installation 8.7.1 Storage and transport of goods Storage Specification Upon arrival to the store, check all components and keep them: 1. Well stored and protected from mechanical damage and theft. 2. Dry an protected from rain and humidity 3.
  • Page 169 A separator can be delivered with different types of protection: • Fixed on a pallet. The separator must be stored in a dry storage room, protected from rain and humidity. It must be well protected from mechanical damage and theft. Fixed on a pallet •...
  • Page 170 Transport Specification • During transport of the separator, the bowl must always be removed from the machine and transported separately. • When lifting a separator it must always be hung securely. See details in chapter ‘‘5.6 Lifting instructions” on page 66. WARNING Crush hazards Use correct lifting tools and follow lifting...

  • Page 171: Planning Of Installation

    8.7.2 Planning of installation Introduction The space required for one or more separators can be calculated by consulting ‘‘8.6.1 Basic size drawing” on page 156, and instructions for ancillary equipment, electrical and electronic equipment and cables. Check the drawings when planning the installation Important measurements Important measurements are the minimum lifting height for lifting tackle, shortest distance between...

  • Page 172: Foundations

    Lifting height for transport of bowl Specification A minimum height is required to lift the bowl, bowl parts and the bowl spindle, see the drawing ‘‘8.6.2 Foundation plan” on page 157. Recommendation When two or more separators are installed, the lifting height may have to be increased to enable parts from one separator to be lifted and moved over an adjoining assembled separator.
  • Page 173 • Fit the separator frame on the foundation as follows: − Check that the bolts do not press against the edges of the holes, otherwise the elasticity of the mounting of the separator frame will be impeded. − Fit height adjusting washers required. −...
  • Page 174 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 175 You can do this by copying this page and sending it by fax, or you could mail it, or hand it over to your local Alfa Laval representative. Alfa Laval Separation AB, Separator Manuals, dept. SKL, S-147 80 Tumba, Sweden. Fax: +46 8 53065029.
  • Page 176 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 177 If you wish to order extra copies of this manual, please copy this page and give it to your local Alfa Laval representative, who will advise you of current prices. Your local Alfa Laval representative will also be able to help you with information regarding any other manuals.
  • Page 178 ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...
  • Page 179 Index Connections Connection list, specifications Adjustments Dimensions Belt tension Corrosion Paring disc Coupling Application Assembly Assembly Dismantling Bowl spindle and frame Cracks Bowl, inlet/outlet Tools Daily checks Density of feed Basic principles of separation Dimensions Basic size drawing Connections Bearings, directions for Separator Belt Direction of rotation...
  • Page 180 Power transmission, mechanical Belt drive Gravity Bowl spindle Gravity disc Friction coupling Nomogram Purification Selection Purifier bowl Gravity disc, purification Characteristic parts Greases, lubricants Recommended oil brands Inlet/outlet Rotation, direction Assembly Dismantling Inspection slot, bowl hood Installation Safety Instructions Installation planning Safety labels Interface to other equipment, description Safety stop...
  • Page 181 Warning signs Water Water quality specifications ventas@fdm.com.pe fdmsac@gmail.com www.fdm.com.pe Movil:959440045...

Table of Contents

Save PDF
