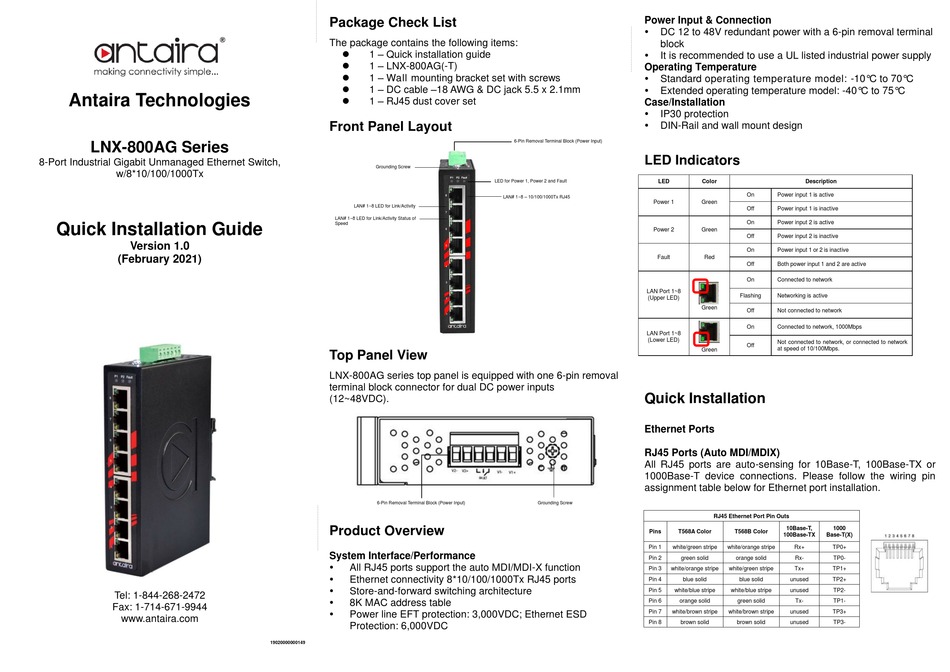

ANTAIRA LNX-800AG Series Quick Installation Manual

Antaira Technologies

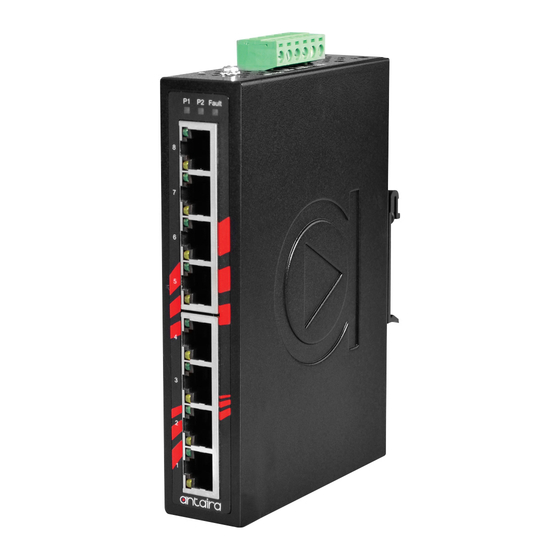

LNX-800AG Series
8-Port Industrial Gigabit Unmanaged Ethernet Switch,
w/8*10/100/1000Tx
Quick Installation Guide
Version 1.0
(February 2021)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:
⚫ 1 – Quick installation guide
⚫ 1 – LNX-800AG(-T)
⚫ 1 – Wall mounting bracket set with screws
⚫ 1 – DC cable –18 AWG & DC jack 5.5 x 2.1mm
⚫ 1 – RJ45 dust cover set
Front Panel Layout
Grounding Screw
LAN# 1~8 LED for Link/Activity
LAN# 1~8 LED for Link/Activity Status of
Speed
Top Panel View
LNX-800AG series top panel is equipped with one 6-pin removal
terminal block connector for dual DC power inputs
(12~48VDC).
6-Pin Removal Terminal Block (Power Input)
Product Overview
System Interface/Performance

All RJ45 ports support the auto MDI/MDI-X function

Ethernet connectivity 8*10/100/1000Tx RJ45 ports

Store-and-forward switching architecture

8K MAC address table

Power line EFT protection: 3,000VDC; Ethernet ESD
Protection: 6,000VDC
19020000000149
Power Input & Connection

DC 12 to 48V redundant power with a 6-pin removal terminal
block

It is recommended to use a UL listed industrial power supply
Operating Temperature

Standard operating temperature model: -10°C to 70°C

Extended operating temperature model: -40°C to 75°C
Case/Installation

IP30 protection

DIN-Rail and wall mount design
6-Pin Removal Terminal Block (Power Input)
LED Indicators
LED for Power 1, Power 2 and Fault LED
LAN# 1~8 – 10/100/1000Tx RJ45
Power 1
Power 2
Fault
LAN Port 1~8
(Upper LED)
LAN Port 1~8
(Lower LED)
Quick Installation
Ethernet Ports
RJ45 Ports (Auto MDI/MDIX)
All RJ45 ports are auto-sensing for 10Base-T, 100Base-TX or
1000Base-T device connections. Please follow the wiring pin
assignment table below for Ethernet port installation.
Grounding Screw
Pins
Pin 1 white/green stripe
Pin 2
Pin 3 white/orange stripe
Pin 4
Pin 5
Pin 6
Pin 7 white/brown stripe
Pin 8
Color Description
On Power input 1 is active
Green
Off Power input 1 is inactive
On Power input 2 is active
Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
Red
Off Both power input 1 and 2 are active
On Connected to network
Flashing Networking is active
Green
Off Not connected to network
On Connected to network, 1000Mbps
Not connected to network, or connected to network
Off
at speed of 10/100Mbps.
Green
RJ45 Ethernet Port Pin Outs
10Base-T, 1000
T568A Color T568B Color
100Base-TX Base-T(X)
white/orange stripe Rx+ TP0+
green solid orange solid Rx- TP0-
white/green stripe Tx+ TP1+
blue solid blue solid unused TP2+
white/blue stripe white/blue stripe unused TP2-
orange solid green solid Tx- TP1-
white/brown stripe unused TP3+
brown solid brown solid unused TP3-
