U-Line 2381 Quick Start Manual

H-7825

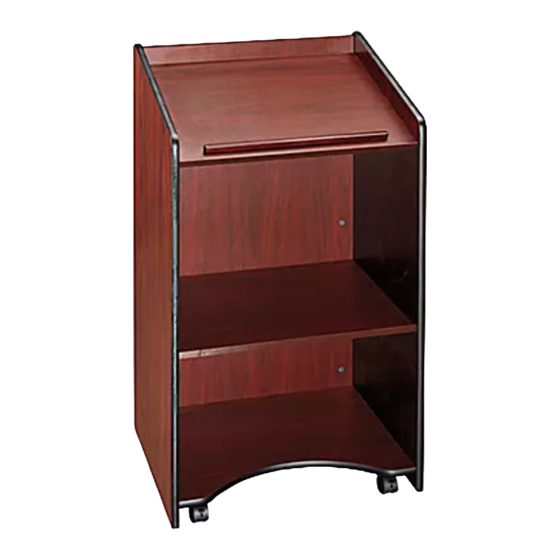

LECTERN
TOOLS NEEDED
Phillips
Screwdriver
A
Camlock Pin x 20
G
M4 x 16
Machine Screw x 18
1. Align paper stop over holes on top reading surface
and secure using three M4 x 28 bolts (H).
(See Figure 1)
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Drill
(Optional)
B C
Camlock x 20 Dowel x 18
H I
M4 x 28
Bolt x 3
H
Two Person Assembly
Recommended
PARTS
D
Caster with Lock x 2
J
L-Bracket x 4 M4 x 16
Wood Screw x 26
ASSEMBLY
2. Place one side panel on ground. Insert camlock
pins (A) and dowels (C) into side panel.
(See Figure 2)
Figure 2
C
A
IMPORTANT: Function of Cam
Make sure the arrow is pointing upwards
before inserting into the panel's hole.
3. Insert camlocks (B) into the holes on the bottom of
top reading surface, middle shelf and bottom panel.
Insert camlocks into the holes on the back of the
front panel. (See Figure 2)
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
F
E
Camlock Cap x 16
Caster x 2
K
Deep Camlock Cap x 5
B
F
1/4 right turn
C
for locking
A
B
K
0921 IH-7825
