Summary of Contents for HIKVISION DS-MH2111 Series

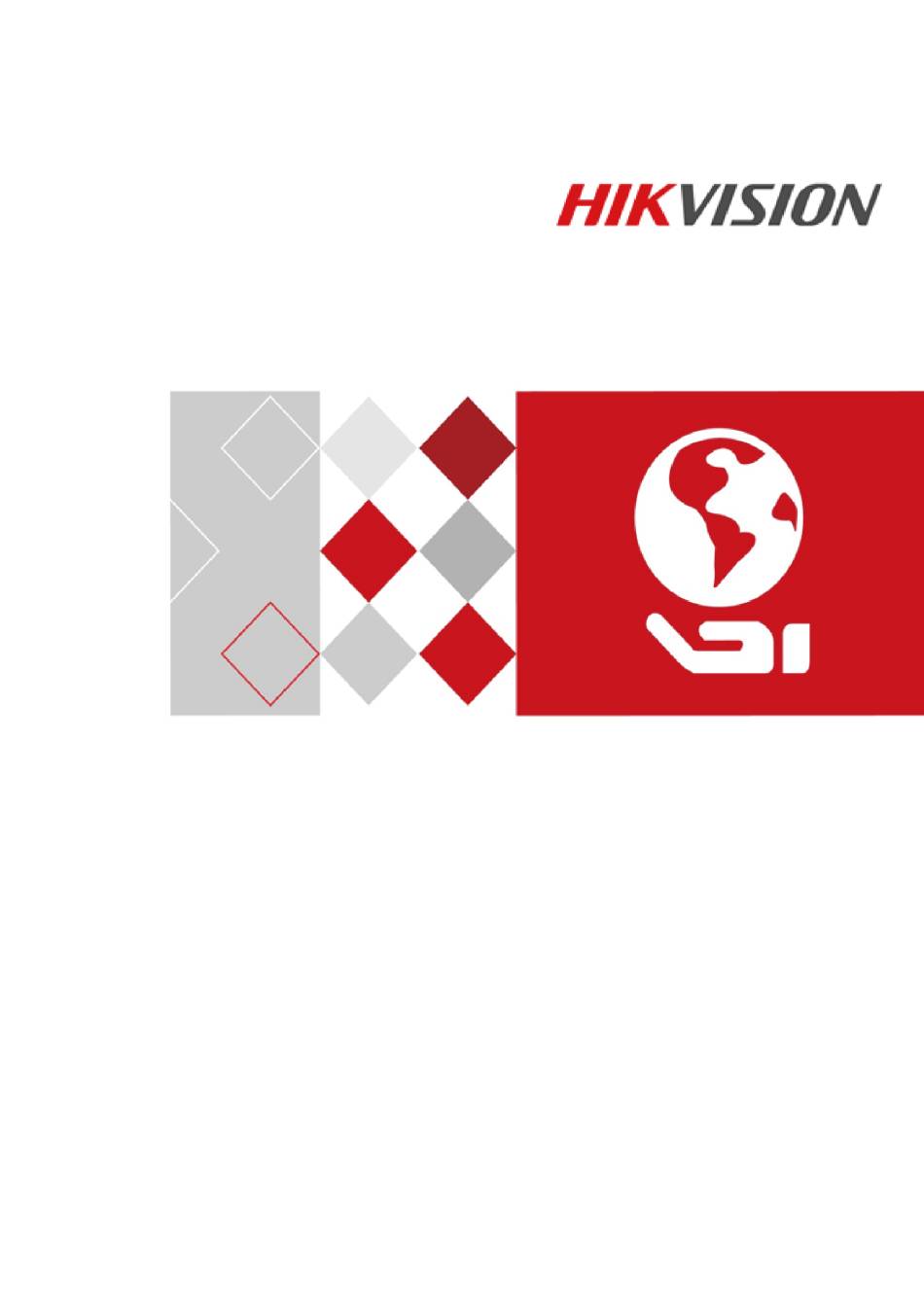

- Page 1 Body Camera Quick Start Guide...
- Page 2 SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.
- Page 3 Body Camera Quick Start Guide Regulatory information FCC information FCC compliance: Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 4 Body Camera Quick Start Guide Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: this device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of the device.
- Page 5 Body Camera Quick Start Guide Applicable Models This manual is applicable to the models listed in the following table. Series Model DS-MH2111/32G DS-MH2111 Series DS-MH2111/32G/GLE Symbol Conventions The symbols that may be found in this document are defined as follows. Symbol Description Provides additional information to emphasize or supplement important points of the main text.
- Page 6 Do not disassemble the product for repair or maintenance by yourself. Only use the battery, power adapter and assembly parts specified by the manufacturer. Consult the authorized dealer or technician from Hikvision for any question and request for product using.
-
Page 7: Table Of Contents
Body Camera Quick Start Guide TABLE OF CONTENTS TABLE OF CONTENTS ..................................6 Chapter 1 Introduction ..................................7 1.1 Package List ....................................7 1.2 Buttons and Interfaces ................................7 1.3 How to Charge ..................................10 Chapter 2 Start-up ....................................11 Chapter 3 Body Camera Assistant ..............................12 3.1 Assistant Installation ................................ -
Page 8: Chapter 1 Introduction
Body Camera Quick Start Guide Chapter 1 Introduction Purpose: Body camera, a video recording system, is typically used by law enforcement officers to record their interactions with the public and gather video evidences at crime scenes. 1.1 Package List Following objects are included in package. If something loses, contact us or our supplier for it. ... - Page 9 Body Camera Quick Start Guide Lens IR Light Recording Taping USB Interface HDMI Interface Figure 1-2 Overall View (2) Menu/Return Down SIM Card Slot OK/Play Angle Adjustable Clip Figure 1-3 Overall View (3) Table 1-1 Button Description Button Description LED 1 Flashing blue: Body camera is in network transmission.
- Page 10 Body Camera Quick Start Guide LED 3 Solid green: Body camera is starting up. Flashes in red with low frequency: Body camera is recording. LED 4 Solid red: Body camera is being charged. Flashes in red with high frequency: Body camera is in low battery.
-
Page 11: How To Charge
Body Camera Quick Start Guide 1.3 How to Charge Purpose: Follow the steps to charge device. Step 1 Open the cover of USB interface. Step 2 Connect body camera to the charger with the USB data cable. -
Page 12: Chapter 2 Start-Up
Ensure the power is sufficient. If not, charge body camera. For details, refer to 1.3 How to Charge. Step 1 Hold Sleep/Wake for 3 seconds. Then the LED 3 turns green, the HIKVISION logo pops up, and you will hear an audible notification. All of these indicate the body camera starts... -
Page 13: Chapter 3 Body Camera Assistant
Body Camera Quick Start Guide Chapter 3 Body Camera Assistant Purpose: Log into body camera via the Body Camera Assistant to view device’s logs, videos, audios, and pictures, and configure parameters remotely. Assistant mentioned below refers to the Body Camera Assistant. 3.1 Assistant Installation Purpose: The body camera assistant’s installation package is delivered with the CD. -
Page 14: Exit Assistant
Body Camera Quick Start Guide Before you start: Connect the body camera to your computer with the USB data cable. Step 1 Run the assistant. Step 2 Click Recognize device button to start recognizing. Then the recognized device will be listed. Figure 3-2 Recognized Device Step 3 Click the recognized device, input device password, and then click Login to log in. - Page 15 Body Camera Quick Start Guide Figure 3-4 Exit and Switch Device...
-
Page 16: Chapter 4 Network Settings
Body Camera Quick Start Guide Chapter 4 Network Settings 4.1 Dial Before you start: Install a SIM card first. Step 1 Go to Menu > Network Settings > Dial. Figure 4-1 Dial Step 2 Select On. Step 3 Save the settings. Step 4 Click OK on popup message box to reboot device to activate the settings. -
Page 17: Turn On Wi-Fi
Body Camera Quick Start Guide Figure 4-2 Wi-Fi Parameters 4.2.2 Turn on Wi-Fi Purpose: You can turn on Wi-Fi in local menu. Step 1 Go to Menu > Network Settings > Wi-Fi. Figure 4-3 Turn on Wi-Fi Step 2 Select Wi-Fi as On. Step 3 Press to save the settings. - Page 18 Body Camera Quick Start Guide Figure 4-4 Network Settings Step 2 Configure Net Resolution, Net Bitrate, or Net Frame Rate parameters. Step 3 Save the settings.
-
Page 19: Chapter 5 Camera Settings
Body Camera Quick Start Guide Chapter 5 Camera Settings 5.1 Encoding Parameters Purpose: You can set the video parameters, including resolution, frame rate, bitrate, and so on. Step 1 Go to Menu > Camera Settings. Step 2 Configure Video Resolution, Bitrate, Frame Rate, Pre-Record, Post-Record, etc. Step 3 Save the settings. -
Page 20: Taping
Body Camera Quick Start Guide The operation is invalid in playback, quick charging, and USB communication interface. Exit the interfaces before operation. The video is saved in meory in .mp4 format and named by recording starting time. 5.4 Taping Purpose: You can tape audios in crime scenes or other situations. -
Page 21: Chapter 6 Playback
Body Camera Quick Start Guide Chapter 6 Playback Purpose: You can play back recorded videos, pictures, and audios. Step 1 Go to Menu > Playback. Step 2 If verify function is on, you need to enter device password to get permission. Figure 6-1 Input Password Step 3 Select the playback file type as Video, Picture, or Audio. -
Page 22: Chapter 7 Platform
Body Camera Quick Start Guide Chapter 7 Platform Purpose: You can log into device via iVMS to monitor device and receive alarms. Step 1 In body camera assistant, go to Device Configuration > Platform Settings. Figure 7-1 Platform Settings Step 2 Check Enable to enable platform connection. Step 3 Select address type as IP or Domain Name. -
Page 23: Chapter 8 General System Configuration
Body Camera Quick Start Guide Chapter 8 General System Configuration 8.1 Time Synchronization Purpose: You can synchronize device time with your set time or network time. Step 1 In body camera assistant, go to Device Configuration > Time Settings. Figure 8-1 Time Settings Step 2 You can select time synchronization type as Auto Time Synchrony or Manual Time Synchrony by checking corresponding checkbox. -
Page 24: Positioning Settings
Body Camera Quick Start Guide Figure 8-2 IR Light Step 2 Select Infrared as OFF, ON, or AUTO. OFF: By default, IR light is off. The status adapts to daylight period. ON: In night period or dark environment, it is recommended to turn on IR light. ... -
Page 25: Chapter 9 User Information
Body Camera Quick Start Guide Chapter 9 User Information Purpose: You can customize the police ID and device ID. Step 1 Click the Device Configuration tab, and click Device Information item in the left menu list. Figure 9-1 User Information Step 2 You can edit the Police ID and Device ID. -
Page 26: Chapter 10 Troubleshooting
Body Camera Quick Start Guide Chapter 10 Troubleshooting Unable to start up. Possible Reason: Device runs out of power. Solution: Get device be charged. Unable to start recording. a) Possible Reason: Memory is full. Solution: Back up device and clear device memory. b) Possible Reason: Formatting memory error. - Page 27 Body Camera Quick Start Guide UD07722B...
