E NG LI SH
Mounting Systems
Mounting Clamps
Basic Headpads
1. PRO Mounting System
2. ONYX Mounting System
3. LYNX Mounting System
4. AXYS Mounting System
5. COBRA Xtra Mounting System
6. COBRA Xtra Flip back Mounting System
7. Mounting clamp for PRO style
8. Mounting clamp for Onyx style
9. Mounting clamp for AXYS
10. Mount clamp for Cobra Xtra and Xtra Flip back
11. Regular Plush style pad, collar, hardware and collar cover.
12 Adjustable Plush style
13. Contoured Cradle Style pad
14. Heads Up
15. SOFT Single Occipital
16. SOFT Dual Occipital

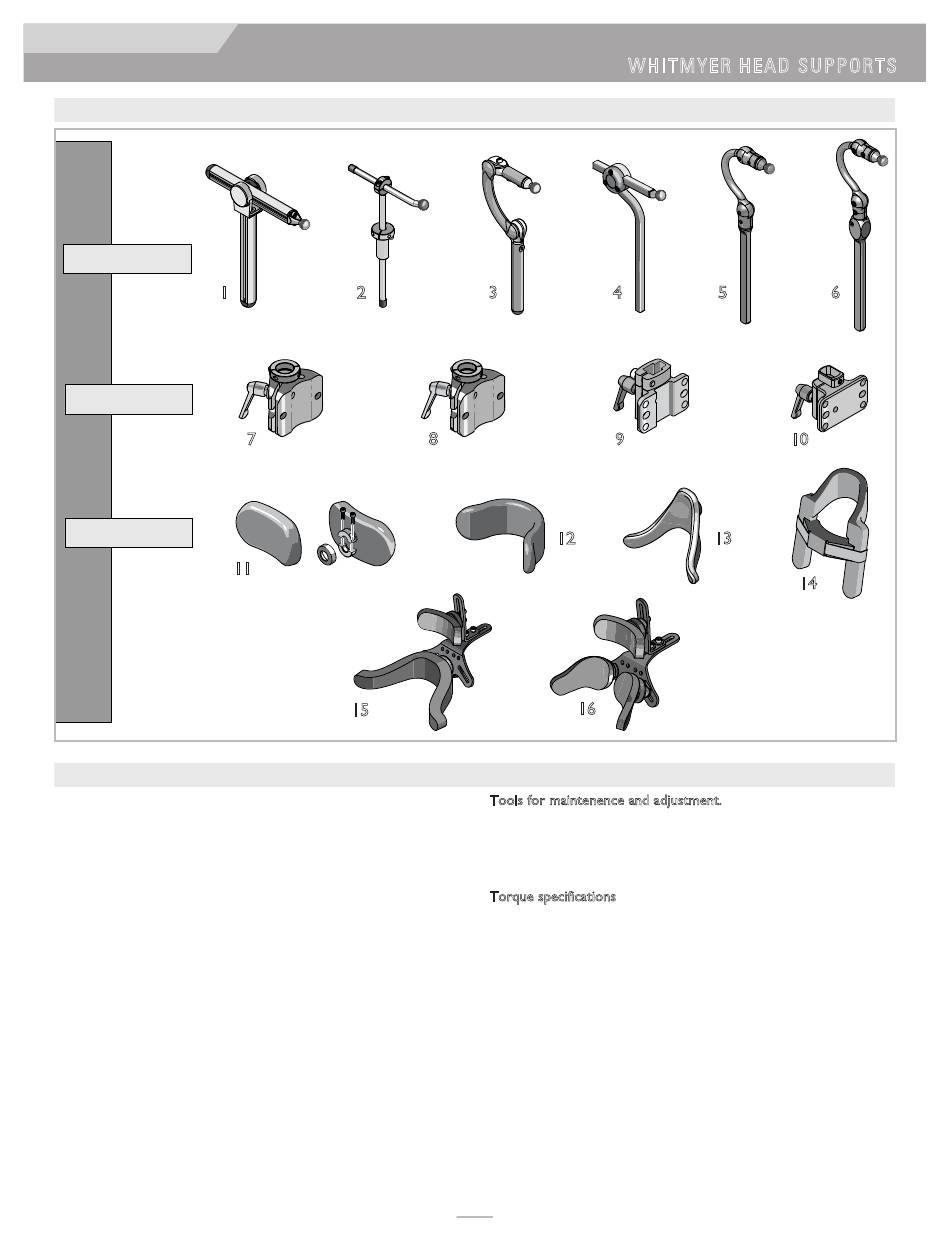

III. YOUR HEAD SUPPORT AND ITS PARTS
1 2
7
11
15
IV. WHITMYER HEAD SUPPORTS
3
8
12
16
Tools for maintenence and adjustment.
3/16" Imperial hex key
3/32" Imperial hex key
10mm combo wrench
Torque specifications
All fasteners should be tightened to
approximately 2.3 N-m (20 in/lbs)
unless otherwise specified.
3
WHITM YER HEAD SUPPORTS
4 5
9 10
13
6
14
124997 Rev. A
