SMC Networks AS Series Manual page 8

AS
Series

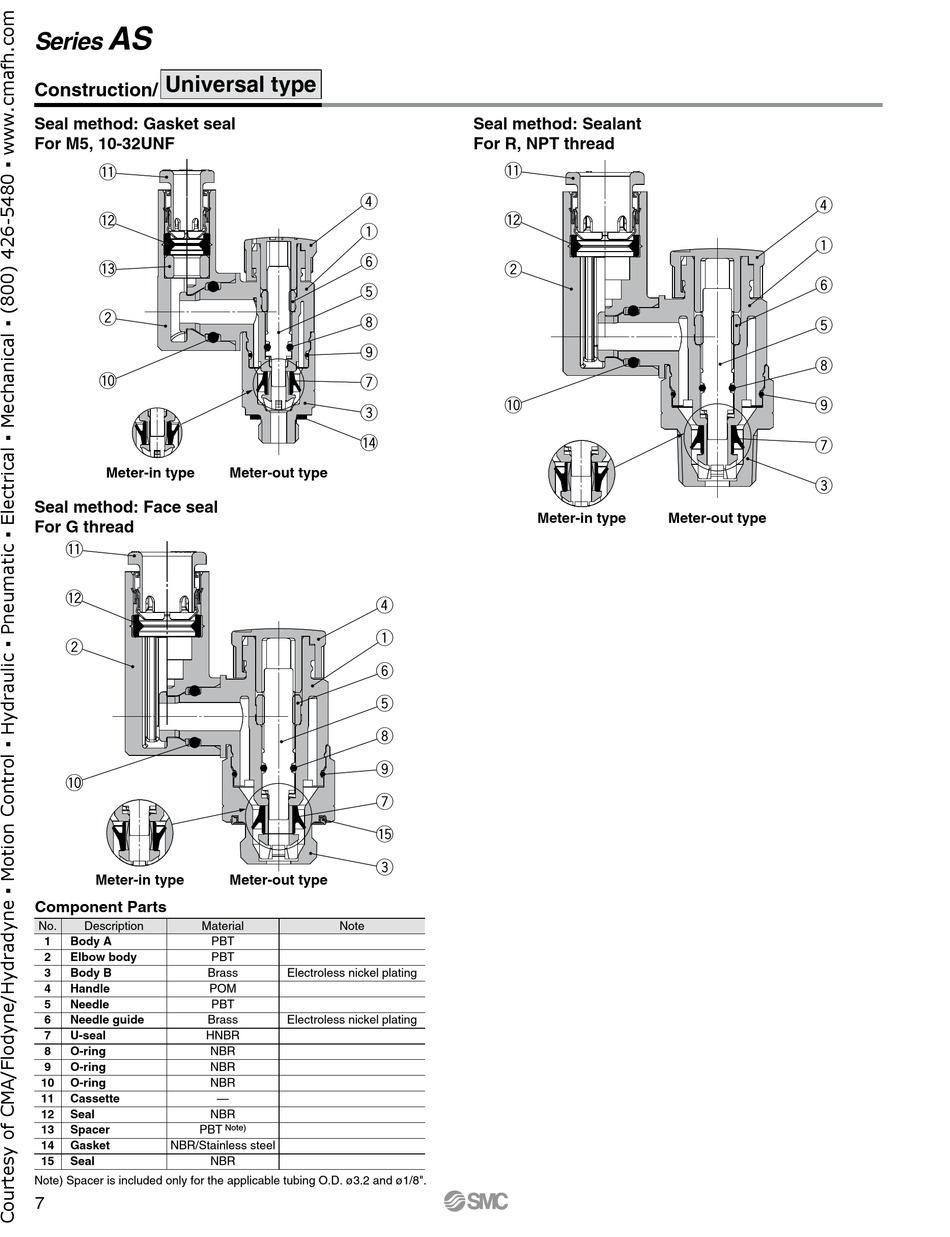

Universal type
Construction/
Seal method: Gasket seal
For M5, 10-32UNF
!1
!2
!3
w
!0
Meter-in type
Seal method: Face seal
For G thread
!1
!2
w
!0
Meter-in type
Component Parts
No. Description Material
1 Body A PBT
2 Elbow body PBT
3 Body B
Brass
4 Handle
POM
5 Needle PBT
6 Needle guide Brass
7 U-seal
HNBR
8 O-ring NBR
9 O-ring NBR
10 O-ring
NBR
11 Cassette
12 Seal NBR
13 Spacer PBT
14 Gasket
NBR/Stainless steel
15 Seal NBR
Note) Spacer is included only for the applicable tubing O.D. ø3.2 and ø1/8".
7
r
q
y
t
i
o
u
e
!4
Meter-out type
r
q
y
t
i
o
u
!5
e
Meter-out type
Note
Electroless nickel plating
Electroless nickel plating
—
Note)
Seal method: Sealant
For R, NPT thread
!1
!2
w
!0
Meter-in type
r
q
y
t
i
o
u
e
Meter-out type
