READ THIS SHEET FIRST
READ THIS SHEET FIRST
Thank you for purchasing the Canon MultiPASS F80.
To get your machine ready for use, please follow the instructions in this Set-Up Sheet
before referring to any other documentation.
Unpack the machine and its components.

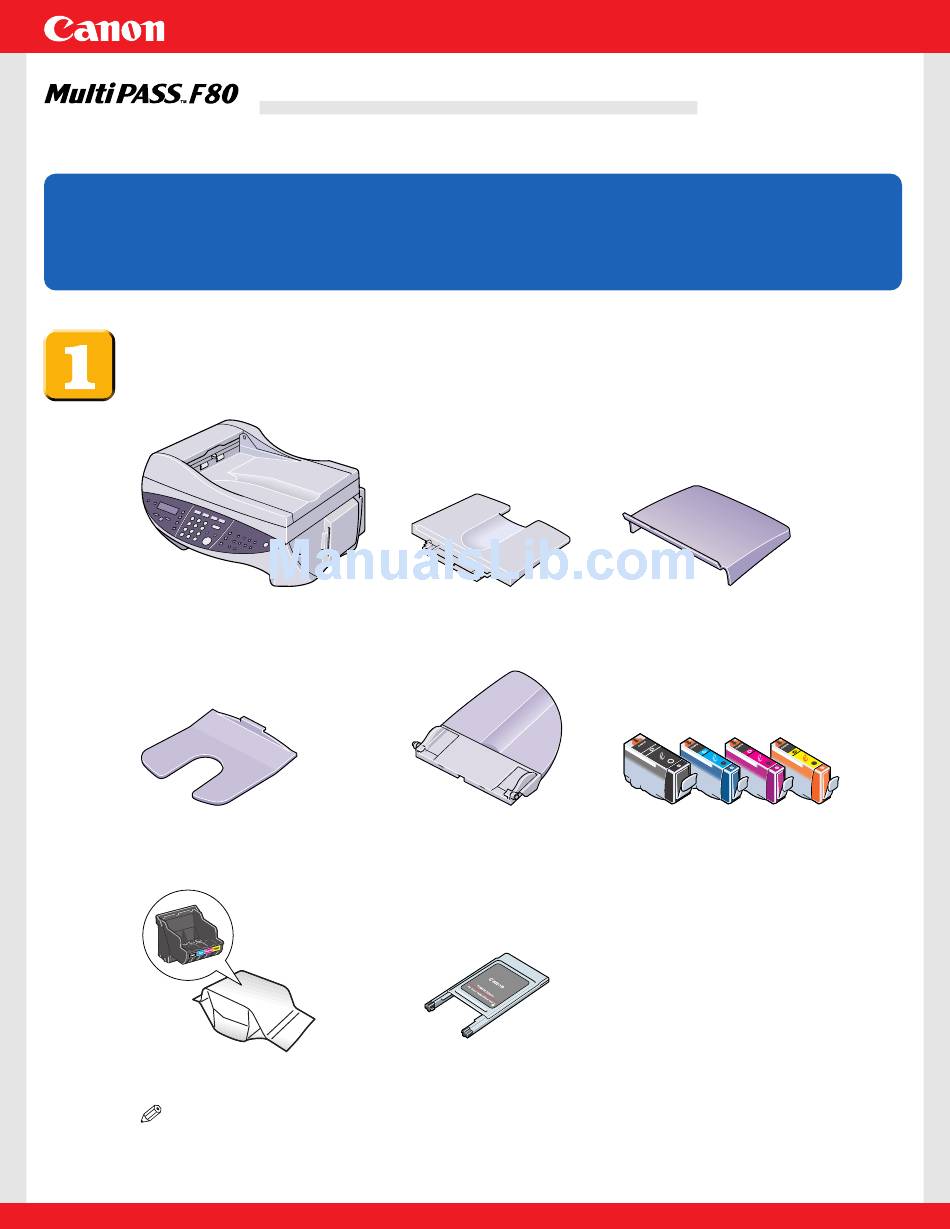

Check that you have the following:
Machine
Paper output tray
Printhead
NOTE
• A printer cable is not included. You must purchase a USB cable (less than 16.4 ft./5 m) to
connect your machine to a computer.
Set-Up Sheet
Set-Up Sheet
Multi-purpose tray
Document tray
PCMCIA card adapter
Tray cover
Ink tanks
(Black, cyan, magenta, yellow)
Power cord
Documentation
(Set-Up Sheet, Basic Guide, Extended
Service Plan, Registration Card)
MultiPASS Suite software CD-ROM
Telephone line cord
Destination labels
