INSTALLATION / OWNER'S MANUAL
INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE CONSUMER
CONSUMER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame
3. If odor continues, keep away from the appliance and
immediately call your gas supplier or fire department.
Do not store or use gasoline or other flammable vapours
and liquids in the vicinity of this or any other gas fired
appliance.
An LP-cylinder not connected for use shall not be stored
in the vicinity of this or any other appliance.
Keep this manual in a secure place
Record for future reference:
Model #:
Serial #:
(information located on heater rating label)
sportSchwank
HIGH EFFICIENCY INFRARED HEATER
DANGER
WARNING:
WARNING: For Outdoor Use Only
.
sportSchwank Manual
IM080731
RD: APR 2019
RL: 01B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Schwank sportSchwank Series
Summary of Contents for Schwank sportSchwank Series
- Page 1 sportSchwank HIGH EFFICIENCY INFRARED HEATER INSTALLATION / OWNER’S MANUAL INSTALLER: LEAVE THESE INSTRUCTIONS WITH THE CONSUMER CONSUMER: RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE DANGER If you smell gas: 1. Shut off gas to the appliance. 2. Extinguish any open flame 3.
- Page 2 This publication, or parts thereof, may not be reproduced in any form, without prior written consent from the manufacturer Unauthorized use or distribution of this publication is strictly prohibited. Schwank Group PO Box 988, 2 Schwank Way 5285 Bradco Boulevard Waynesboro, Georgia, Mississauga, Ontario...
-
Page 3: Table Of Contents
sportSchwank SERIES HIGH EFFICIENCY INFRARED HEATER FOR OUTDOOR SPACES TABLE OF CONTENTS TOPIC ....PAGE TOPIC ....PAGE IMPORTANT WARNING INFORMATION: ……FRONT & INSIDE COVER, PAGE 1, 2 1. GENERAL ........3 9. SEQUENCE OF OPERATION- 2. INSTALLATION REQUIREMENTS .. 3 FENWAL 35-60 DSI ....... -
Page 4: Important Warning Information
WARNING Installation and repair should be done by a qualified service per- son. The heater should be inspected before use and at least annu- ally by a qualified service person. More frequent cleaning may be required as necessary. It is impera- tive that control compartment, burners and circulating air passage- ways of the heater be kept clean. - Page 5 WARNING The heater, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Elec- trical Code, ANSI/NFPA 70 in the USA, or the Canadian Electrical Code, CSA C22.1. WARNING Clearance from combustibles Location of flammable or explosive objects, liquids or vapors close to the heater may cause fire or explosion and result in property damage, injury...
-
Page 6: General

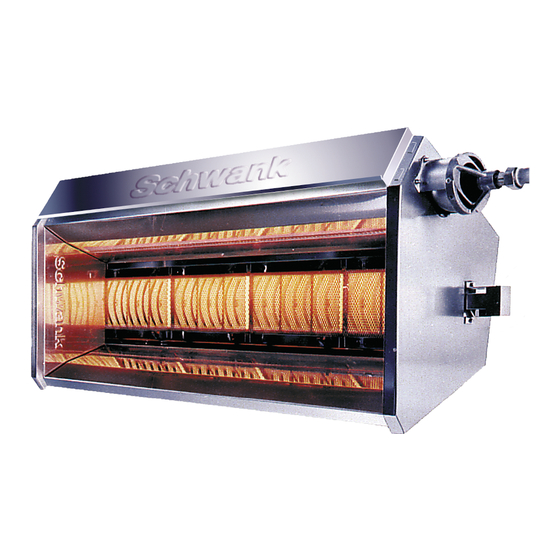

1. GENERAL These instructions are for the sportSchwank Series heater, a gas fired combined intensi- ty infrared heater suitable for outdoor installation. This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage or any other enclosed area. -
Page 7: Service Access
When angle mounting, the short axis may be rotated to a maximum of 30°. Refer to FIGURE 3. Improper angle mounting can result in damage to the heater and unsafe or uncertain operation, and will void warranty. IMPORTANT: For either horizontal or angle mounting, the long axis of the heater must be level. -
Page 8: Installation Procedures
[3.5 KpA]. 2.5 GAS PRESSURE REQUIREMENTS The sportSchwank Series heater is to utilize natural gas only. The maximum supply pressure must be limited to 14" w.c. (0.5 psi) [35 mb]. If the sup- ply line pressure is above 14" w.c. [35 mb], then a separate pressure reducing regula- tor must be installed. -
Page 9: Lighting Instructions
3. The sportSchwank Series heater is approved for both horizontal and angle mount- ing. When angle mounting, the short axis may be rotated to a maximum of 30°. For either horizontal or angle mounting on the short axis, the long axis of the heater must be in a horizontal position. - Page 10 30° 30° 30° Page 7 sportSchwank Manual IM080731 RD: APR 2019 RL: 01B...
-
Page 11: Dimensions
6. DIMENSIONS & CONFIGURATION sportSchwank SERIES TABLE 2 Dimensions Capacity Weight sportSchwank Elect.* Btuh [kW] Lbs [kg] In [cm] In [cm] 35" [89] 21.7" [55.1] 33,500 [10] 50 [23] 24 VAC 50" [127] 32.6" [82.8] 50,000 [15] 71 [32] 60 Hz 57"... -
Page 12: Bustibles
7. MINIMUM CLEARANCES TO COMBUSTIBLES FIGURE 4: MINIMUM CLEARANCES TO COMBUSTIBLE Angle Mounted Horizontal 1° to 30° TABLE 3: MINIMUM CLEARANCES TO COMBUSTIBLE Angle Mounted 1° to 30° Horizontal ABOVE REAR BELOW FRONT SIDES UNDER sportSchwank In. [cm] In. [cm] In. -
Page 13: Fenwal 35-60 Dsi
8. ELECTRICAL REQUIREMENTS The heater, when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1. Single heater requires a 24 Volt, 60 Hz electrical transformer sized at 40 VA. When multiple heaters are controlled in a single zone, a 24 Volt 60 Hz transformer sized at 40 VA for the first heater, plus 20 VA for each additional heater in the zone. - Page 14 If the established flame signal is lost while the burner is operating, the control will re- spond within 0.8 seconds. The HV spark will be energized for a trial ignition period in an attempt to relight the burner. If the burner does not light the control will make two more attempts to relight the burner before de-energizing the gas valve.
-
Page 15: Dsi
10. WIRING DIAGRAM - Fenwal 35-60 DSI Control Fenwal Control Terminal Designation Error Mode LED Indication Internal Control Failure Steady on TH/W Thermostat Input System Ground Flame with No Call for 2 flashes heat Valve Power Ignition Lockout 3 flashes Valve Ground Alarm Fault Conditions:... -
Page 16: Heaters Per Zone
11.WIRING DIAGRAM - Fenwal 35-60 DSI Control - 24 VOLT SWITCHING Error Mode LED Indication Internal Control Failure Steady on Flame with No Call for 2 flashes heat Ignition Lockout 3 flashes Fault Conditions: The LED will flash on for 1/4 second, then off for 1/4 second during a fault condi- tion. -
Page 17: Spark Ignition Circuit
12. SPARK IGNITION CIRCUIT The step-up transformer in the ignition control provides spark ignition at 30,000 volts (open circuit). To check the spark ignition circuit, proceed as follows. 1 Shut off gas supply to the gas control 2 Disconnect the ignition cable at the ignition control stud terminal to isolate the circuit from the spark igniter or igniter/sensor 3 Prepare a short jumper lead, using heavily insulated wire such as ignition cable CAUTION... -
Page 18: Maintenance Guide
14. MAINTENANCE GUIDE WARNING: Improper adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. Service to the heater must be performed by a qualified gas service technician. Keep the appliance area clear and free from combustible materials, gasoline and •... -
Page 19: Service Access
Replace gasket and re-seat tile. Refer to Section 13. Troubleshooting Guide for further servicing information • Schwank Technical Service is available during regular business hours (Eastern • Time Zone) to qualified gas service technicians at 1-877-446-3727 Have available the information required in the Commissioning Report (pages •... -
Page 20: Troubleshooting Guide
16. TROUBLESHOOTING GUIDE *CHECK 120 V AT PRIMARY TRANSFORMER TURN HEATER ON : *CHECK VOLTAGE OUT AT SECONDARY. *IF THERE IS NOT 24V TO SECONDARY...REPLACE THE TRANSFORMER *CHECK 24V WIRING FROM TRANSFORMER TO IGNITION CONTROL / AND CHECK IF CORRECT GAUGE OF WIRE FOR DISTANCE. - Page 21 PREVIOUS PAGE *CHECK FOR CORRECT MANIFOLD GAS PRESSURE MAIN BURNER LIGHTS *CHECK FOR OBSTRUCTION IN GAS OR ORIFICE (INSECTS, SPIDERS COCOONS ETC.) CHECK FLAME SIGNAL WITH METER FOR 0.7 µA. IF READING IS LOW CHECK GAS PRESSURE, IF OK SPARK STOPS WHEN CHANGE SENSOR.
-
Page 22: Commissioning Report
17. COMMISSIONING REPORT COMMISSIONING REPORT AS PER I&O MANUAL AND LOCAL CODES CONTRACTOR NAME: ................DATE........ ADDRESS:............................................................CITY:..................PHONE:................... CELL: ..................JOB SITE......................CITY........ HEATER MODEL NUMBER:......................HEATER SERIAL NUMBER: ......................EQUIPMENT HAS BEEN FACTORY FIRED AND TESTED BEFORE DELIVERY, NEVERTHELESS IT IS NOT A PLUG IN APPLIANCE..IT DOES REQUIRE COMMISSIONING AND FIELD ADJUSTMENTS TO ENSURE THAT SITE CONDITIONS ARE COMPATIBLE WITH THIS HEATER, AND TO ALLEVIATE NUISANCE CALL BACKS FOR THE CONTRACTOR, THE FOLLOWING... - Page 23 TO BE COMPLETED BY THE LICENSED INSTALLER: PATIO HEATER COMMISSIONING REPORT TYPE OF GAS: IS HEATER EXPOSED TO CHEMICAL OR CORROSIVE ATMOSPHERE: IS AN OPEN FLAME COMPATIBLE WITH THE INSTALLED LOCATION: MINIMUM CLEARANCES CONFORM AS PER I&O MANUAL: IF THIS IS A HIGH ALTITUDE AREA WHAT IS THE ALTITUDE ABOVE SEA LEVEL Feet IS HEATER SHORT AXIS HORIZONTAL WITH THE VENTURI ON TOP: IS GAS SUPPLY LINE ADEQUATELY SIZED FOR SYSTEM VOLUME:...
-
Page 24: Replacement Parts List
18. Replacement Parts are available from your local Schwank distributor. Schwank Customer and Technical Services can be reached at 1-877-446-3727. Page 21 sportSchwank Manual IM080731 RD: APR 2019 RL: 01B... -
Page 25: Limited Warranty
In such cases, the above limitations or exclusions may not apply to you and are not intended to do so where prohibited by law. This warranty gives you specific legal rights. You may also have other rights which vary by each jurisdiction. SCHWANK USA, INC. 2 SCHWANK WAY, WAYNESBORO, GEORGIA. 30830 SCHWANK LTD.
