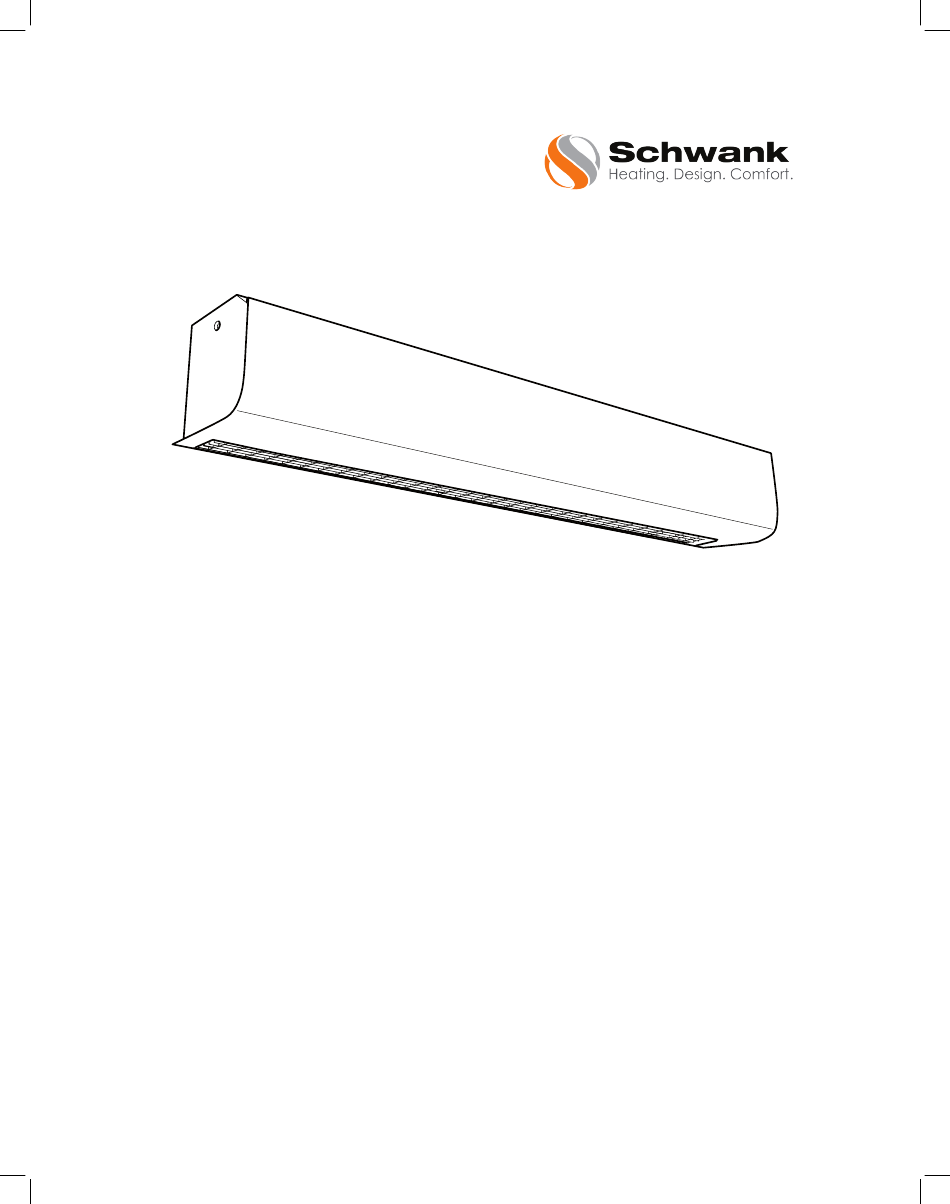

  • Page 1 Instructions Swift5 Series Model Drive Thru Air Curtain...
  • Page 2 Dimensions Imperial (in) 31.1 15.4...

  • Page 3: Mounting And Installation

    Mounting and Installation Imperial (in) 28.7 26.9 11.8 Ø E (3x) Fig. 1: Mounting bracket Fig. 2: Open the unit...

  • Page 4: Minimum Distance

    Minimum distance Imperial (in) 19.7 Flammable material Fig. 3: Minimum distance...
  • Page 5 Wiring Diagram - Swift5 Series + 3 kW + 3 kW + 5 kW...

  • Page 6: Technical Specifications

    Technical Specifications Electrical heat - Swift5 Series Output step Airflow Sound power * Sound pressure * Amperage Imperial chart Voltage (V) Weight (lb) Type (kW) (cfm) (dB(A)) (dB(A)) (heat) (A) AC-ME36-20 2.5/3.7 208V~ 17.7 ) Sound power (L ) measurements according to ISO 27327-2: 2014, Installation type E.
  • Page 7 • Read the safety instructions before performing installation and/or maintenance activities on the unit. • Installation and/or maintenance activities on the unit may only be performed by qualified technical staff. • The unit shall not be installed and used outdoors or in environments that are aggressive, or potentially explosive.

  • Page 8: Operation

    This creates a temperature separating air barrier that prevents cold air from pushing in and hot air from flowing out. Swift5 Series also gives additional heat and in this Low speed - 2.5 kW way also improves the working environment.

  • Page 9: Maintenance

    Maintenance Handling of product at end of working life Since fan motors and other components are This product may contain substances necessary for maintenance free, no maintenance other than functionality of product but potentially dangerous cleaning is necessary. The level of cleaning can vary for the environment.

  • Page 10: Montage

    4 mm2/AWG12 minimum. Application Voir les schémas de raccordement. Le Swift5 Series est initialement conçu pour les petites ouvertures, telles que les kiosques et les guichets, où un débit d'air fin et continu est nécessaire. Ceci crée Regulation une barrière thermique, empêchant l'air froid d'être...

  • Page 11: Dépannage

    Entretien Gestion du produit en fin de vie Les moteurs du ventilateur et les autres organes de Ce produit peut contenir des substances qui sont l'appareil ne nécessitant aucune maintenance, seul nécessaires à son fonctionnement, mais peuvent un nettoyage régulier est nécessaire. La fréquence constituer un danger pour l'environnement.

  • Page 12: Caractéristiques Techniques

    Traduction des pages de présentation Console de montage ■ Mounting bracket Ouvrir l'appareil ■ Open the unit Distances minimales ■ Minimum distance Matériau inflammable ■ Flammable material Accessoires ■ Accessories Caractéristiques techniques Etages de puissance ■ Output step (kW) Débit d'air ■...
  • Page 13 1-877-686-3779 (toll-free) 1-706-554-6191 csr@schwankgroup.com schwankgroup.com/schwankair Canada 2 Schwank Way, 5285 Bradco Blvd., Waynesboro, GA Mississauga, ON 30830 L4W 2A6...
