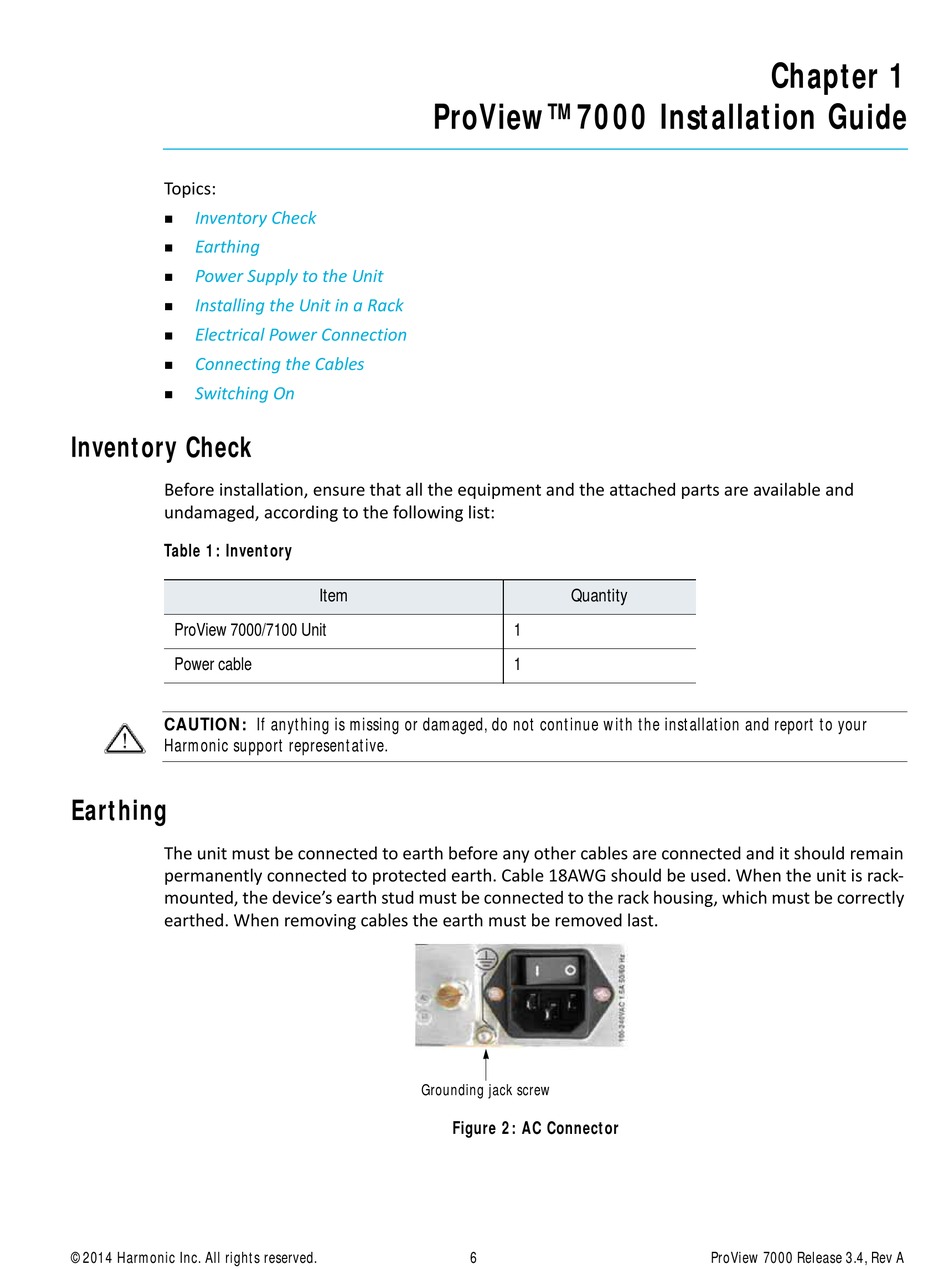

Chapter 1: Proview™ 7000 Installation Guide; Inventory Check; Earthing - Harmonic ProView 7000 Installation Manual

Topics:
Inventory Check


Earthing


Power Supply to the Unit

Installing the Unit in a Rack

Electrical Power Connection

Connecting the Cables

Switching On


Inventory Check

Before installation, ensure that all the equipment and the attached parts are available and
undamaged, according to the following list:
Table 1: Inventory
ProView 7000/7100 Unit
Power cable
CAUTION: If anything is missing or damaged, do not continue with the installation and report to your
Harmonic support representative.
Earthing
The unit must be connected to earth before any other cables are connected and it should remain
permanently connected to protected earth. Cable 18AWG should be used. When the unit is rack‐
mounted, the device's earth stud must be connected to the rack housing, which must be correctly
earthed. When removing cables the earth must be removed last.
© 2014 Harmonic Inc. All rights reserved.
ProView™ 7000 Installation Guide
Item
Grounding jack screw
Figure 2: AC Connector
6
Quantity
1
1
Chapter 1
ProView 7000 Release 3.4, Rev A
