2.3
Network Connection
1. Connect a D6680/D6682 (optional) to COM1
(Figure 17). Use the straight modem cable provided
to connect to Channel 1 on the network adapter.

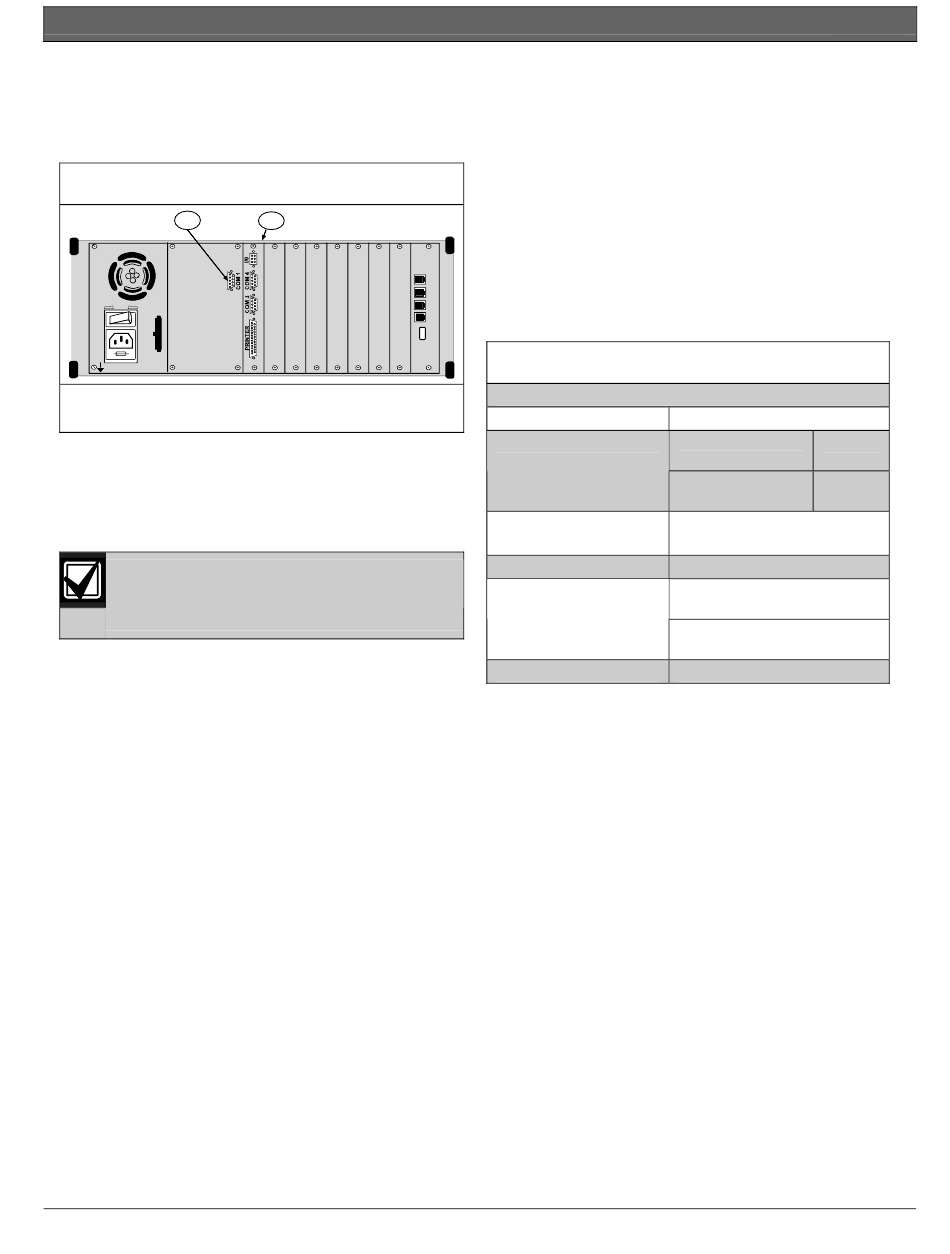

Figure 17: Location of COM1
1
Detection Systems Inc.
Fairport N.Y.
USA
ON
OFF
B
A
T
T
E
R
Y
Input:
85-264 AC
47-63 Hz
2.5 Amps
1 - COM1
2 - Rear of D6600
2. Use a CAT5e or CAT6 Ethernet cable to connect
the other end of the second network adapter to the
network hub.
3. Connect a PC with an Ethernet card to the
network using a CAT5e or CAT6 Ethernet cable.
This PC is connected to the network for
D6200 software applications and for
configuring the network adapters.
4. Apply power to the network adapters.
5. Using a PC connected to the network, configure
the network adapters through a telnet connection.
Refer to Configuration of the D6680/D6682 Network
Adapters in the Conettix D6600 Network System Guide
(P/N: 4998122712) for further details. Contact the
network administrator for assistance.
Bosch Security Systems, Inc. | 1/09 | 4998122715-02
2
1
2
3
4
D6672 | Installation Instructions | 3.0 Operation
3.0 Operation
Use the optional Conettix D6672 COM1 Expansion
Kit to minimize network traffic on the D6680/D6682
connected to COM4 (on the D6600). The D6672 can
communicate control panel messages and
programming from the D6200 Programming Software
using a network connection. COM4 operates the same
as COM1 but can also communicate the automation
output through the network connection.
4.0 Specifications
Table 1: Specifications
Voltage Range
Current Required
Dimensions (H x W x D)
Weight
Connectors
Operating Temperature
12 VDC Nominal
Additional Battery
10 mA
Current
Additional Standby
2 mA
UPS Current
4 in. x 6.8 in. x 0.75 in.
(10.2 cm x 17.3 cm x 19 mm)
3.9 oz (111 g)
4-pin (from back of D6672 to
D6600 CPU Card)
9-pin RS-232 Port (from front
of D6672 to D6680/D6682)
+32°F to 122°F (0°C to 50°C)
