Bosch 7738007443 Installation Instructions

GreenTronic 7000T Duct Adapter Kit Installation Instructions
1 Duct Adapter Kit Overview
The duct adapter kit is required for the ducting the hybrid electric water heater
GreenTronic 7000 T when sufficient air flow is unavailable. Refer to the product
manual for further guidance.
CAUTION
Personal injury, property damage!
Be aware if using non-insulated ducting there is an increased risk of condensation
on the exterior of the exhaust ducting. This may cause a slip hazard or damage to
property.

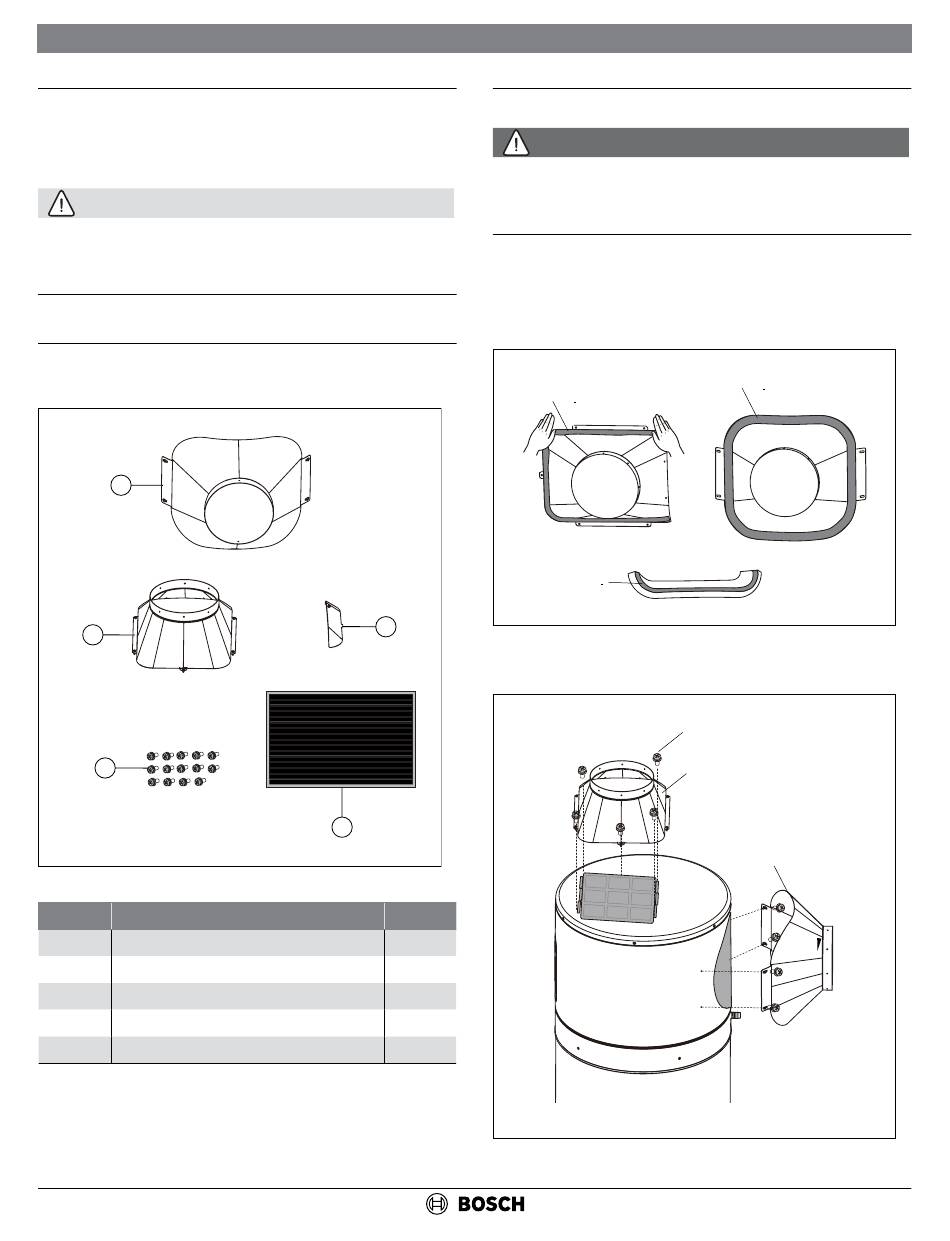

2 Duct Adapter Kit Components
The following parts are included and are not sold individually:
1
2
4
Figure 1
Item Descripton
1 Exhaust duct adapter
2 Intake duct adapter
3 Opening cover for air filter access
4 Screws
5 Sealing gasket strips
Table 1
Bosch Thermotechnology Corp.
1-800-283-3787 | www.bosch-homecomfort.us
BTC 755003303 A | 06.2024
3
Hazardous voltage!
Before performing any work on the water heater make sure the electrical supply to the
water heater is disconnected. Failure to do this may result in DEATH, SERIOUS BODILY
INJURY OR PROPERTY DAMAGE.
1. Disconnect power from water heater at the breaker so the water heater is isolated
from the power supply.
2. Apply supplied adhesive gasket sealing strips to the outer edges of the duct
adapters.
3
Figure 2
3. Mount duct adapters with screws to the unit.
5
Qty
1
1
1
10
4
Figure 3
Installation
DANGER
Sealing Gasket
Sealing Gasket
Sealing
Gasket
Screw
Intake Duct Adapter
Part No. 7738007443
Exhaust Duct Adapter
1
