D6672 | Installation Instructions | 2.0 Installation
If this is an unkeyed connector, ensure that
the red wire is on top closest to the ribbon
cable.

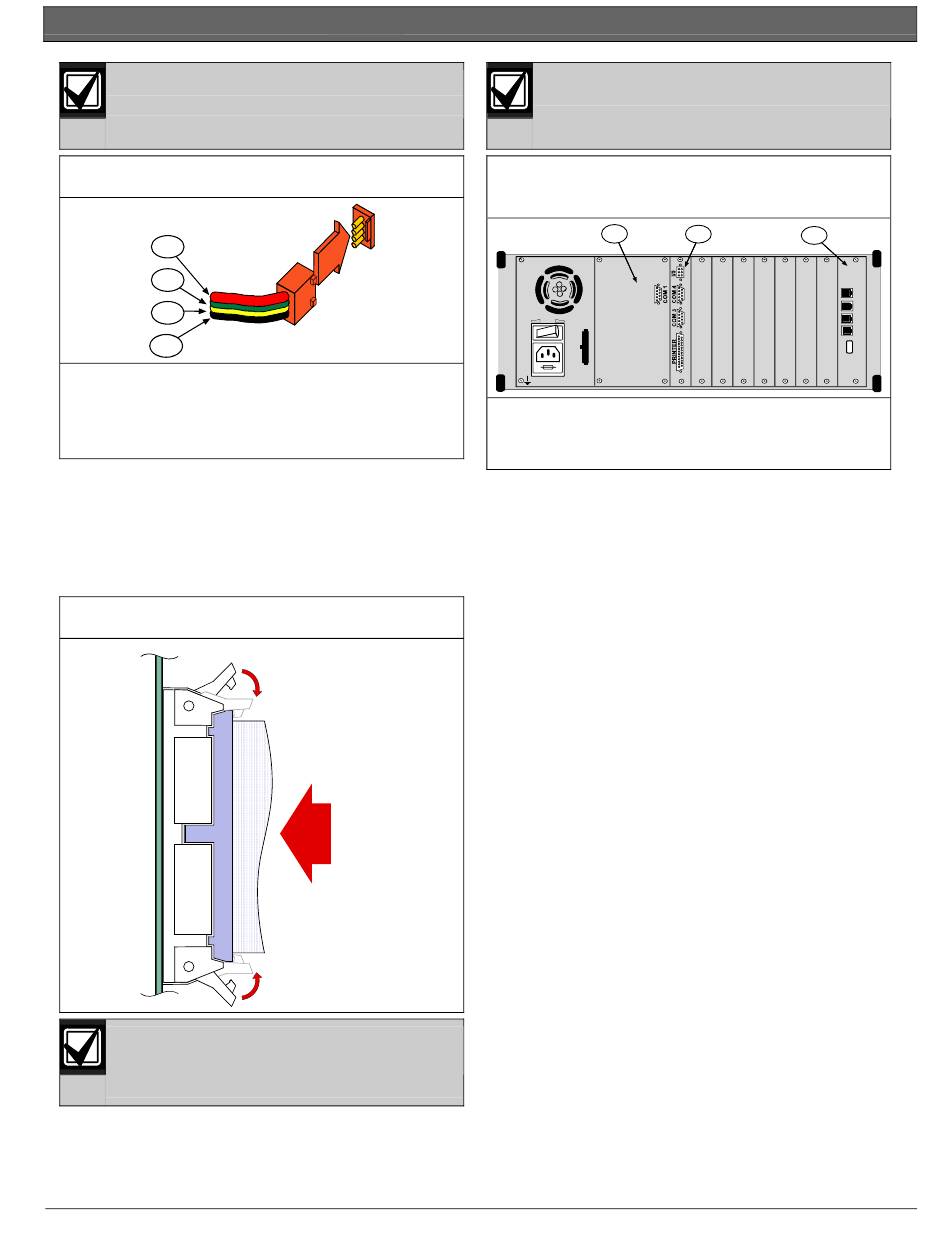

Figure 14: Connecting the Cable
4
3
2
1
1 - Black
2 - Yellow
3 - Green
4 - Red
14. Reconnect the blue ribbon cable by pushing down
on the connector until the tabs move inward
(Figure 15).
15. Slide the card back into the D6600 along the card
guides. Push on the plastic tab to firmly seat the
card.
Figure 15: Reconnecting the Ribbon Cable
When reseating the CPU Card, align the
connectors correctly with the D6600
backplane to avoid bending the pins.
16. Close the front panel.
6
When installation is complete, the rear of
the panel should resemble Figure 16.
Figure 16: Rear Panel of D6600 (with D6672
Installed)
1
Detection Systems Inc.
Fairport N.Y.
USA
OFF
ON
B
A
T
T
E
R
Y
Input:
85-264 AC
47-63 Hz
2.5 Amps
1 - Conettix D6672 COM1 Expansion Kit
2 - Conettix D6615 CPU Terminator Card
3 - Conettix D6645 Line Terminator Card
To connect COM1 to the network, refer to
Section 2.3 Network Connection on page 7.
Bosch Security Systems, Inc. | 1/09 | 4998122715-02
