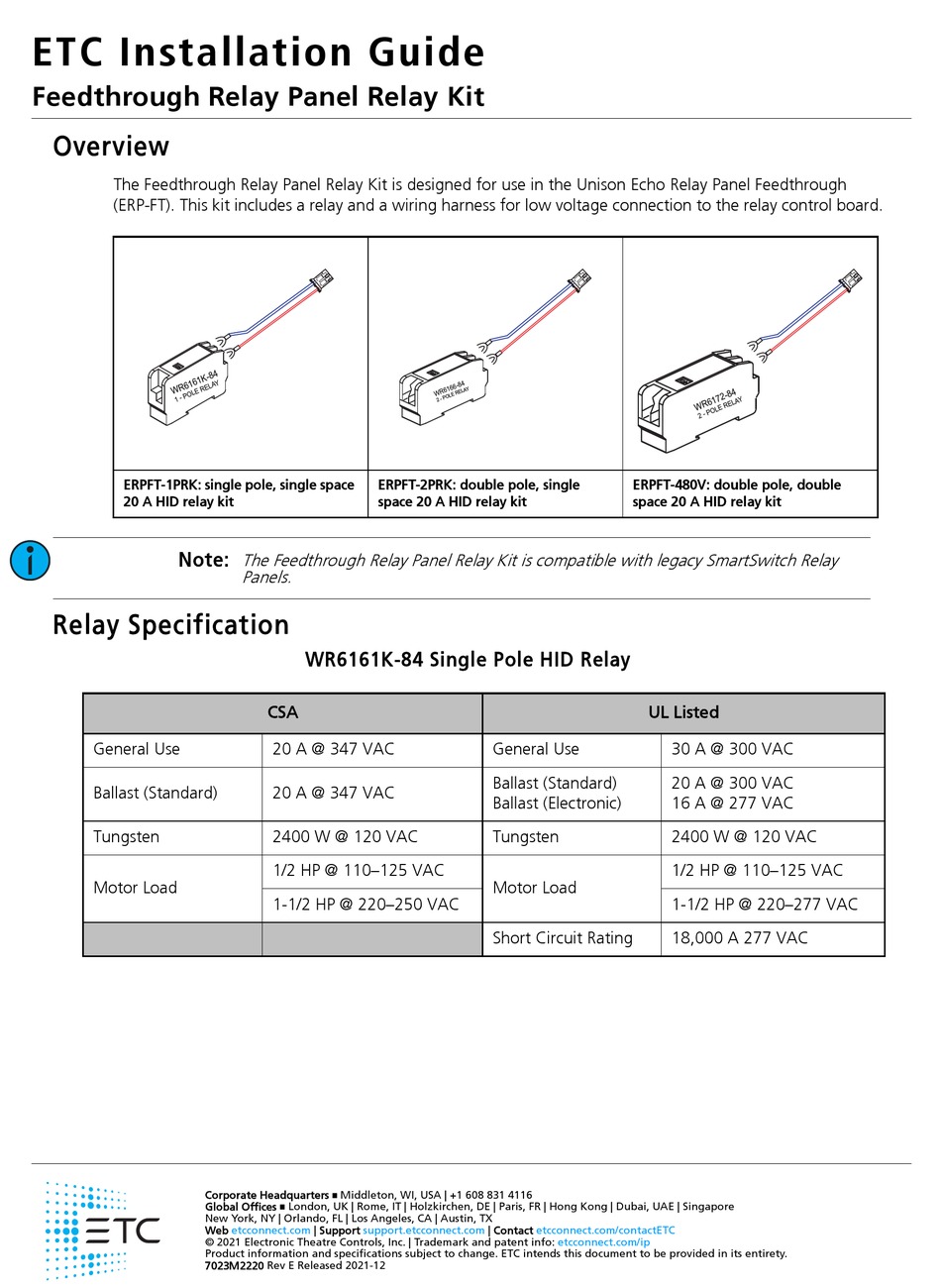

ETC Installation Guide
Feedthrough Relay Panel Relay Kit

Overview

The Feedthrough Relay Panel Relay Kit is designed for use in the Unison Echo Relay Panel Feedthrough
(ERP-FT). This kit includes a relay and a wiring harness for low voltage connection to the relay control board.
ERPFT-1PRK: single pole, single space
20 A HID relay kit
Note:

Relay Specification

General Use
Ballast (Standard)
Tungsten
Motor Load
Corporate Headquarters
Global Offices
New York, NY | Orlando, FL | Los Angeles, CA | Austin, TX
Web
© 2021 Electronic Theatre Controls, Inc. | Trademark and patent info:
Product information and specifications subject to change. ETC intends this document to be provided in its entirety.
7023M2220 Rev E Released 2021-12
ERPFT-2PRK: double pole, single
space 20 A HID relay kit
The Feedthrough Relay Panel Relay Kit is compatible with legacy SmartSwitch Relay
Panels.
WR6161K-84 Single Pole HID Relay
CSA
20 A @ 347 VAC
20 A @ 347 VAC
2400 W @ 120 VAC
1/2 HP @ 110–125 VAC
1-1/2 HP @ 220–250 VAC
Middleton, WI, USA | +1 608 831 4116
London, UK | Rome, IT | Holzkirchen, DE | Paris, FR | Hong Kong | Dubai, UAE | Singapore
etcconnect.com
| Support
support.etcconnect.com
ERPFT-480V: double pole, double
space 20 A HID relay kit
UL Listed
General Use
Ballast (Standard)
Ballast (Electronic)
Tungsten
Motor Load
Short Circuit Rating
| Contact
etcconnect.com/contactETC
etcconnect.com/ip
30 A @ 300 VAC
20 A @ 300 VAC
16 A @ 277 VAC
2400 W @ 120 VAC
1/2 HP @ 110–125 VAC
1-1/2 HP @ 220–277 VAC
18,000 A 277 VAC
