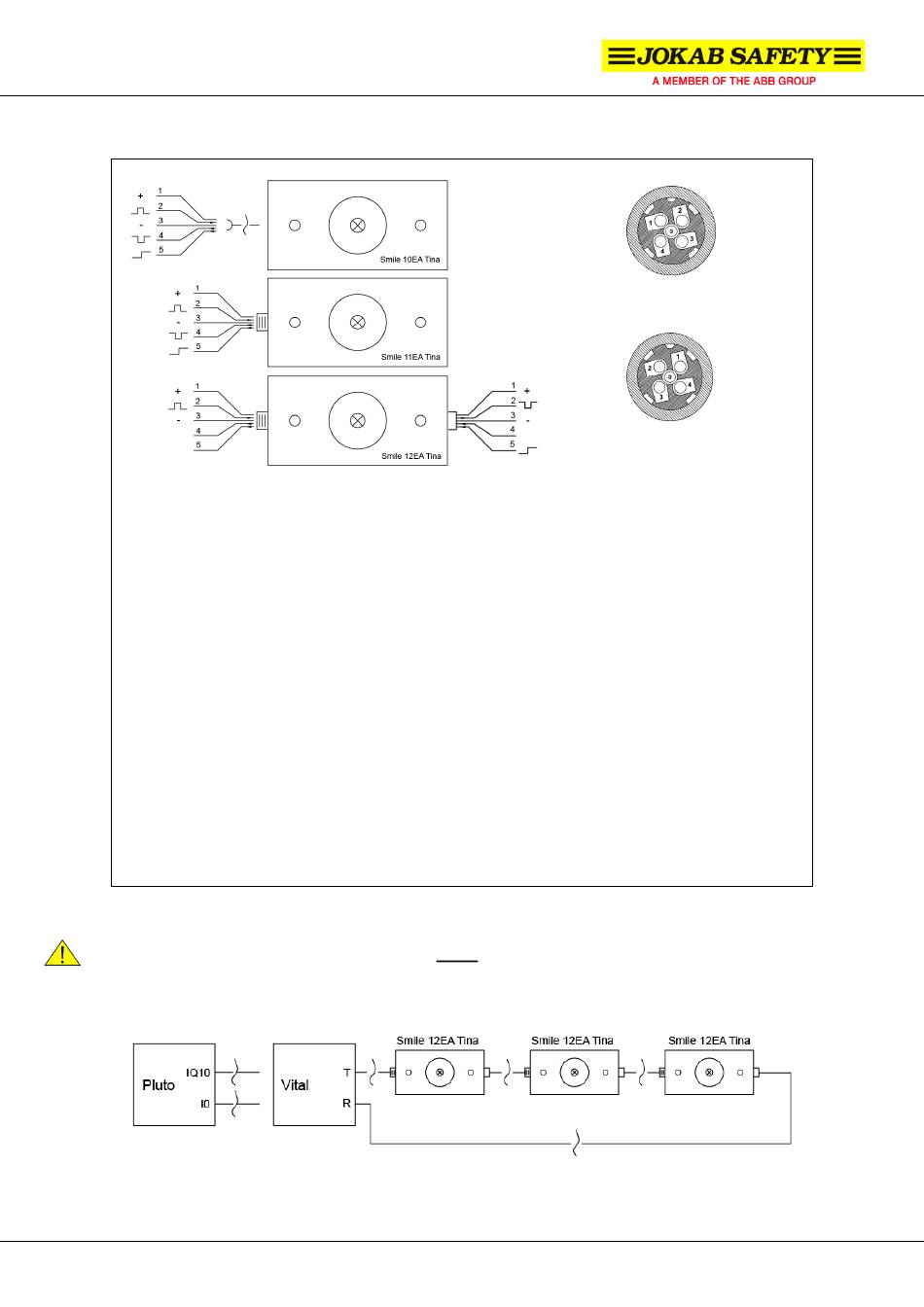

3 Connections

Smile 10EA Tina
5-pole wired:
(1) Brown: +24 VDC
(2) White: Dynamic signal input
(3) Blue: 0 VDC
(4) Black: Dynamic signal output
(5) Grey: Information
Smile 11EA Tina
M12 5-pole male:
(1) Brown: +24 VDC
(2) White: Dynamic signal input
(3) Blue: 0 VDC
(4) Black: Dynamic signal output
(5) Grey: Information
NB: Shielded cable is recommended between this unit and the rest of the safety circuits.
Warning! The information channel output shall never be used for the safety purpose(s).

Connection examples

Connection example – Three Smile 12EA Tina connected in series to Vital control device or Pluto safety PLC
Smile_Tina_Manual_(English)_v1A
2010-10-19
M12 5-pole male seen
from cable side
M12 5-pole female seen
from cable side
Smile 12EA Tina
M12 5-pole male (input):
(1) Brown: +24 VDC
(2) White: Dynamic signal input
(3) Blue: 0 VDC
(4) Black: -
(5) Grey: -
M12 5-pole female (output):
(1) Brown: +24 VDC
(2) White: Dynamic signal output
(3) Blue: 0 VDC
(4) Black: -
(5) Grey: Information
