1 Introduction Scope The purpose of these instructions is to describe the emergency stop Smile Tina and to provide the necessary information required for installation and operation. Audience This document is intended for authorized installation personnel. Prerequisites It is assumed that the reader of this document has knowledge of the following: •...

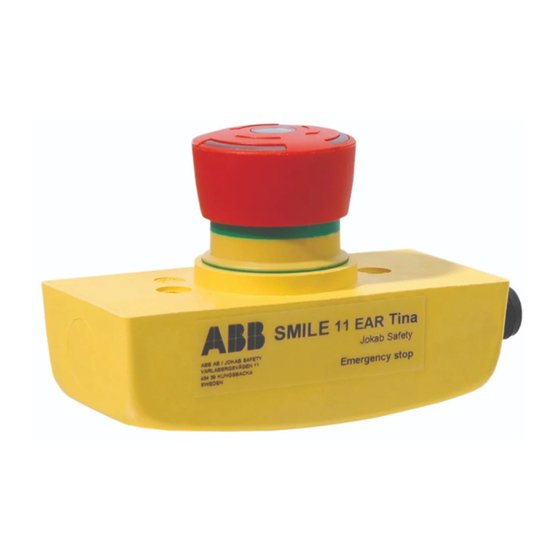

2 Overview General description In order to fulfil the need for a small and easy to install E-stop, Smile Tina has been developed. The size of the device makes it possible to be installed wherever needed. With M12 connections or cable and centralized mounting holes.
3 Connections M12 5-pole male seen from cable side M12 5-pole female seen from cable side Smile 10EA Tina Smile 12EA Tina 5-pole wired: M12 5-pole male (input): Brown: +24 VDC Brown: +24 VDC White: Dynamic signal input White: Dynamic signal input Blue: 0 VDC Blue:...
Page 6
Connection example – Three Smile 11EA Tina connected in series to Vital control device or Pluto safety PLC through connection terminals in the electrical cabinet Connection example – Three Smile 11EA Tina and one Eden connected in series to Vital control device or Pluto safety PLC through the connection block Tina 4A More connection examples can be found at www.jokabsafety.com or in the Safety Handbook.
4 Installation and maintenance Installation precautions First mount Smile Tina to the surface with two M5 bolts, and then attach the M12 connection(s). Warning! All the safety functions must be tested before starting up the system. Maintenance Warning! The safety functions and the mechanics shall be tested regularly, at least once every year to confirm that all the safety functions are working properly (EN 62061:2005).
5 Operation LED indication Indication Description Input signal on pin-2 Safety circuit closed Green Dynamic signal in (protection OK) Safety circuit open LED on Tina Green-Red (flash) No dynamic signal in or 0 VDC in (protection OK) Safety circuit interrupted +24 VDC in or safety circuit (protection open) interrupted...
6 Model overview Type Article number Description Smile 11EA Tina 30-050-00 E-stop, red button, M12 5-pole male Smile 11EAR Tina 30-050-01 E-stop, red button, M12 5-pole male, reversed Smile 12EA Tina 30-050-02 E-stop, red button, M12 5-pole male, M12 5-pole female E-stop, red button, M12 5-pole male, M12 5-pole female, Smile 12EAR Tina 30-050-03...
7 Technical data Manufacturer Address JOKAB SAFETY AB Varlabergsvägen 11 S-434 91 Kungsbacka Sweden Power supply Operating voltage 24 VDC +15 %, -25 % Total current consumption 47 mA (57 mA with max information output) Information output: Max 10 mA Time delay t (in/out) t <...
8 EC Declaration of conformity EC Declaration of conformity (according to 2006/42/EC, Annex2A) JOKAB SAFETY AB declare that the safety components of JOKAB SAFETY make with type designations Boplatsgatan 3 and safety functions as listed below, is in conformity with the Directives SE-213 76 Malmö...
